Key Specifications

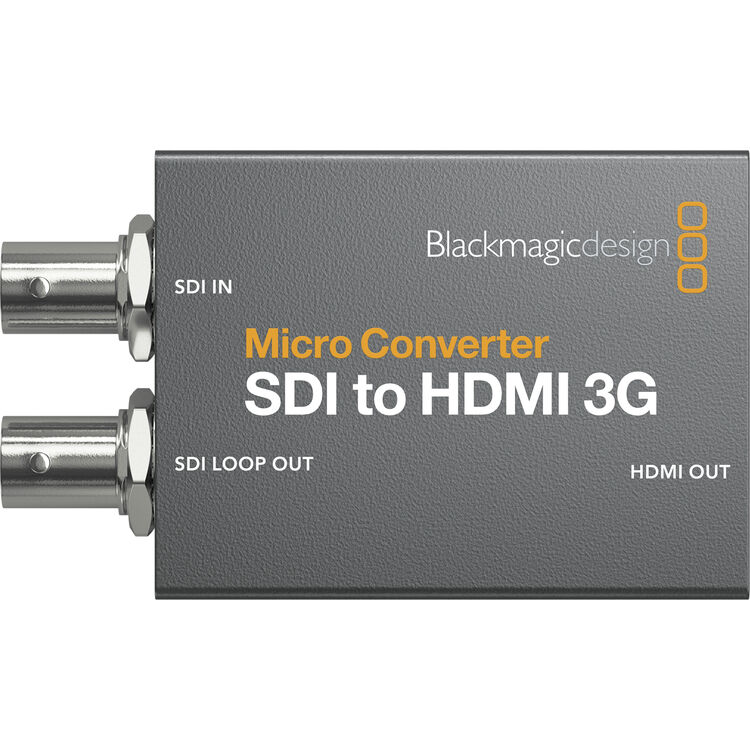

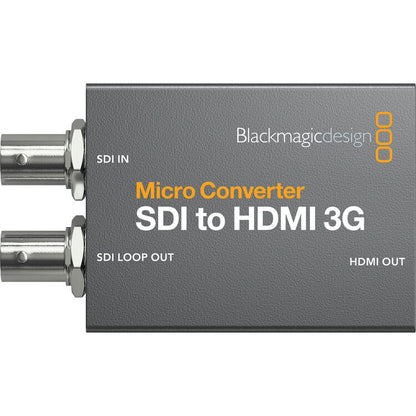

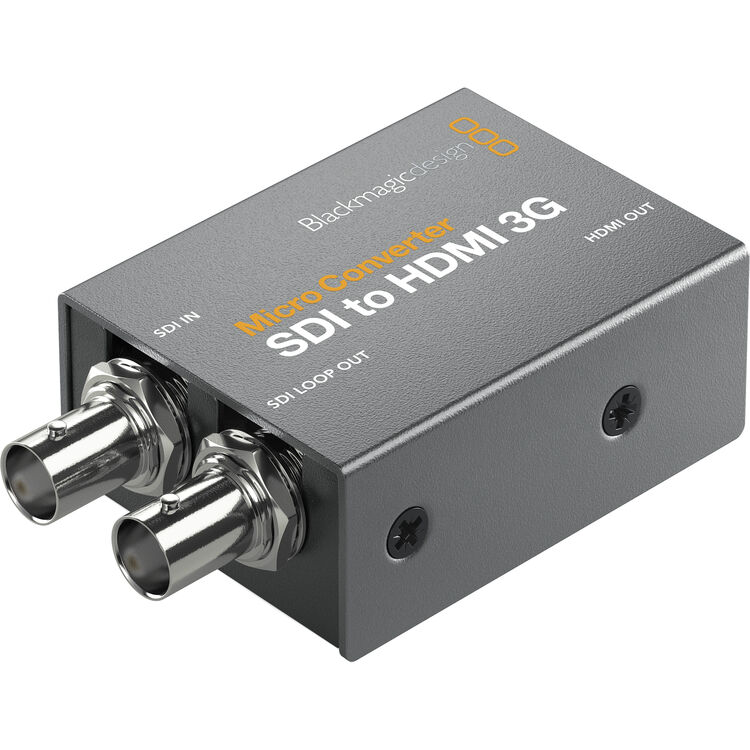

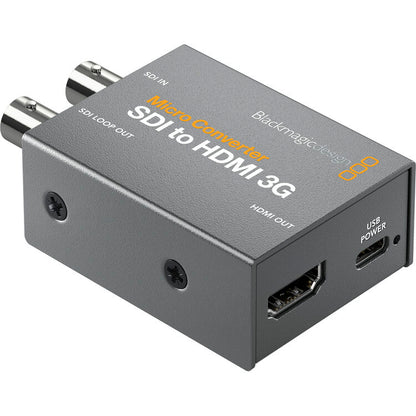

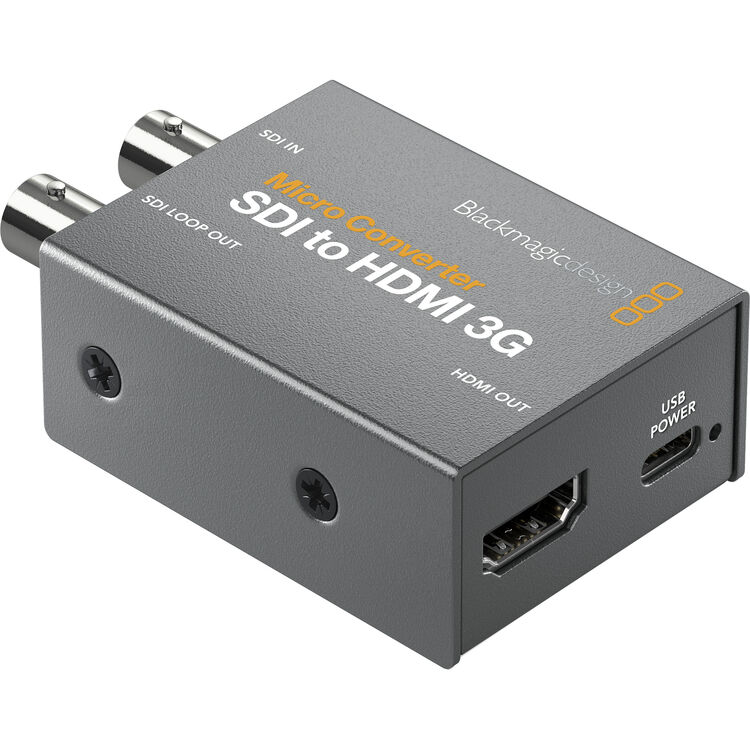

Video I/O

1× BNC (3G-SDI) Input
1× BNC (3G-SDI) Loop Output
1× HDMI 2.0 Output

Video Resolution (BNC Input)

2048×1080 at 23.98–60 fps
2048×1080PsF at 25/29.97/30 fps
1920×1080p at 23.98–60 fps
1920×1080PsF at 25/29.97/30 fps
1920×1080i at 50/59.94/60 fps
1280×720 at 50/59.94/60 fps
768×576i at 50 fps
720×480i at 59.94 fps

Video Resolution (SDI Output)

2048×1080 at 23.98–60 fps
2048×1080PsF at 25/29.97/30 fps
1920×1080p at 23.98–60 fps
1920×1080PsF at 25/29.97/30 fps
1920×1080i at 50/59.94/60 fps
1280×720 at 50/59.94/60 fps
768×576i at 25 fps
720×480i at 29.97 fps

Video Resolution (HDMI Output)

1920×1080p at 23.98–60 fps
1920×1080i at 50/59.94/60 fps
1280×720 at 50/59.94/60 fps
768×576i at 25 fps
720×480i at 29.97 fps

Broadcast System Compatibility

NTSC, PAL

Embedded Audio

HDMI / SDI

Reclocking

No

Video Standard Compliance

SMPTE 259M, 292M, 296M, 424M, 425M-A, 425M-B

HDCP Support

Yes (Version 2.2)

Wireless

No

OS Compatibility

macOS 10.14.15 or Later
Windows 10

Interface & Connectivity

USB-C

1× USB-C (Input/Output)

Expansion Slots

None

Power

Power Input

1× USB-C (4.4–5.2 VDC)

Power Consumption

2.5 W

General

Operating Conditions

32–104°F / 0–40°C, up to 90% Humidity

Storage Conditions

-4–140°F / -20–60°C

Dimensions (W × H × D)

3.01 × 1.8 × 0.98" / 76.45 × 45.7 × 24.89 mm

Weight

5.29 oz / 150 g

Packaging Info

Package Weight

0.345 lb

Box Dimensions (L×W×H)

3 × 1.9 × 1.1"
