Key Specifications

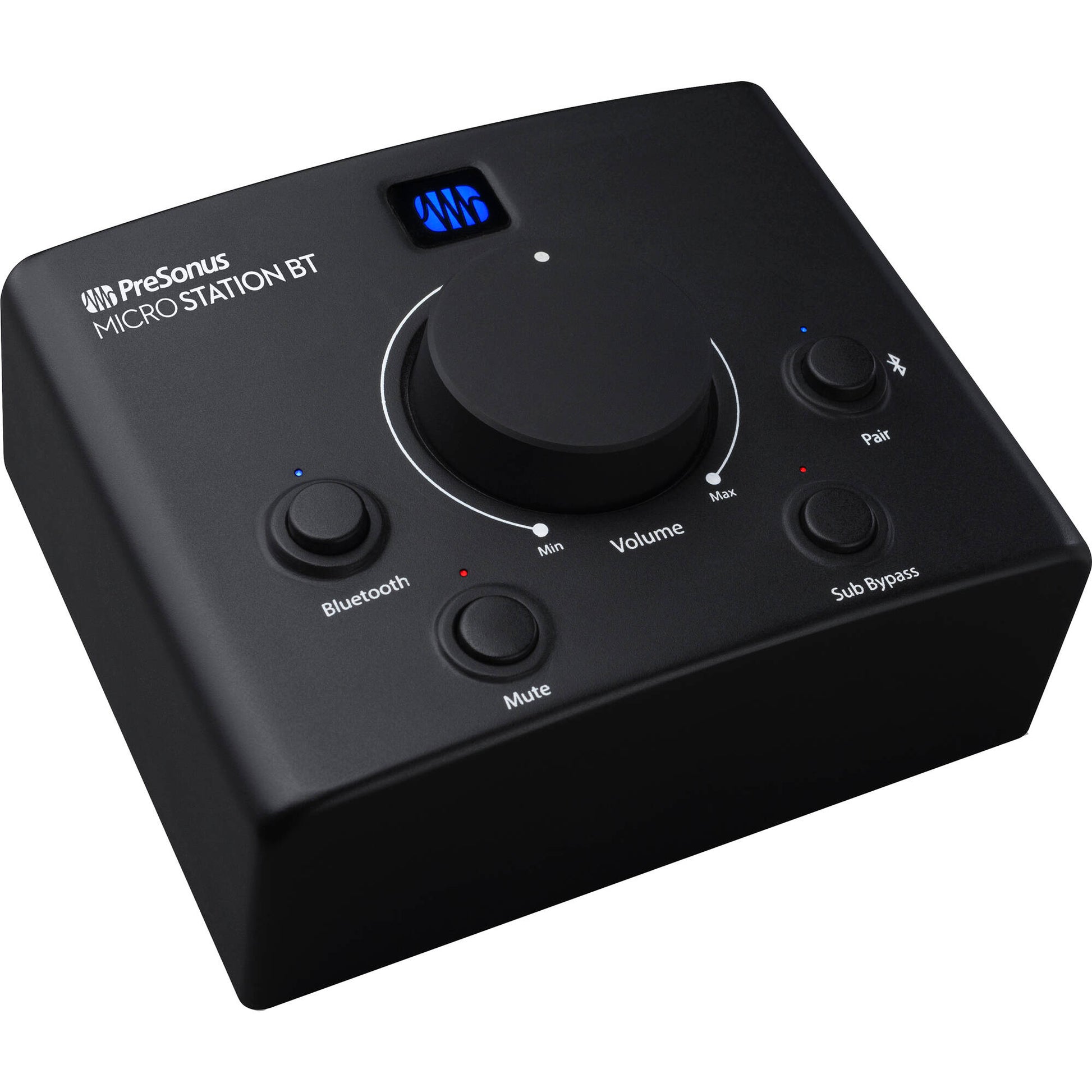

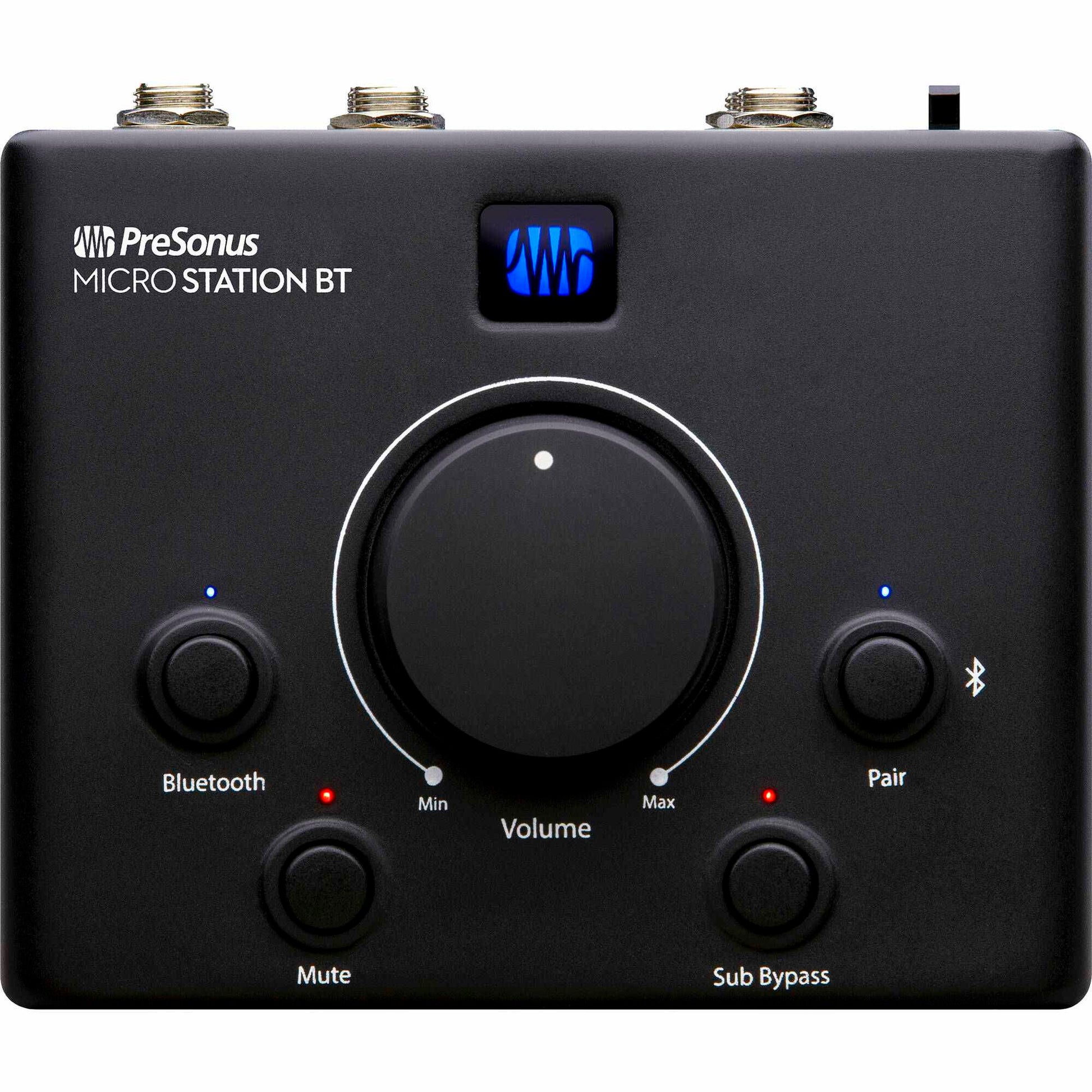

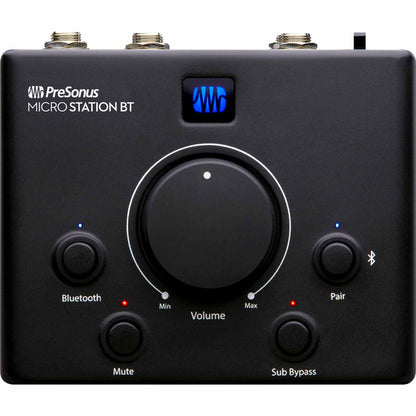

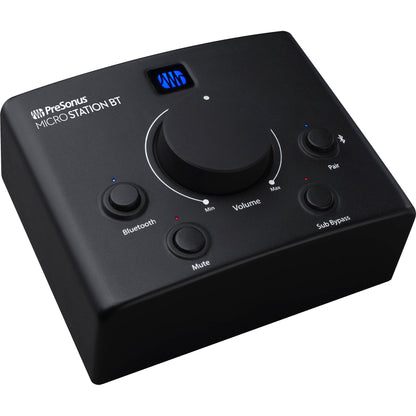

Front / Top Controls

On/Off Switch
Bluetooth Button
Mute Button
Pair Button
Sub Bypass Button
Volume Knob

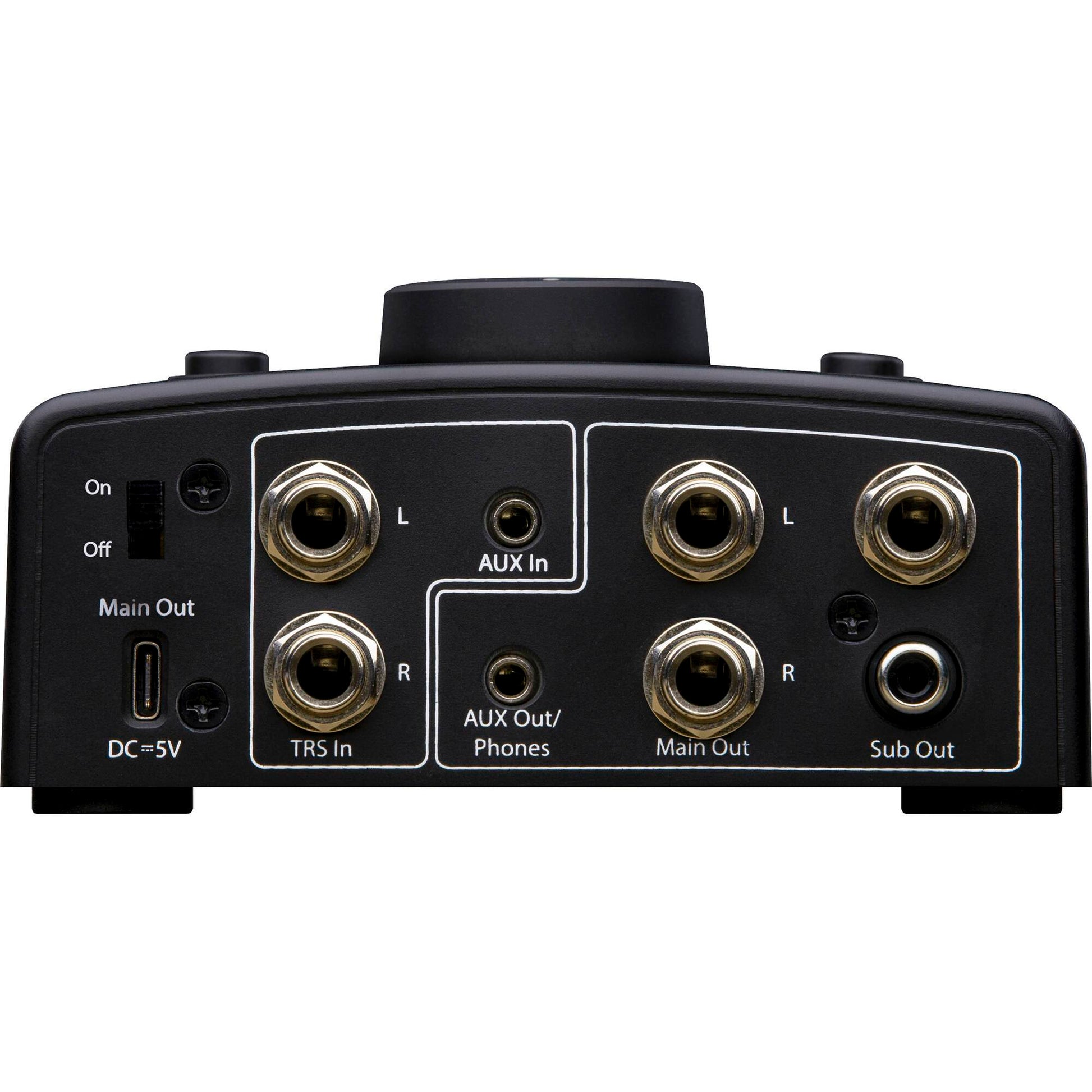

Connectivity

Analog Inputs

2 x 1/4" TRS Inputs
1 x 3.5 mm TRS Aux Input

Analog Outputs

2 x 1/4" TRS Outputs
1 x 3.5 mm Aux / Phones Output
1 x 1/4" TRS Sub Output
1 x RCA Unbalanced Sub Output

Performance

Frequency Response

System Wide: 20 Hz to 20 kHz
Subwoofer Out: 20 to 200 Hz
Bluetooth: 10 Hz to 65 kHz (±0.5 dB)

Dynamic Range

108 dB (Main Inputs, Auxiliary Input)

THD + N

Main L/R Inputs: 0.001%
Auxiliary Input: < 0.01%
Main Output: < 0.02%
Headphone Output: < 0.50%
Aux Output: 0.001%
Subwoofer Output: 0.002%

S/N Ratio

Main L/R Inputs: > 102 dB
Main Output: > 98 dB
Subwoofer Output: > 102 dB

Power

Power Requirement

Powered Through USB Connection
USB-C to USB-A Cable Provided
Wall Charger Available Separately

Physical

Dimensions

4.9 x 3.9 x 2.2" / 125 x 100 x 56 mm

Weight

1 lb / 450 g

Packaging Info

Package Weight

1.165 lb

Box Dimensions (L x W x H)

6.6 x 5.5 x 3.5"
