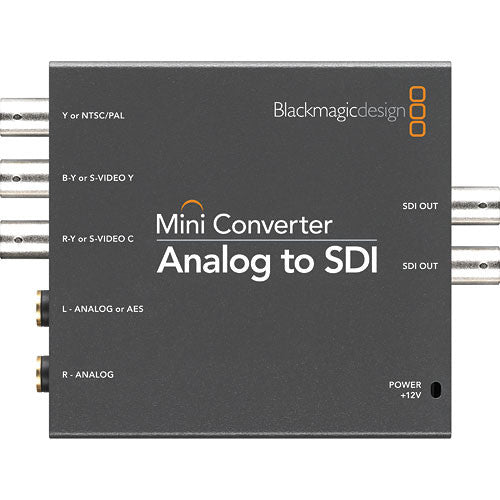

The Mini Converter Analog to SDI from Blackmagic will accept an HD/SD component, NTSC, PAL, or S-video signal and convert it to an SDI output. You can also choose to embed SDI audio from balanced AES/EBU or analog audio inputs. Use this device to convert video from Betacam SP, VHS, set-top boxes, HDV cameras, and other similar devices.
Analog to SDI ConversionUse this device to convert analog video sources to SDI video output.Embedded AudioThis unit can embed SDI audio from balanced AES/EBU or analog audio inputs.
BLACKMAGICDESIGN Mini Converter - Analog to SDI 2
Key Specifications
Video I/O
Input: 1x component, NTSC, PAL, and S-video via 3x BNCs
Output: 2x SDI (switchable between SD, HD & 3Gbs SDI)
Audio I/O
Analog: 2x channels professional balanced analog (1/4" jack)
Digital: 2x channels professional balanced digital (1/4" jack, AES/EBU standard)
Note: Audio inputs are shared
Power
12VDC
Physical
Dimensions: Not specified by manufacturer
Weight: Not specified by manufacturer
Packaging Info
Package Weight: 1.12 lb
Box Dimensions (LxWxH): 5.75 x 5.5 x 2.65"
