Key Specifications

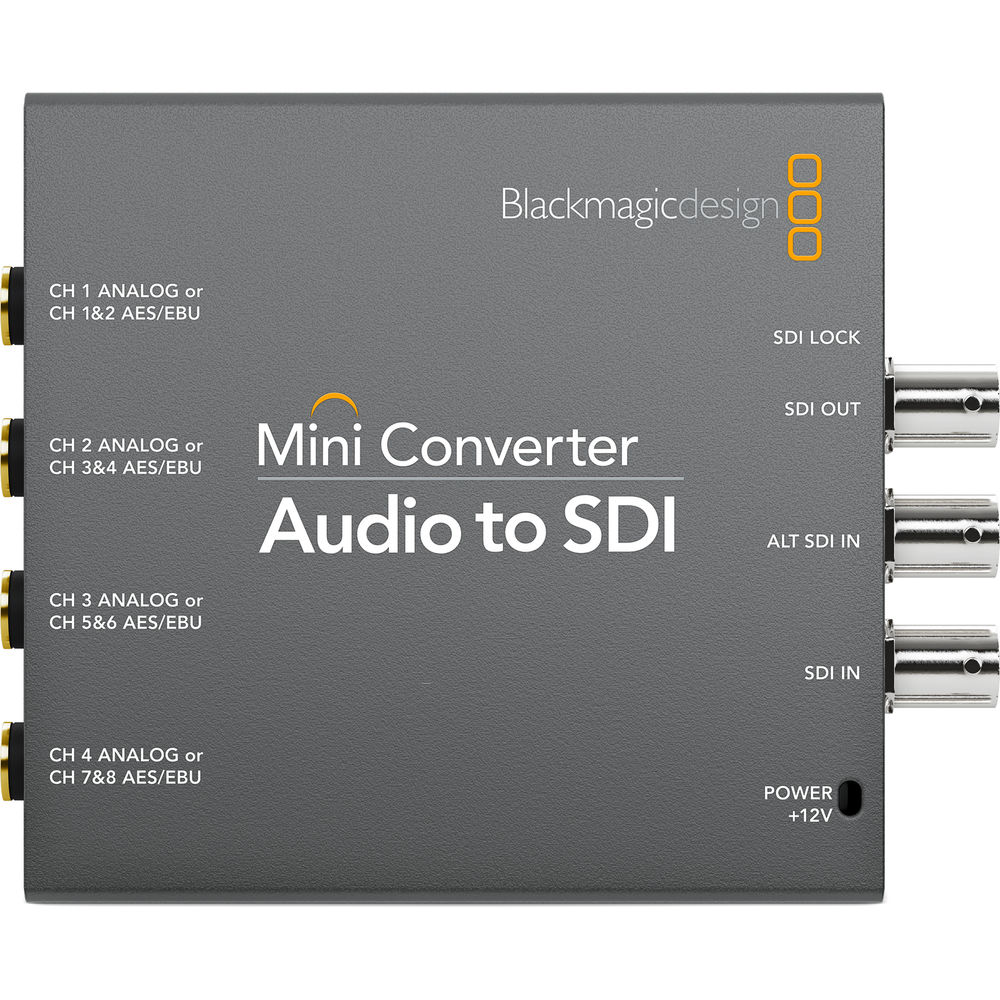

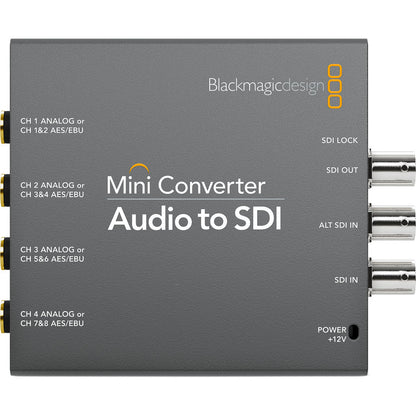

Video & Audio I/O

• SDI Input: 1x BNC (3G/HD/SD switchable), with 1x redundant input
• SDI Output: 1x BNC (3G/HD/SD switchable)
• Audio Input: 4x 1/4" jacks (4 channels analog or 8 channels AES/EBU digital)

Video Standards

• Compliance: SMPTE 292M, 259M, 296M, 372M, 424M-B, 425M; ITU-R BT.656, BT.601
• Reclocking: Yes
• Auto-Switching: Automatically detects 3G/2K/HD/SD-SDI
• Video Sampling: 4:2:2, 4:4:4
• Color Precision & Space: 4:2:2, 4:4:4 YUV, RGB

Supported Formats

• 1080p up to 60 fps
• 1080PsF/i up to 60 fps
• 720p up to 60 fps
• SD (525i NTSC, 625i PAL)
• 2K DCI 25/24/23.98p/PsF

General & Power

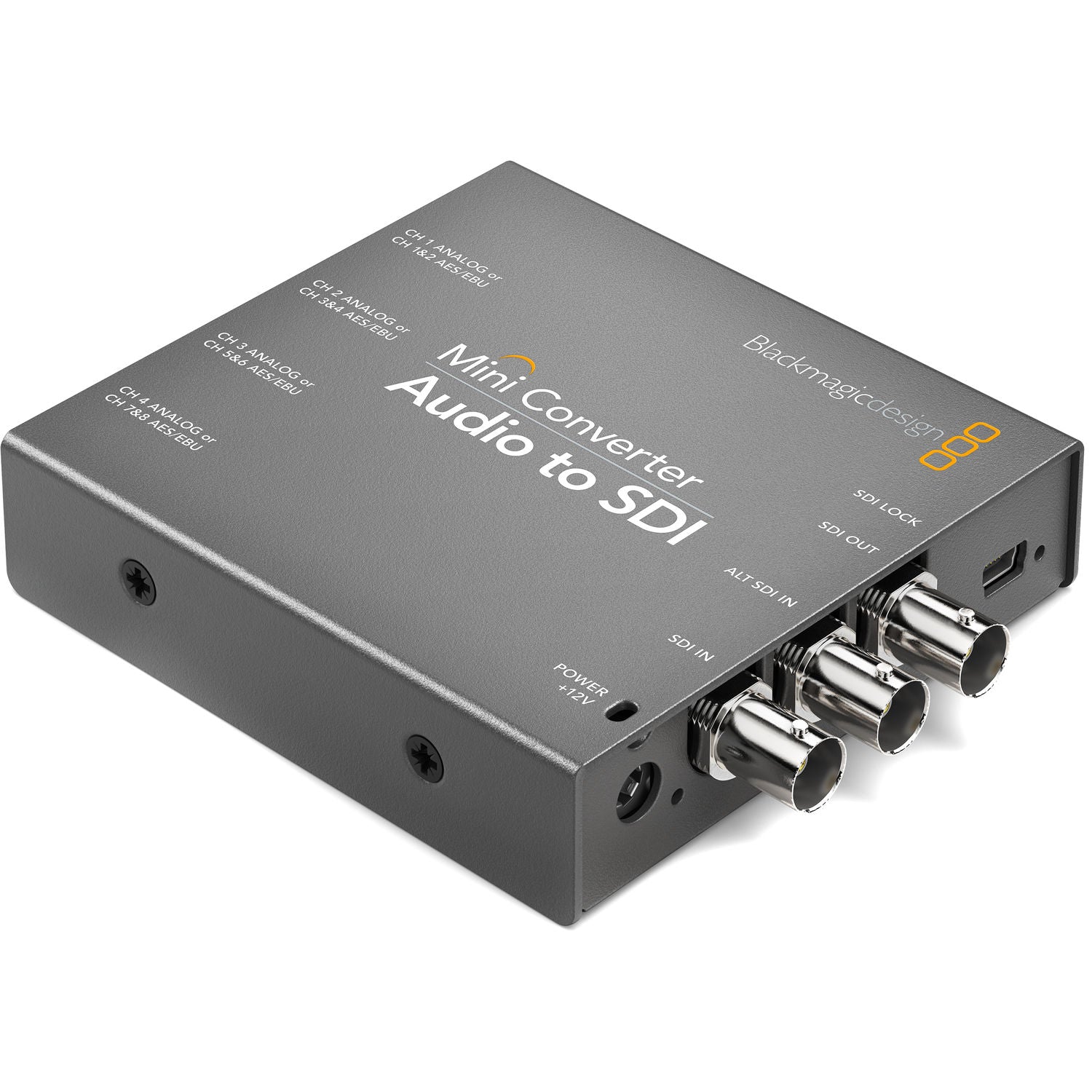

• Dimensions: 4.5 x 3.6 x 0.9" / 11.5 x 9.2 x 2.3 cm
• Weight: 7.6 oz / 215 g
• Power: +12 VDC (8.4 W consumption)

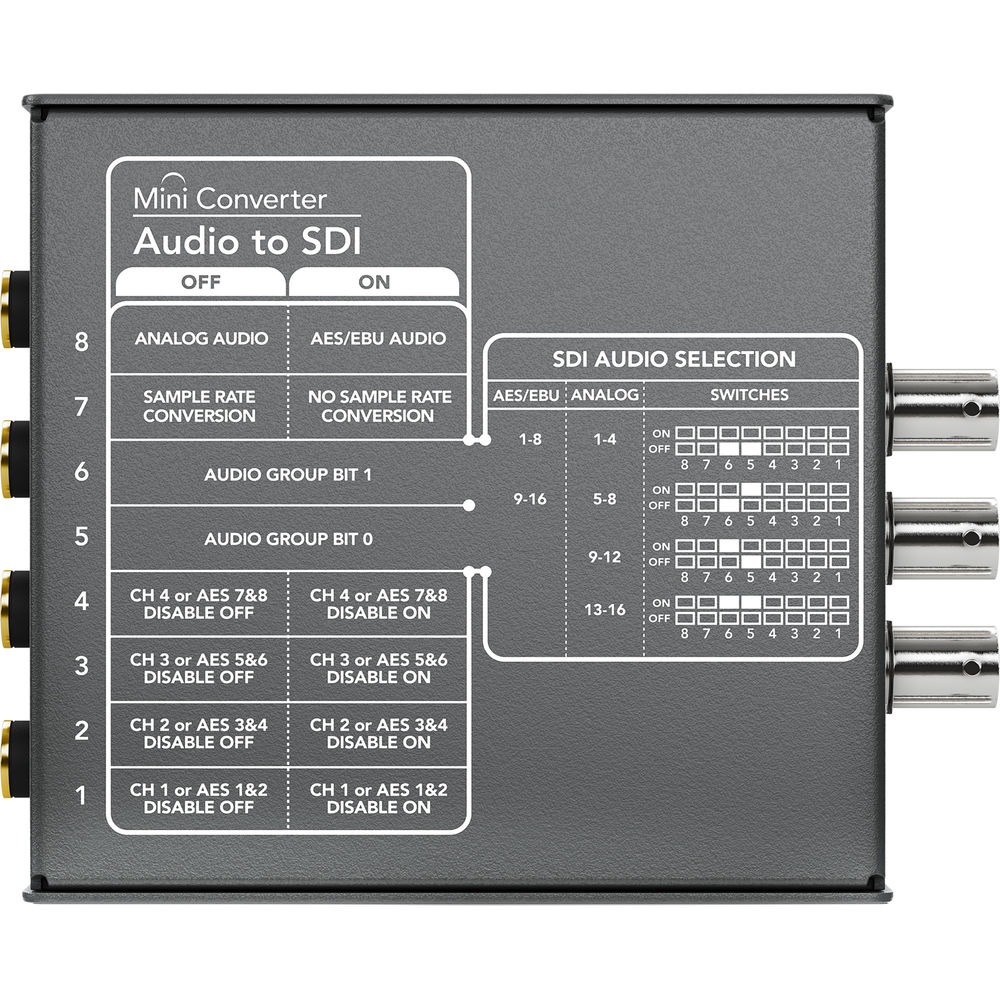

• Control: Mini switches or USB software
• OS Supported: Mac OS X 10.11+, Windows 8.1+

Environmental

• Operating Temp: 32 to 104°F / 0 to 40°C
• Storage Temp: -4 to 113°F / -20 to 45°C
