Key Specifications

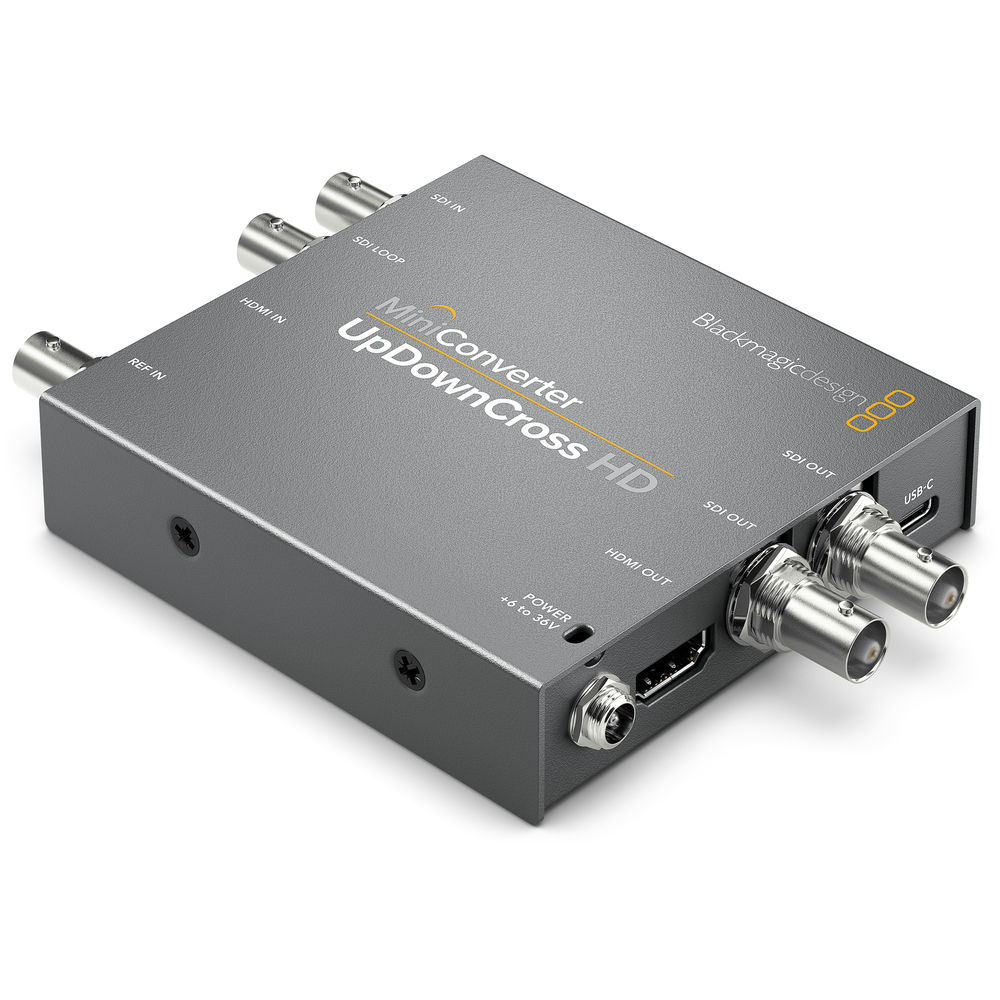

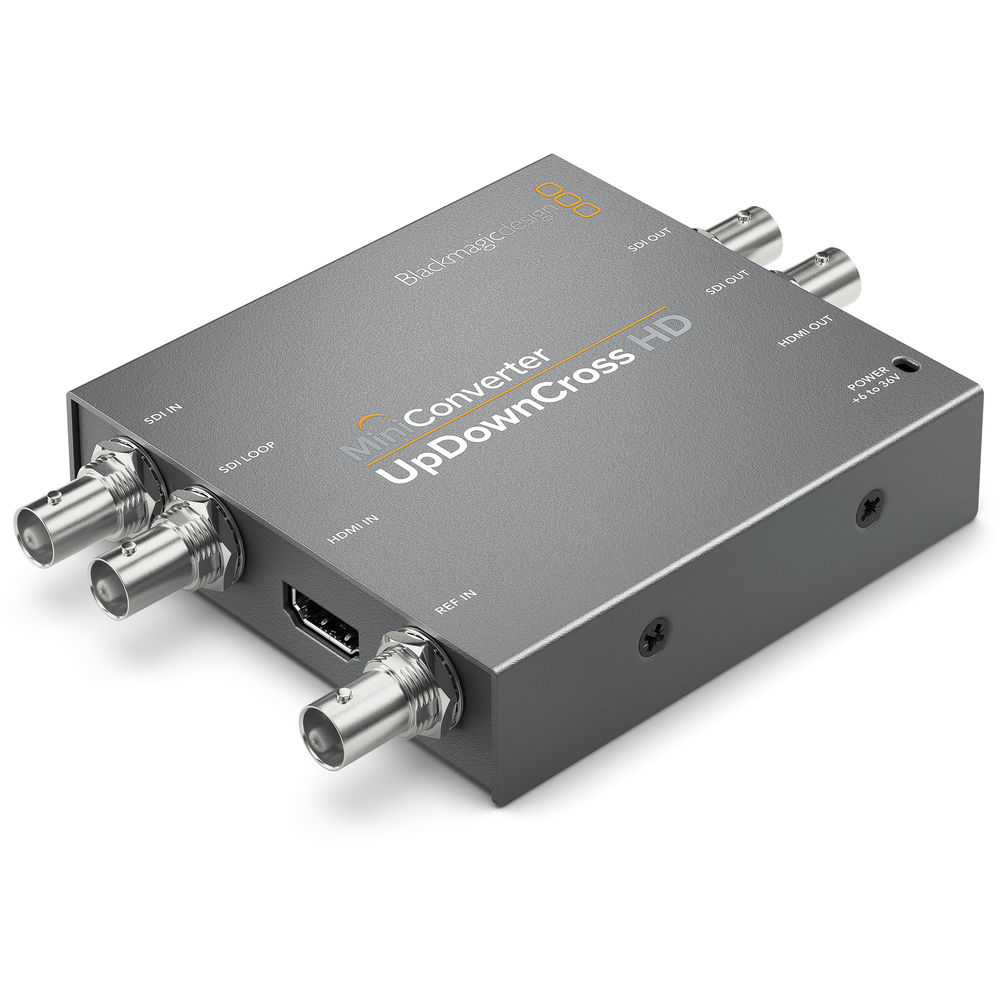

Connections

• Video Input: 1 x 3G/HD/SD-SDI (BNC), 1 x HDMI (Type A)
• Video Output: 2 x 3G/HD/SD-SDI (BNC), 1 x Loop-Through Out (BNC), 1 x HDMI (Type A)
• Reference Input: 1 x BNC (Black Burst & Tri-Level Sync)

Features & Standards

• Reclocking: Yes
• SDI Compliance: SMPTE 424M-B/296M/292M/259M, ITU-R BT.656/BT.601
• Video Sampling & Color: 4:2:2, YUV
• Audio Sampling: 48 kHz, 24-bit

Supported Formats

• SDI & HDMI:
  • 1080p: 60/59.94/50/30/29.97/25/24/23.98
  • 1080PsF: 24/23.98
  • 1080i: 60/59.94/50
  • 720p: 60/59.94/50
  • NTSC SD: 525i 59.94, PAL SD: 625i 50
• DVI Resolutions (via HDMI):
  • 1024 x 768, 800 x 600, 640 x 480

Power & Physical

• Power Supply: 12 VDC (6 to 36 VDC operational)
• Power Consumption: 5 W
• Dimensions: 5.32 x 3.63 x 0.9" / 13.5 x 9.2 x 2.3 cm
• Weight: 8.7 oz / 247 g

Environmental

• Operating Temp: 32 to 104°F / 0 to 40°C
• Humidity: 0 to 90%, non-condensing
