Key Specifications

Number of Analog Input Channels

12 (4 Mono / 4 Stereo)

Number of Mic Preamps

4

Analog Output Channels

1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Mono FX Send Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output

Mix Routing

Stereo FX Send / Stereo Main Mix

EQ

3-Band EQ

Built-In Effects

Yes

Wireless

No

Rack Mountable

No

Mixer

Number of Analog Input Channels

12 (4 Mono / 4 Stereo)

Number of Mic Preamps

4

Analog Output Channels

1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Mono FX Send Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output

Mix Routing

Stereo FX Send / Stereo Main Mix

Faders & Level Adjustment

8x Channel Knob
1x Master Fader
1x FX Knob

Meters

Main Meter:
1x 4-Segment LED

Signal Processing

Gain/Trim Range

-10 Up to +4 dB

Dynamic Processing

No

Sidechain Filters

No

EQ

3-Band EQ

EQ Parameters

High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)

Graphic EQ

Yes

Filters

Low-Pass: 75 Hz, 18 dB/Octave

Solo/Mute

No

Built-In Effects

Yes

Performance

Frequency Response

Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)

Max Input Level

XLR Mic Input:
+19 dBu
Line Input:
+21 dBu

I/O Impedance

Mic Input:
3.8 Kilohms

Line Input:
≥ 10 Kilohms

Tape Output:
1 Kilohms

Headphone Output:
22 Ohms

Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)

Crosstalk

Input to Output:
-85 dB at 1 kHz (20 Hz to 20 kHz)
Master Fader Off:
-75 dB at 1 kHz

CMRR

> -70 dB at Max Gain (1 kHz, Mic In to Insert Send Out)

EIN

-122 dBu at Max Gain

Noise Floor

All Outputs:
-100 dBu (Master Level at -∞, Channel Levels at -∞)
-90 dBu (Master Level at Unity, Channel Levels at -∞)
-85 dBu (Master Level at Unity, One Channel Level at Unity)

THD+N

Mic Input to Main Output:
< 0.25% (+4 dBu)

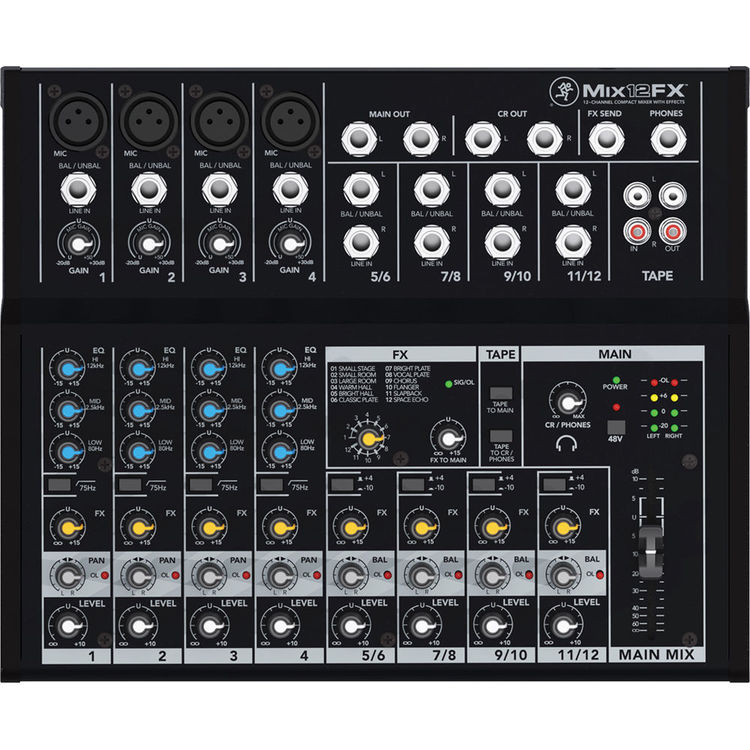

Connectivity

Analog Inputs

4x XLR 3-Pin Balanced/Unbalanced Mic Input
4x 1/4" TRS Balanced/Unbalanced Line Input
8x 1/4" TRS Balanced/Unbalanced Stereo Line Input (4 Stereo Pairs)
1x Stereo RCA Coaxial Unbalanced Stereo Tape Input (1 Stereo Pair)

Analog Outputs

2x 1/4" TRS Stereo Main Output (1 Stereo Pair)
2x 1/4" TRS Stereo Control Room Output (1 Stereo Pair)
1x 1/4" TRS Stereo Output
1x 1/4" Alt Send
1x Stereo RCA Coaxial Unbalanced Stereo Tape Output (1 Stereo Pair)

Phantom Power

No

Digital I/O

No

Wireless

No

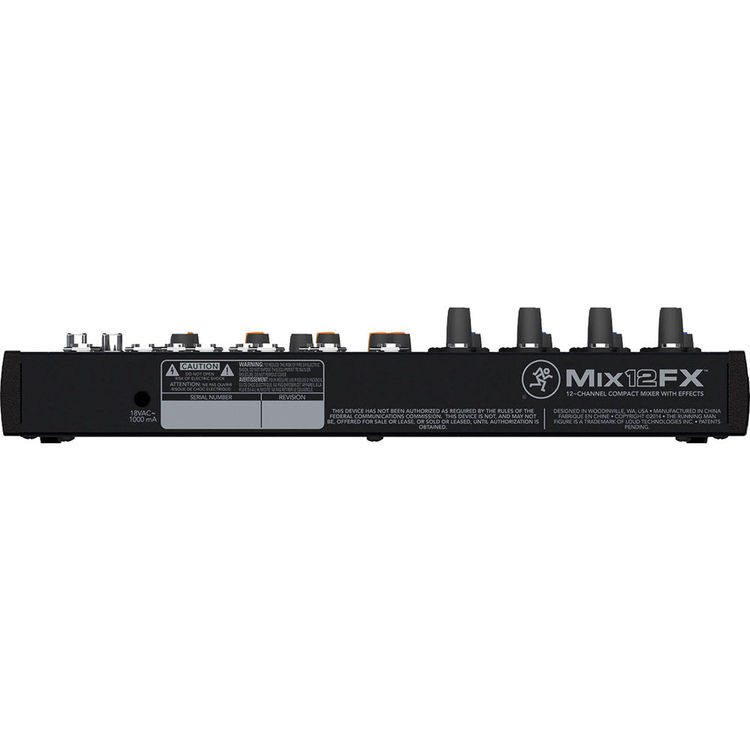

Power

AC Input Power

120 VAC, 60 Hz
230 VAC, 50 / 60 Hz

Power Supply Output

18 VAC at 1000 mA

Physical

Rack Mountable

No

Dimensions

2.1 x 11.7 x 9.6" / 53 x 297 x 244 mm

Weight

3.7 lb / 1.7 kg

Packaging Info

Package Weight

4.7 lb

Box Dimensions (LxWxH)

14.5 x 13.2 x 3.4"
