Key Specifications

Product Model

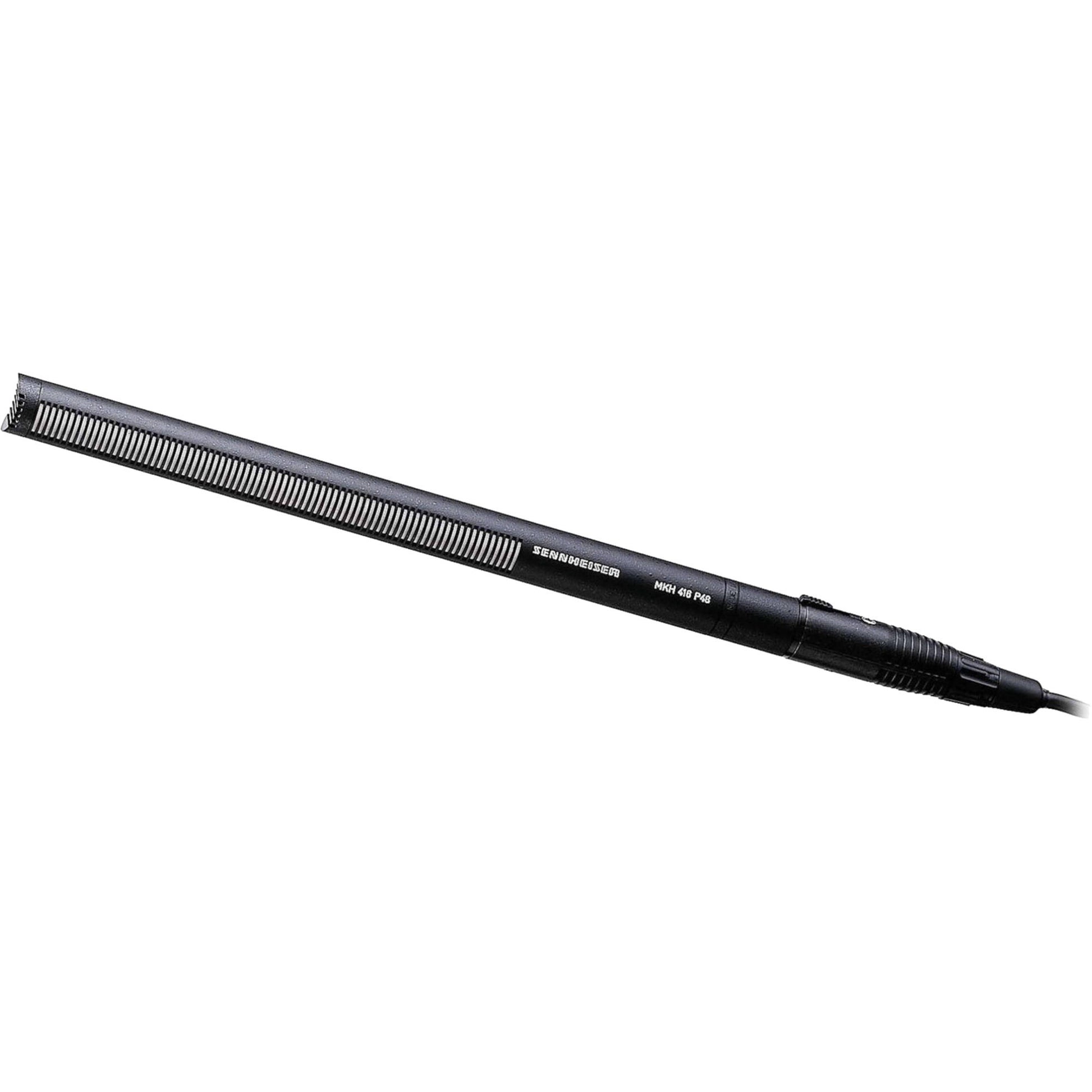

Sennheiser MKH 416-P48U3

Product Type

• Professional Short Shotgun Microphone
• Profile: Industry Standard for Film, TV & Voiceover

Acoustic Performance

Transducer Details

• Element Type: RF Condenser
• Polar Pattern: Supercardioid / Lobar
• Frequency Response: 40 Hz to 20 kHz
• Max SPL: 130 dB

Technical Specifications

Audio Signal Integrity

• Sensitivity: 25 mV/Pa ± 1 dB (at 1 kHz)
• Equivalent Noise: 13 dB (A-Weighted) / 24 dB (CCIR)
• High Humidity Resistance: Yes (RF Design)
• Power: 48V ± 4V Phantom Power

Physical Build & Dimensions

Structural Details

• Finish: Matte Black
• Dimensions: ø 0.75 x L 9.84" / ø 19 x L 250 mm
• Net Weight: 6.17 oz / 175 g
• Connector: 1x XLR 3-Pin Male

Physical Specifications

Mounting & Handling

• Off-Axis Rejection: 20 dB at 120° / 15 dB at 180°
• Mounting Thread: 5/8"-27 Female
• Package Weight: 1.685 lb
