MMU 3100

Input to connect up to 80 microphone sets with volume and voice EQ controls
Additional universal input on both XLR and removable screw terminals for lectern microphone or interview microphone or other sources with volume and voice EQ controls
Phantom power available
Input and outputs connections to an external recorder/player device, PLAY / REC selector switches with LED indicators. Volume control and tone EQ on PLAY-OUT
Teleconference dedicated input and output
Sound reinforcement and recording system output
Built-in power amplifier to feed the consoles speakers with volume selector
Built-in 80W power amplifier output with volume control for additional constant voltage sound reinforcement speakers

₱69,000.00 VAT INC.

₱69,000.00

UNIT: PIECE/S

Product Code: SKU:RCF-MMU3100-CHN-391

Input to connect up to 80 microphone sets with volume and voice EQ controls
Additional universal input on both XLR and removable screw terminals for lectern microphone or interview microphone or other sources with volume and voice EQ controls
Phantom power available
Input and outputs connections to an external recorder/player device, PLAY / REC selector switches with LED indicators. Volume control and tone EQ on PLAY-OUT
Teleconference dedicated input and output
Sound reinforcement and recording system output
Built-in power amplifier to feed the consoles speakers with volume selector
Built-in 80W power amplifier output with volume control for additional constant voltage sound reinforcement speakers

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

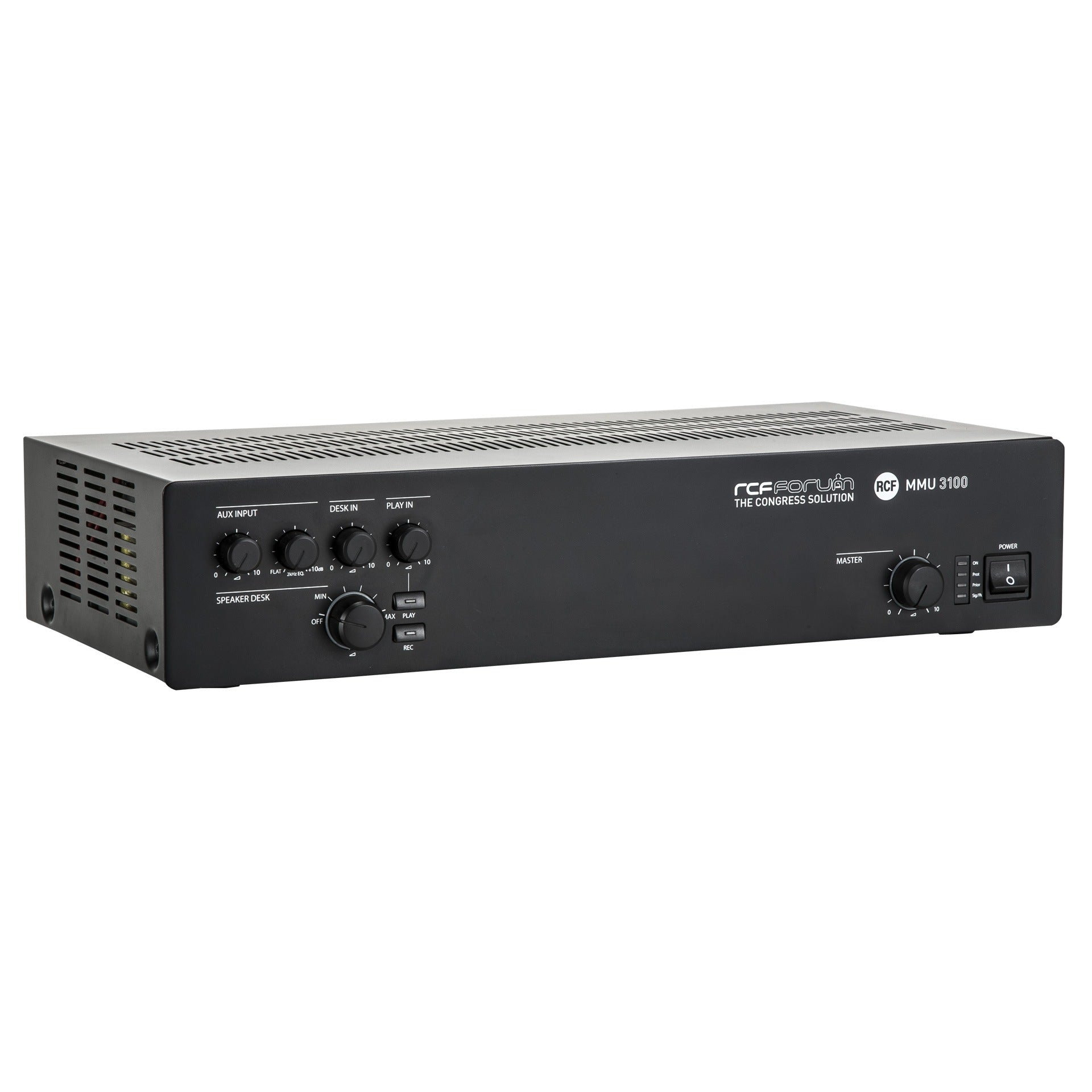

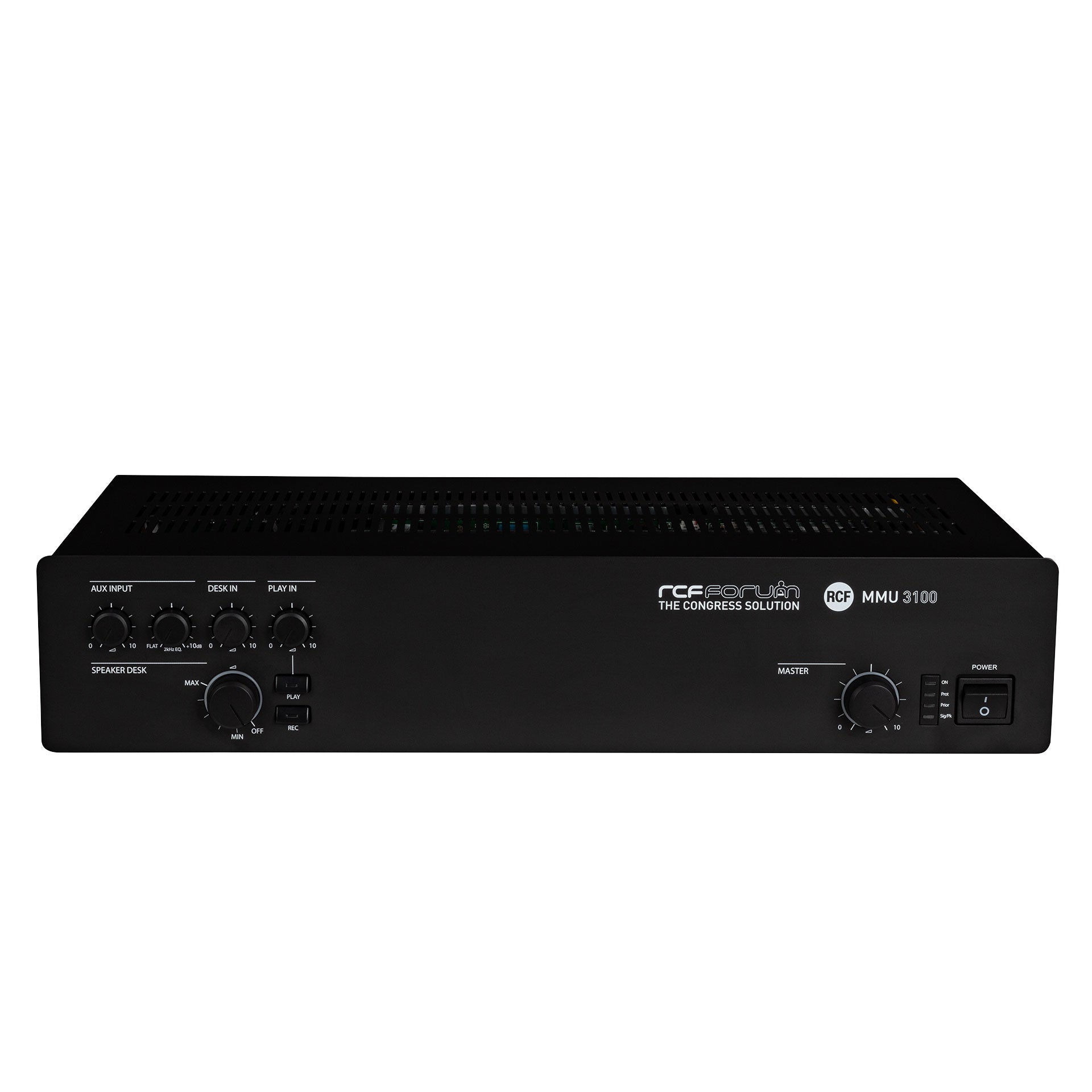

RCF MMU 3100

Key Specifications
Built-in Power Amplifier	Yes (160 W RMS)
Max Number of Consoles	60 (standard) / up to 180 (expanded)
Number of Console Buses	2 (expandable to 6 with DEC 6104 board)
Amplifier Specifications
Amplifier Class / Output Power	Class-D / 160 W RMS @ 100 V
Frequency Response (-3 dB)	50 Hz - 18000 Hz
Signal-to-Noise Ratio (A-weighted)	> 80 dB
Distortion (THD+N) @ 1 kHz	< 1%

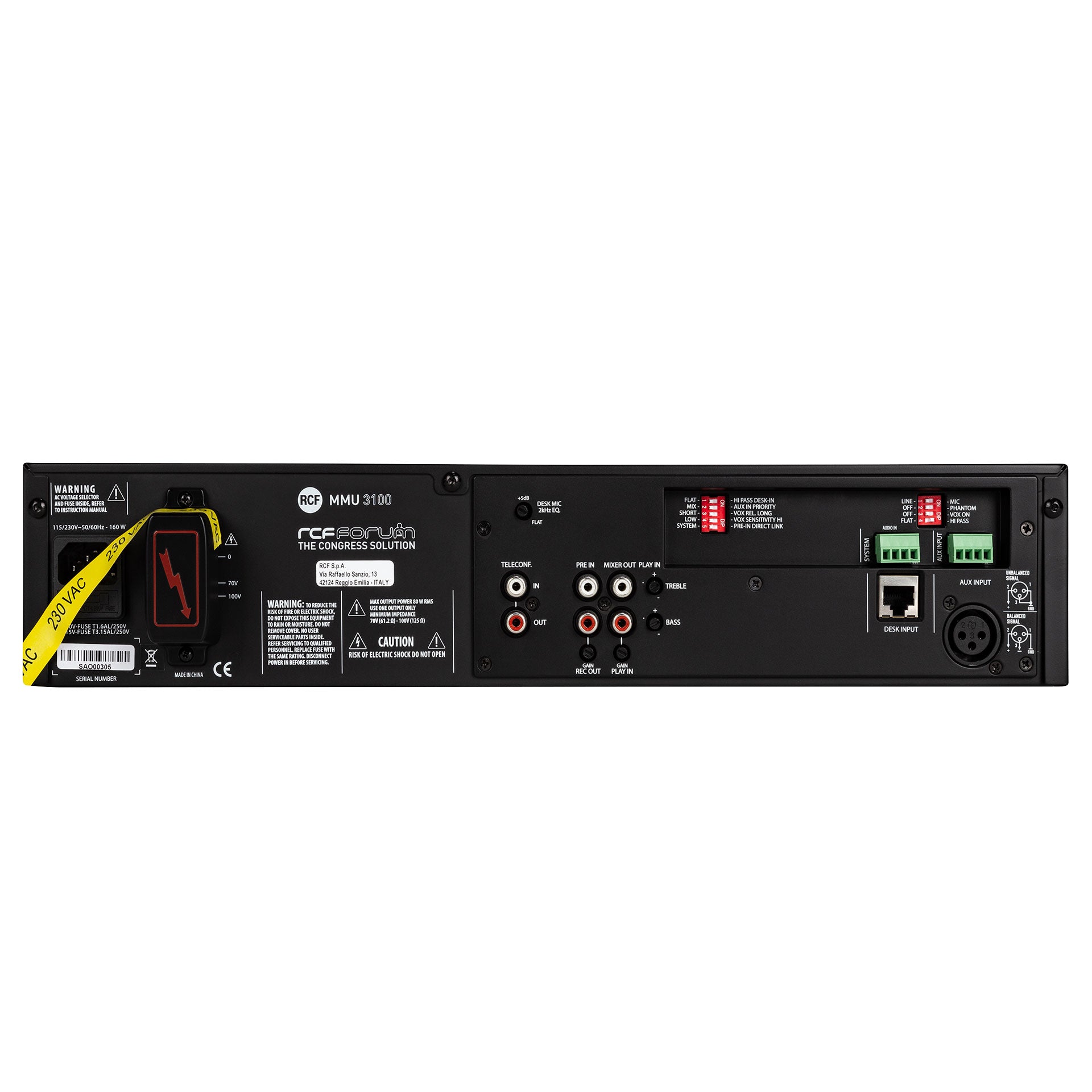

Input & Output Section
Total Number of Inputs	7 (3 Balanced, 5 Unbalanced)
Mic+Line Inputs	4 (Euroblock, XLR) with 32 V DC Phantom
Signal Outputs	3 (RCA)
Paging / GPI	1 Paging (RJ45), 1 General Purpose Input
Protections & Controls
Configuration	DIP switch, Front panel, PC Software
Protections	Short circuit, Thermal, DC, Fuses
Cooling	Natural Convection
Physical Specifications
Cabinet Material / Color	Metal / Black
Rack Mounting	19", 2U
Dimensions (H x W x D)	88 x 442 x 230 mm / 3.46 x 17.4 x 9.06 inches
Weight	5.2 kg / 11.46 lbs
Shipping Information
Package Height / Weight	200 mm (7.87") / 6.6 kg (14.55 lbs)
