Key Specifications

Number of Analog Input Channels

8 (2 Mono / 3 Stereo)

Number of Mic Preamps

2

Analog Output Channels

1x Stereo Master Output
3x Stereo Headphone Output
1x Stereo Aux Send Output
1x Stereo Direct Output

EQ

Input Channels: 2-Band EQ/Shelving

Built-In Effects

3x Stereo Reverb

USB I/O

USB-C

Wireless

Bluetooth

Rack Mountable

No

Mixer

Max I/O Capacity

8x Input / 8x Output

Number of Analog Input Channels

8 (2 Mono / 3 Stereo)

Number of Mic Preamps

2

Analog Output Channels

1x Stereo Master Output
3x Stereo Headphone Output
1x Stereo Aux Send Output
1x Stereo Direct Output

Mix Routing

1x Stereo Main Mix
1x Stereo FX Bus per Input Channel
3x Stereo Bus/Subgroup

Faders & Level Adjustment

19x Channel Knob
3x Master Knob
2x Bus/Subgroup Knob
1x FX Knob

Meters

1x 8-Segment LED

Signal Processing

Gain/Trim Range

Line/Mic Input: -20 dB to +30 dB
Stereo Line Input: -20 dB to +20 dB

Input Polarity

Fixed

Dynamic Processing

No

EQ

Input Channels: 2-Band EQ/Shelving

EQ Parameters

High: at 12 kHz (Shelving)
Low: at 80 Hz (Shelving)

Graphic EQ

No

Filters

Mono Channels: 2x High-Pass

Solo/Mute

No

Built-In Effects

3x Stereo Reverb

Connectivity

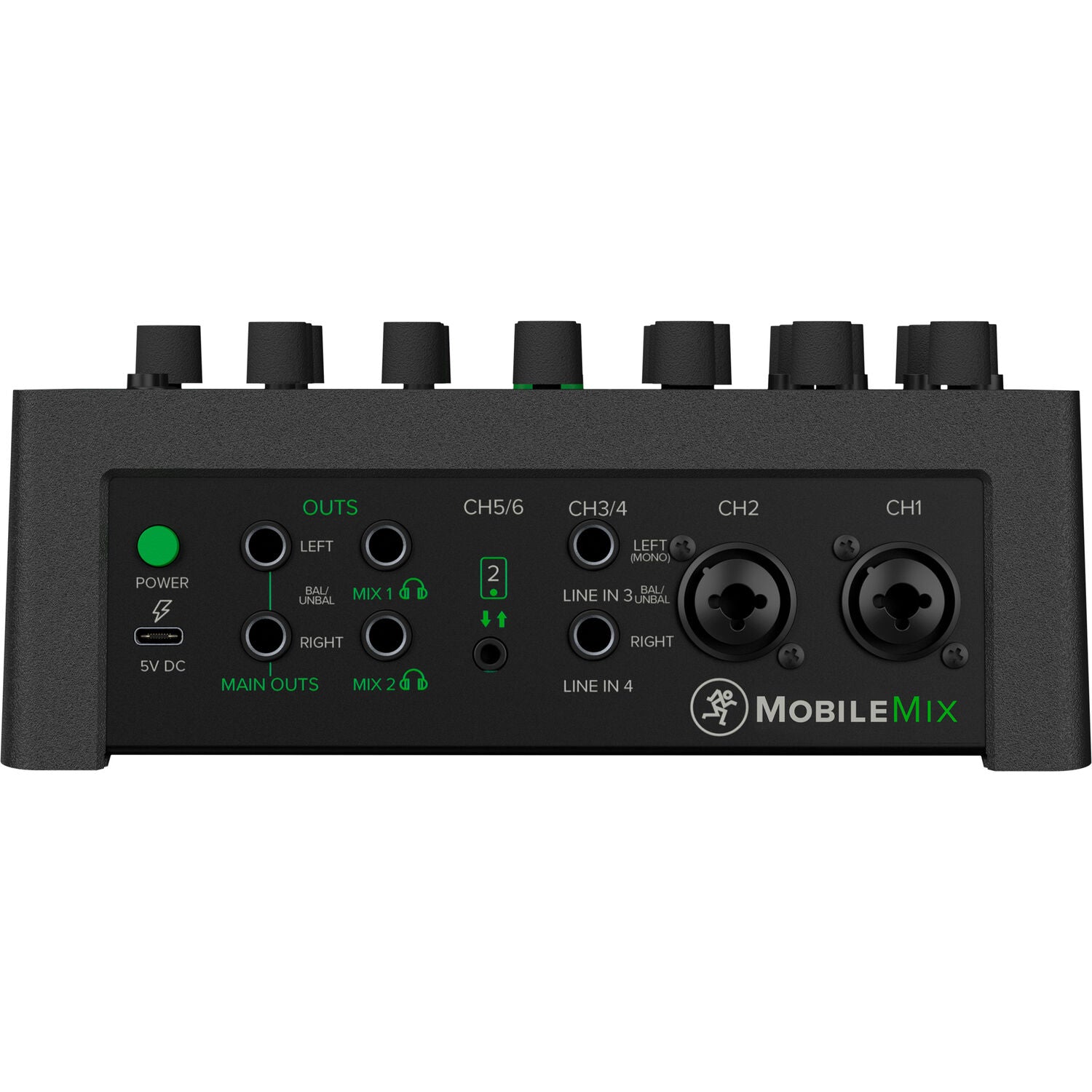

Analog Inputs

2x Combo XLR-1/4" Balanced Mic/Line Input (Pre-Fader, Pre-EQ)
2x 1/4" Line Input (1 Stereo Pair, Pre-Fader, Pre-EQ)
1x 1/8" / 3.5 mm TRRS Stereo Line Input (Pre-Fader, Pre-EQ)

Analog Outputs

2x 1/4" Mix Output (1 Stereo Pair, Post-Fader)
2x 1/4" TRS Stereo Headphone Output (Post-Fader)
1x 1/8" / 3.5 mm TRS Stereo Headphone Output (Post-Fader)
1x 1/8" / 3.5 mm TRS Stereo Line/Direct Output (Pre-Fader)

Phantom Power

+48 V, Selectable On/Off (on 2 Channels)

Digital I/O

No

MIDI I/O

No

USB I/O

1x USB-C (Device Charging)

Wireless

Bluetooth

Compatibility

OS Compatibility

No

Power

DC Input Power

5 VDC (USB Bus Power)

Physical

Rack Mountable

No

Packaging Info

Package Weight

2.92 lb

Box Dimensions (L × W × H)

10 x 9.3 x 4"
