Key Specifications

Frequency Response (-10 dB)

70 Hz - 20000 Hz

Max SPL @ 1m

110 dB

Coverage Angle (H x V)

120° x 100°

System Sensitivity

89 dB

Power Section

Power Handling

60 W RMS / 240 W PEAK

Nominal Impedance

16 Ω

Crossover Frequency

4500 Hz

Transducers

Dome Tweeter

1 x 0.75'' (Waveguide loaded)

Woofer

1 x 5.0''

Input / Output Section

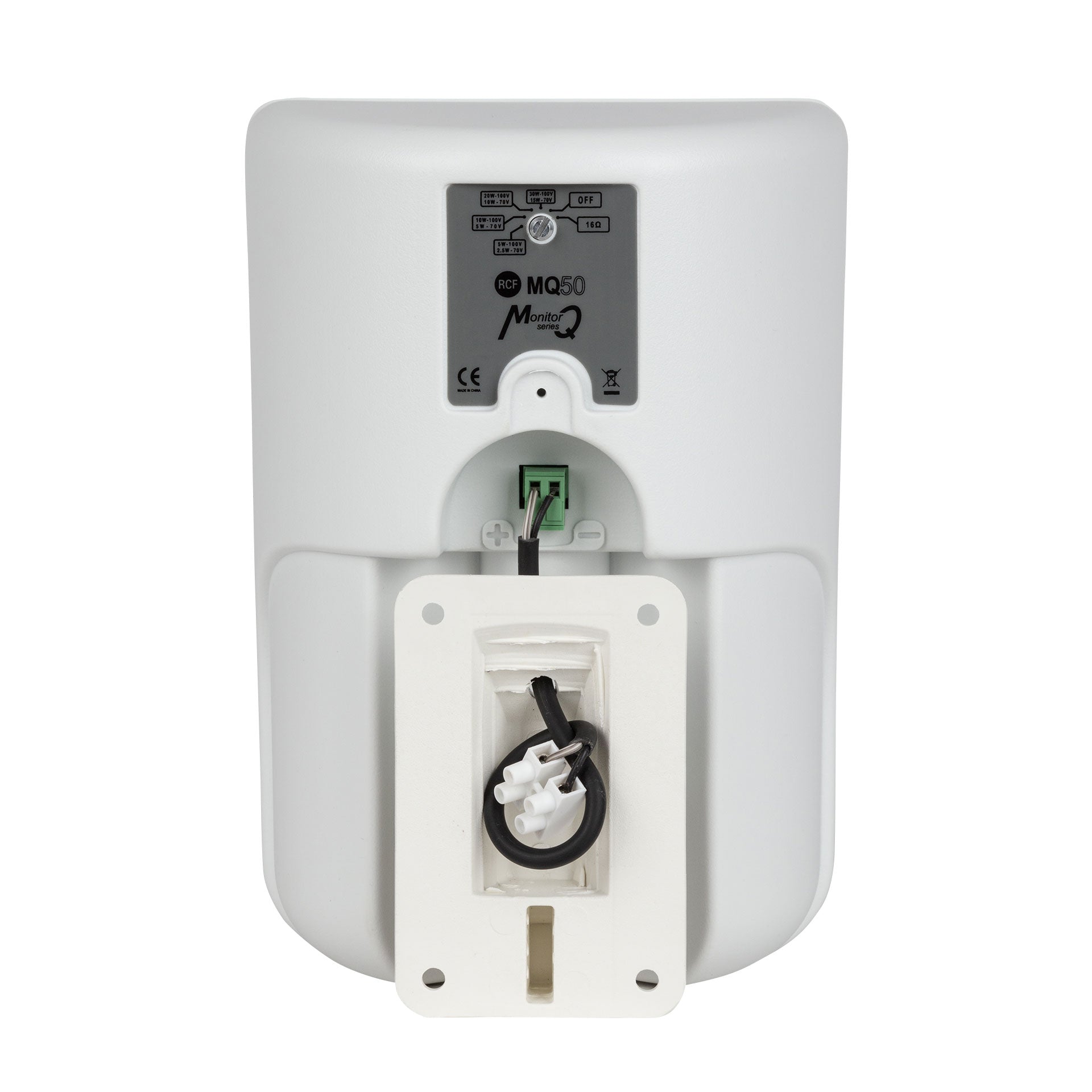

Input / Output Connectors

Euroblock

Power Selection (100V Taps)

30 W, 20 W, 10 W, 5 W

Physical Specifications

Cabinet Material / Grille

Self-extinguishing Plastic / Steel

Hardware

Wall mount bracket included

Color Options

White (RAL 9016), Black (RAL 9005)

Dimensions (H x W x D)

245 x 165 x 175 mm / 9.65 x 6.5 x 6.89 inches

Weight

2.63 kg / 5.8 lbs

Shipping Information

Package Dimensions

300 x 235 x 220 mm / 11.81 x 9.25 x 8.66 inches

Package Weight

3.16 kg / 6.97 lbs
