Key Specifications

Frequency & SPL

• Frequency Response (-10dB): 100 Hz - 19000 Hz
• Max SPL @ 1m: 109 dB
• System Sensitivity: 88 dB

Coverage Angle

• Horizontal: 180°
• Vertical: 100°

Power Section

Power Handling

• Nominal Impedance: 16 ohm
• RMS Power: 60 W
• Peak Power: 240 W
• Crossover Frequency: 2000 Hz

Constant Voltage Taps

• Voltage: 100 V
• Taps: 30W (333Ω), 20W (500Ω), 10W (1000Ω), 5W (2000Ω)

Transducers

Drivers

• Woofer: 1 x 5.0''
• Dome Tweeter: 2 x 1.0''

Physical & Compliance

Physical Specifications

• Material: Plastic Cabinet / Steel Grille

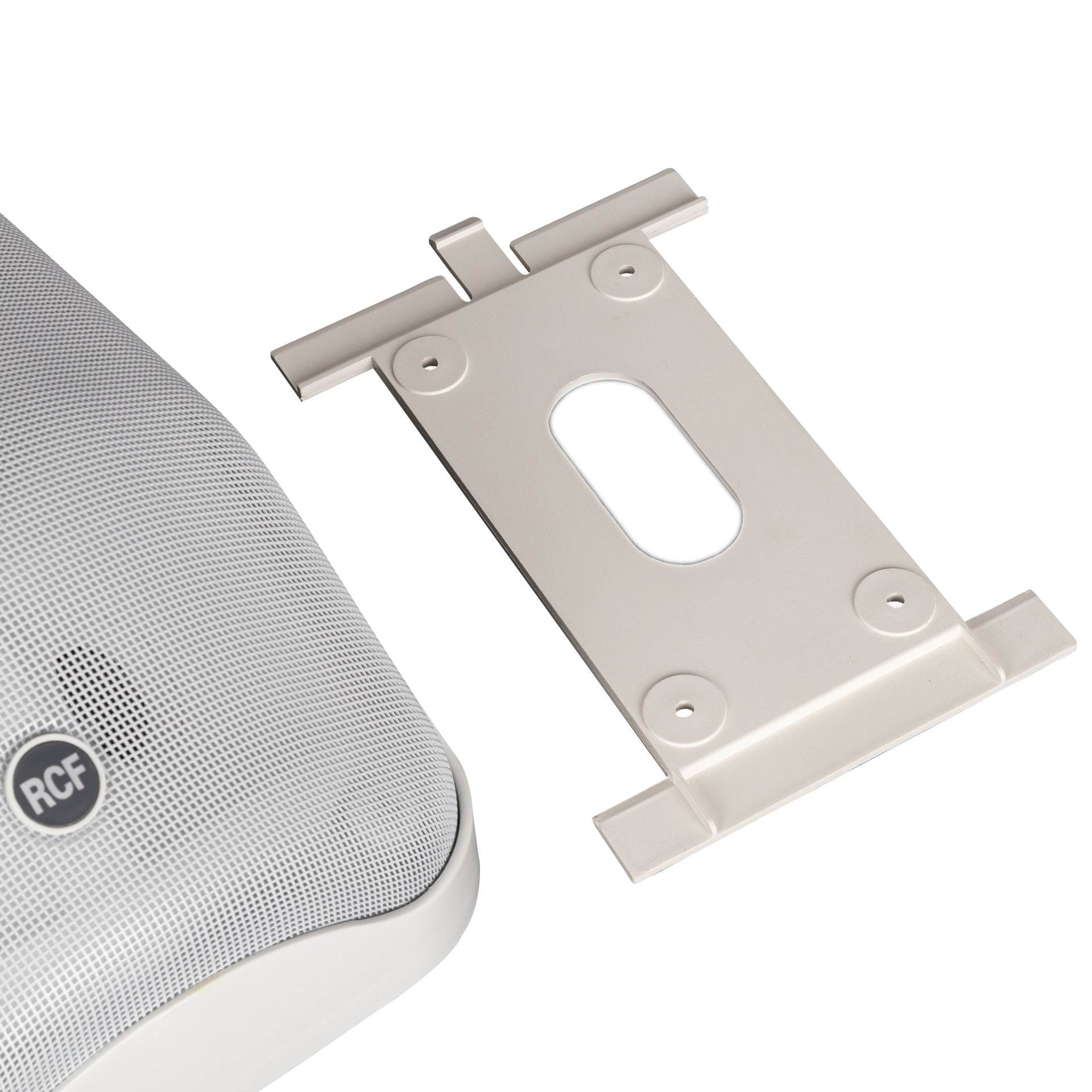

• Hardware: Wall mount bracket included
• Color: White (RAL 9016), Black (RAL 9005)
• Dimensions: 297 x 198 x 122 mm / 11.69 x 7.8 x 4.8"
• Weight: 2.85 kg / 6.28 lbs

Packaging Info

• Package Weight: 3.39 kg / 7.47 lbs
• Box Dimensions: 340 x 265 x 180 mm

Compliance

• Safety Agency: CE compliant
