Key Specifications

Max I/O Capacity

18 × Input / 8 × Output

Number of Analog Input Channels

18 (16 Mono / 1 Stereo)

Number of Mic Preamps

16

Number of Analog Output Channels

8

Faders & Level Adjustment

No

Built-In Effects

4 × Stereo

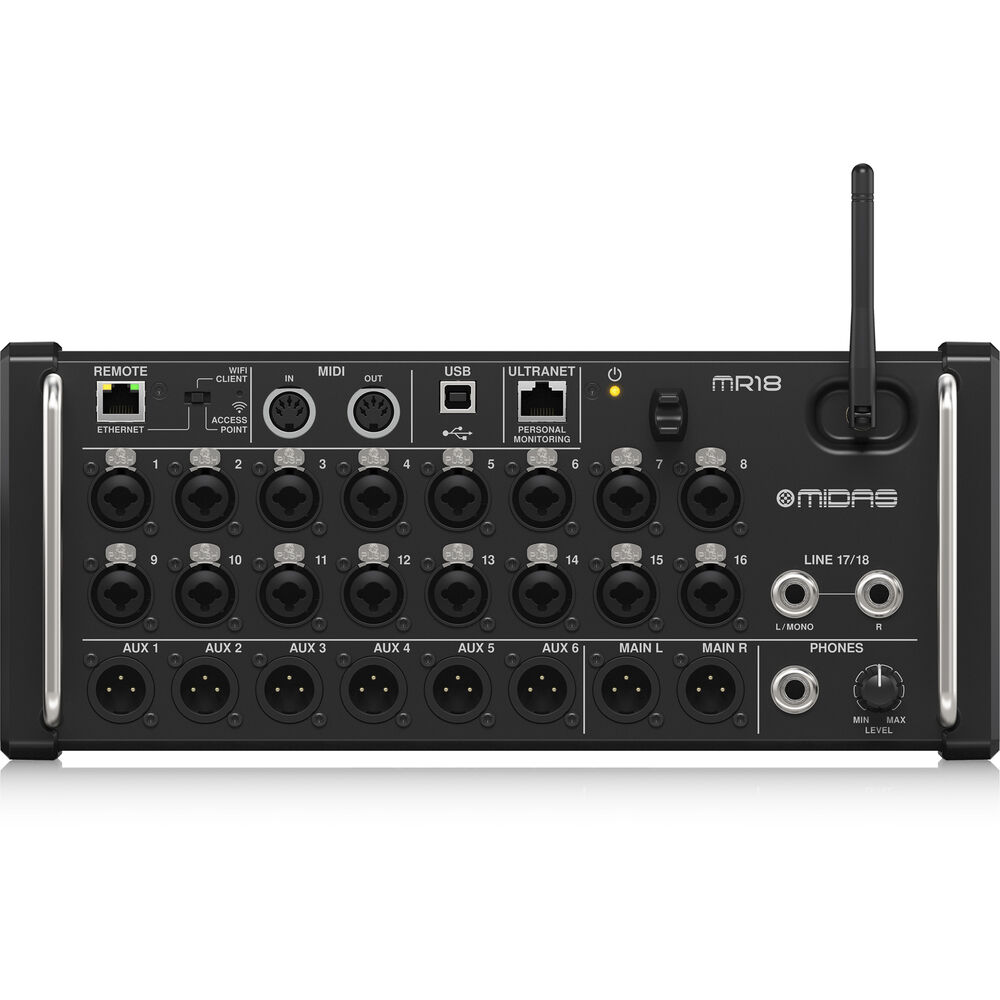

Analog Inputs

16 × Combo XLR-1/4" TRS Balanced Input
2 × 1/4" TRS Balanced Line Input

Analog Outputs

2 × XLR Main Output
6 × XLR Aux Output
1 × 1/4" Headphone Output

Digital I/O

1 × RJ45

USB I/O

USB-B

Wireless

Wi-Fi

Rack Mountable

Yes

Mixer

Max I/O Capacity

18 × Input / 8 × Output

Number of Analog Input Channels

18 (16 Mono / 1 Stereo)

Number of Mic Preamps

16

Number of Analog Output Channels

8

Mix Routing

2 × Main LRC
4 × Stereo FX Return
6 × Bus

Presets

Yes

Faders & Level Adjustment

No

Signal Processing

Input Polarity

Normal / Reverse

Dynamic Processing

Compressor, Gate

EQ

Input Channels:
4-Band Parametric
Outputs:
6-Band Parametric
31-Band Graphic

Graphic EQ

31-Band 1/3 Octave, ±15 dB, 20 Hz to 20 kHz

Filters

Input Channels:
1 × High-Pass

Solo / Mute

Solo, Mute per Input Channel, Bus, FX Bus, Master

Built-In Effects

4 × Stereo

Audio Delay

No

Automatic Mic Mixing

Yes

Digital Audio

Sample Rates

44.1 / 48 kHz

Bit Depth

AD/DA Conversion:
24-Bit

Performance

Frequency Response

20 Hz to 20 kHz ±0.5 dB

Maximum Input Level

Combo XLR-1/4" Mic Input:
+23.5 dBu
1/4" TRS Input:
+21 dBu

Analog Dynamic Range

Input to Output:
107 dB

I/O Impedance

Combo XLR-1/4" Line/Mic Input:
10 Kilohms (Balanced/Unbalanced)
1/4" Line Input:
20 Kilohms (Unbalanced)
40 Kilohms (Balanced)
XLR Main Output:
50 Ohms
1/4" TRS Headphone Output:
50 Ohms

Noise Floor

All Outputs:
-86 dBu Unweighted (at Unity Gain, 22 Hz to 22 kHz Unweighted)
-90 dBu Unweighted (with Inputs Muted, 22 Hz to 22 kHz, Unweighted)

THD+N

Mic/Line Input:
0.005% at Unity Gain (1 kHz, Unweighted)

Signal Generator

No

Connectivity

Analog Inputs

16 × Combo XLR-1/4" TRS Balanced Input
2 × 1/4" TRS Balanced Line Input

Analog Outputs

2 × XLR 3-Pin Balanced Main Output
6 × XLR 3-Pin Balanced Aux Output
1 × 1/4" TRS Balanced Headphone Output

Phantom Power

+48 V (Selectable on Individual Inputs)

Digital I/O

1 × RJ45

MIDI I/O

1 × MIDI 5-Pin In
1 × MIDI 5-Pin Out

USB I/O

1 × USB-B 2.0 (Audio Playback, MIDI)

Expansion Ports

No

Wireless

Wi-Fi

External Display I/O

No

Compatibility

OS Compatibility

Computer: Windows / macOS / Linux
Mobile: Android / iPadOS

Power

Input Power

100 to 120 VAC, 50 / 60 Hz

Physical

Rack Mountable

Yes

Rackmount Size

3 U (with Included Hardware)

Operating Conditions

41 to 104°F / 5 to 40°C

Dimensions

13.1 × 5.9 × 5.8" / 33.3 × 15 × 14.7 cm

Weight

8.6 lb / 3.9 kg

Packaging Information

Package Weight

9.44 lb

Box Dimensions (L × W × H)

15 × 8.5 × 7.5"
