Key Specifications

Computer Connections

2

Port Selection

Manual Push Button

Keyboard / Mouse Support

PS/2

Video Resolution

Up to 1920 x 1440, DDC2B Support

LED Indicators

2 x Green LEDs

Cable Length

1.2 m

Console Ports

Keyboard Port

1 x 6-pin Mini-DIN Female (Purple)

Video Port

1 x HDB-15 Female (Blue)

Mouse Port

1 x 6-pin Mini-DIN Female (Green)

Speaker Port

N/A

Microphone Port

N/A

KVM Ports

Keyboard Ports

2 x 6-pin Mini-DIN Male (Purple)

Video Ports

2 x HDB-15 Female (Blue)

Mouse Ports

2 x 6-pin Mini-DIN Male (Green)

Speaker Ports

N/A

Microphone Ports

N/A

Environmental

Operating Temperature

0°C to 50°C

Storage Temperature

-20°C to 60°C

Humidity

0% to 80% RH (Non-Condensing)

Physical Properties

Housing Material

Plastic

Weight

0.413 kg

Dimensions (L × W × H)

9.5 × 6 × 2.7 cm

Package Contents

Included Items

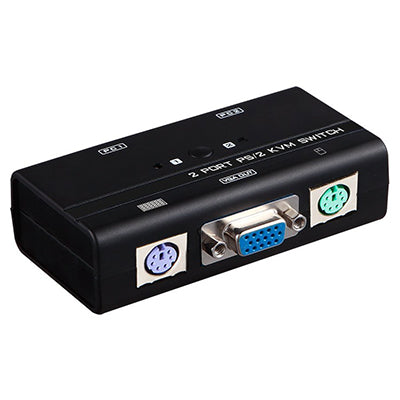

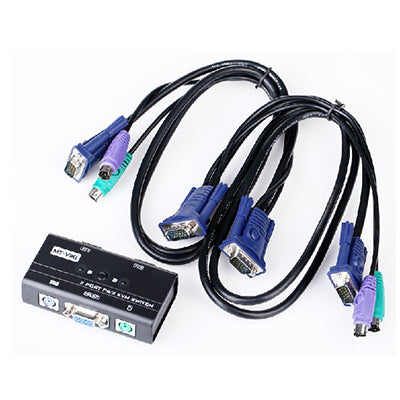

MT-260SL PS/2 KVM Switch (2-Port), User Manual, 2 x VGA Cables with PS/2 Connectors
