Key Specifications

Power & Amplification

Power Source

220 V - 240 V AC, 50/60 Hz

Power Output

240 W × 2 channels (100 V, 42 Ω)

Amplification System

Class D, Output transformerless galvanic isolated

Power Consumption

100 W (IEC60065) | 570 W (Rated Output)

Frequency Response

50 Hz - 20 kHz, ±3 dB

Distortion / SNR

≤ 1 % (at 1 kHz) | ≥ 60 dB

Audio Inputs

MIC 1 (Phantom Support)

-50 dB (ON) / -60 dB (OFF) | 600 Ω | φ6.3 mm Jack

MIC 2 - 4

-66 dB | 200 Ω | XLR-3-31 and φ6.3 mm Jack

MIC 5 - 6

-60 dB | 600 Ω | XLR-3-31 and φ6.3 mm Jack

AUX 1 / AUX 2

-10 dB (RCA) / -20 dB (φ3.5 mm Mini Jack)

Power Amp Input

0 dB | 10 kΩ | RCA (ROOM and OUTSIDE)

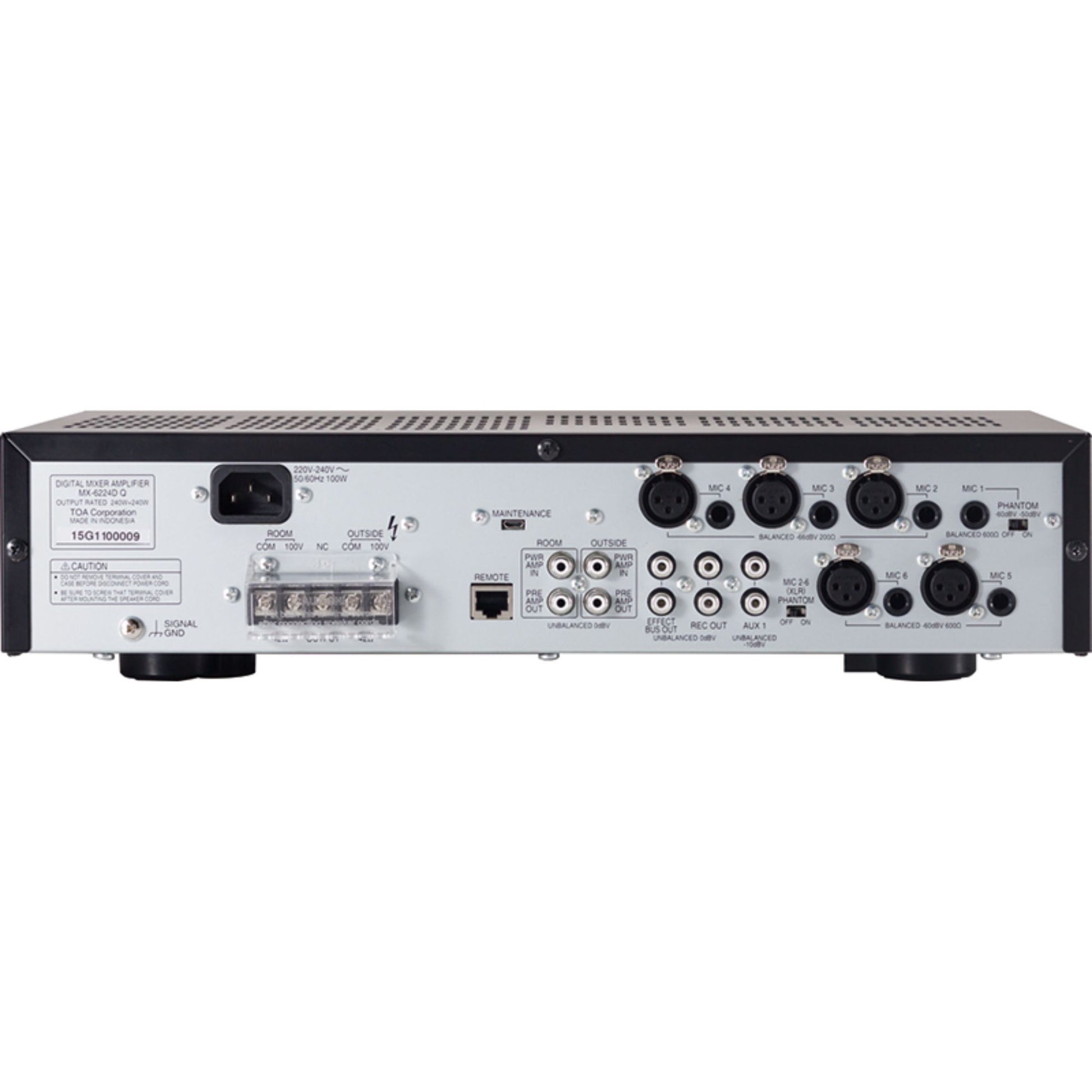

Audio Outputs

Speaker Output

2 Zones | 100 V (42 Ω) | M4 Screw Terminal

Recording / Effect Bus

0 dB | 600 Ω | RCA pin jacks

Preamplifier Output

0 dB | RCA (ROOM and OUTSIDE)

DSP & Control Features

Equalizer (MIC 1-6)

Low (80 Hz), Mid (2.5 kHz), High (12 kHz) | ±15 dB

Effect Processor

DOME / HALL / PLATE / DELAY (L/M/S sizes)

Speaker EQ Optimization

Presets for TC-631M, TC-651M, BS-1030B/W

Phantom Power

Switchable for MIC 1 and XLR inputs (MIC 2-6)

Physical Specifications

Dimensions (W x H x D)

420 × 99.8 × 360.6 mm (16.54 × 3.93 × 14.2")

Weight / Cooling

6.1 kg (13.45 lb) | Natural air cooling

Finish

Black Aluminum Front Panel | Black Steel Case
