Key Specifications

Product Model

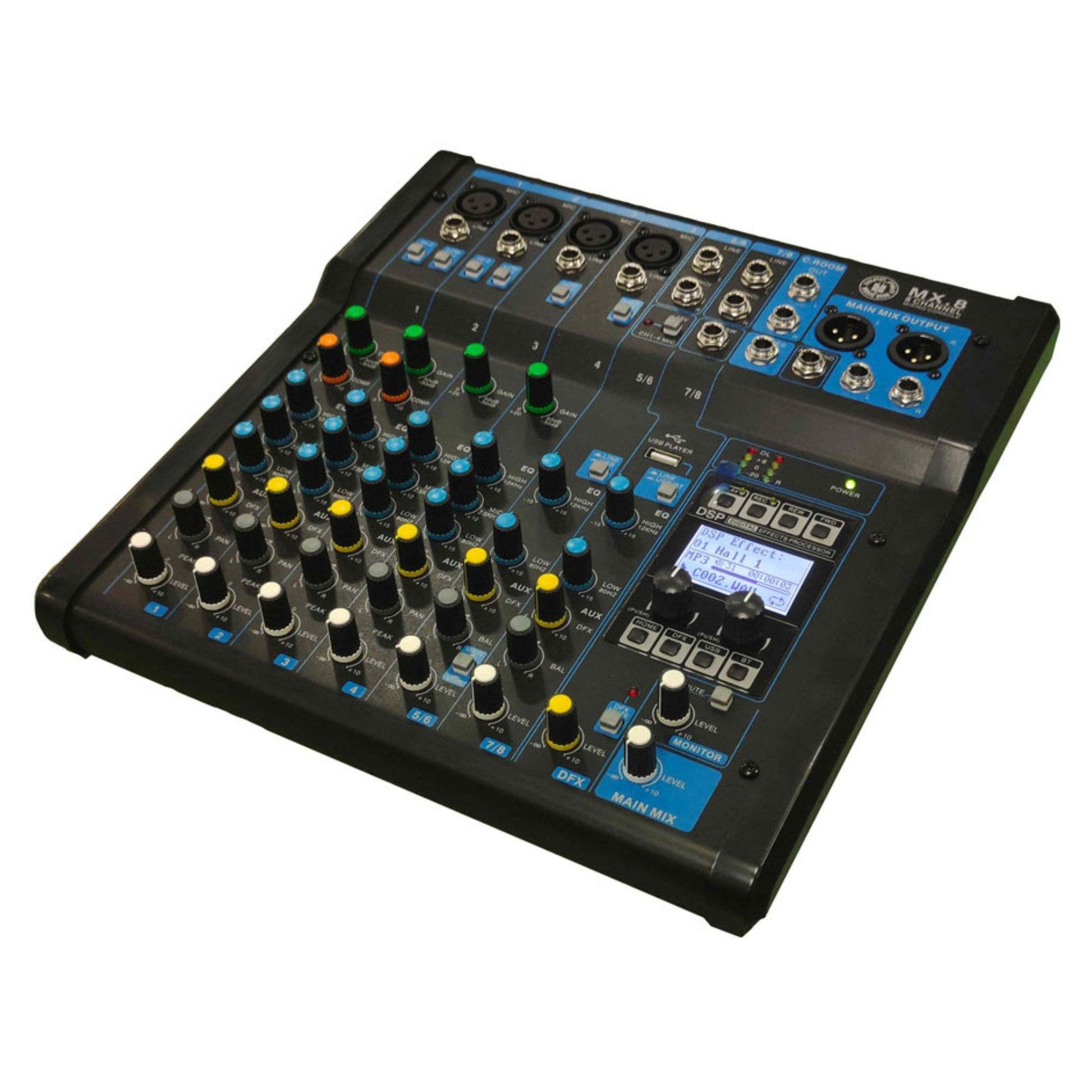

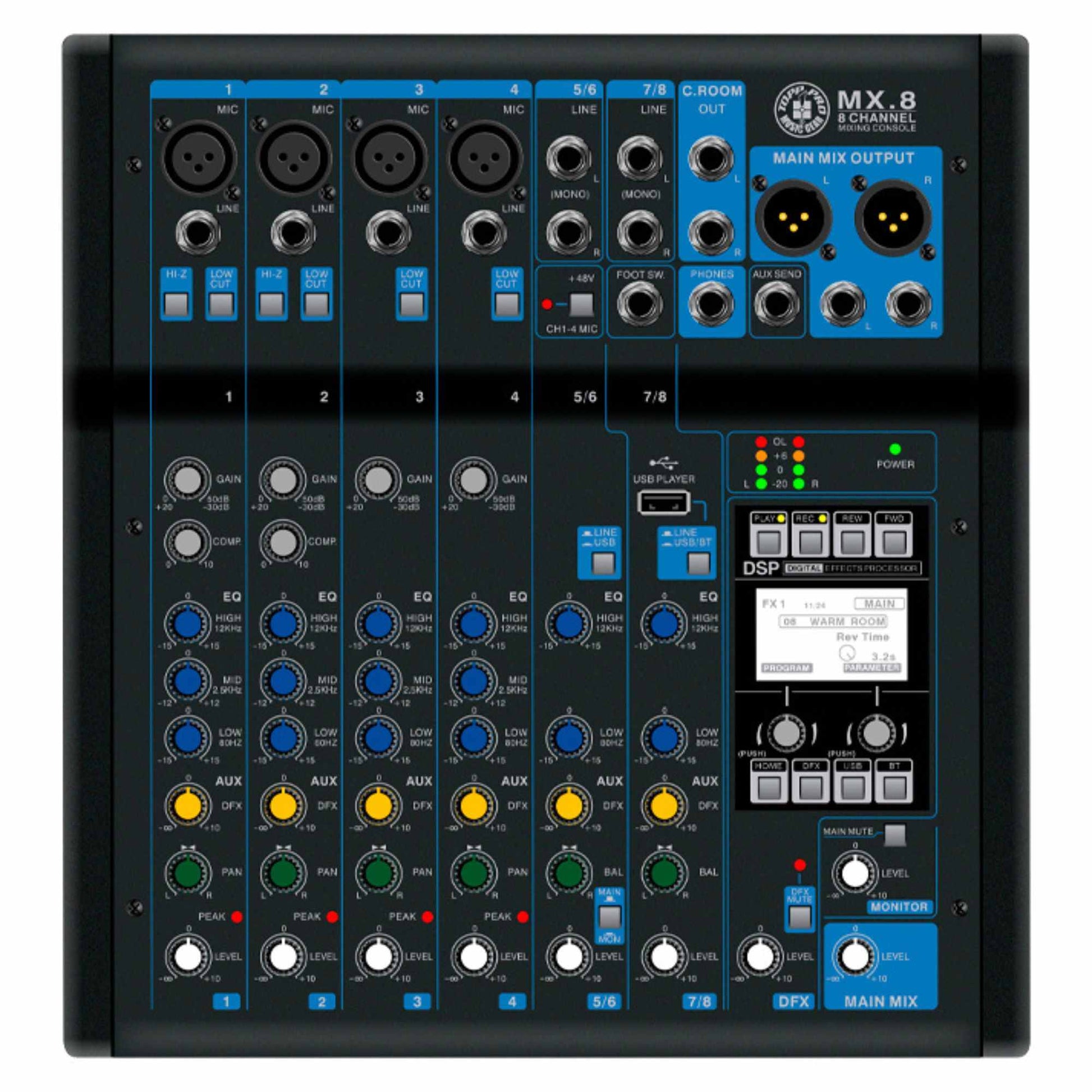

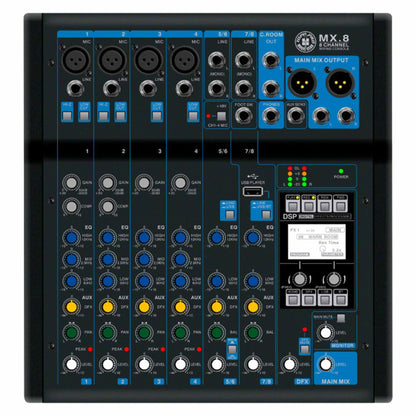

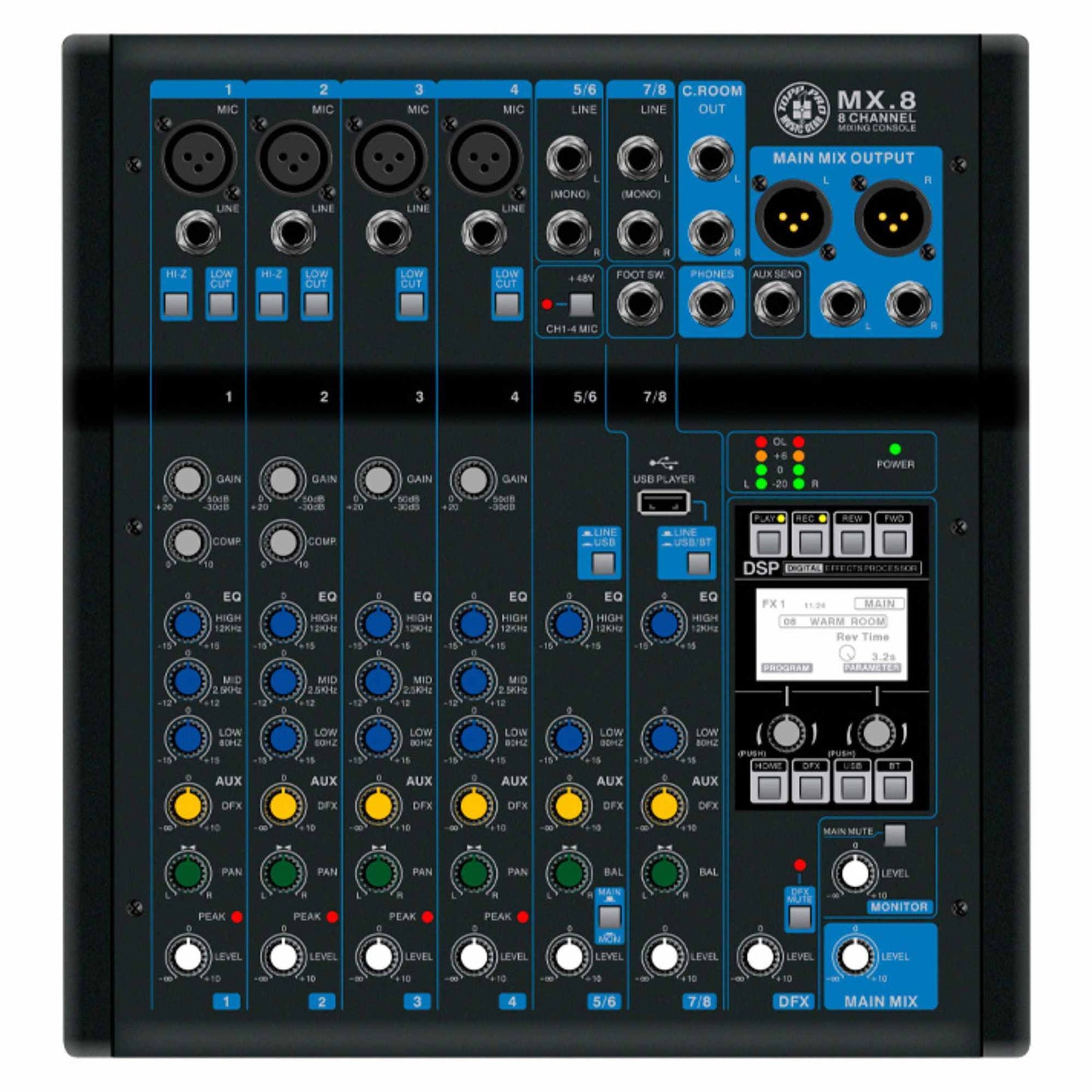

Alto Professional MX.8

Mixer Type

8-Channel Analog Mixer with USB Audio Interface

USB Audio Interface

Class 2.0 | Max 192 kHz / 24-bit

Phantom Power

+48V (Global)

Audio Performance

Frequency Response

20 Hz to 20 kHz (+0.5 dB/-1.5 dB)

Total Harmonic Distortion

0.03% @ +0 dBu (20 Hz - 20 kHz)

Equivalent Input Noise

-128 dBu (Rs: 150Ω, Gain: Max)

Crosstalk

-85 dB

Channel Strip Features

Compression

1-knob compressor (Ratio 1:1 to 4:1) | Mono channels

Equalizer (3-Band)

• High: ±15 dB @ 12 kHz shelving
• Mid: ±12 dB (Sweepable 100 Hz - 8 kHz)
• Low: ±15 dB @ 80 Hz shelving

High Pass Filter

120 Hz, 12 dB/oct (MIC inputs only)

Digital Effects (DSP)

On-board Processors

24 Programs | PARAMETER control x 2

External Control

Footswitch input (FOOT SW: 1)

Physical & Power

Dimensions (W x H x D)

282 x 55.4 x 296.1 mm

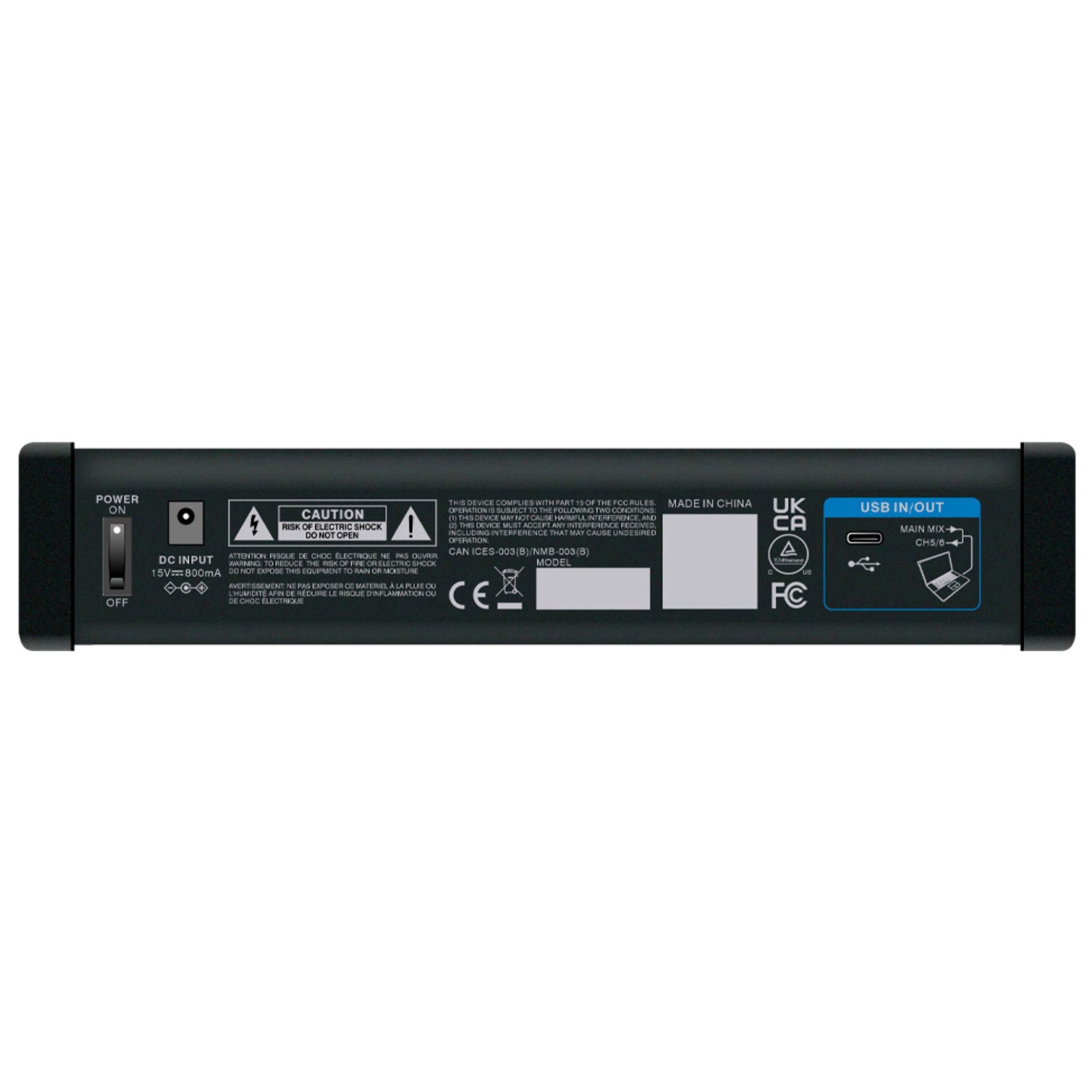

Power Consumption

12 W (DC 15V / 0.8A)
