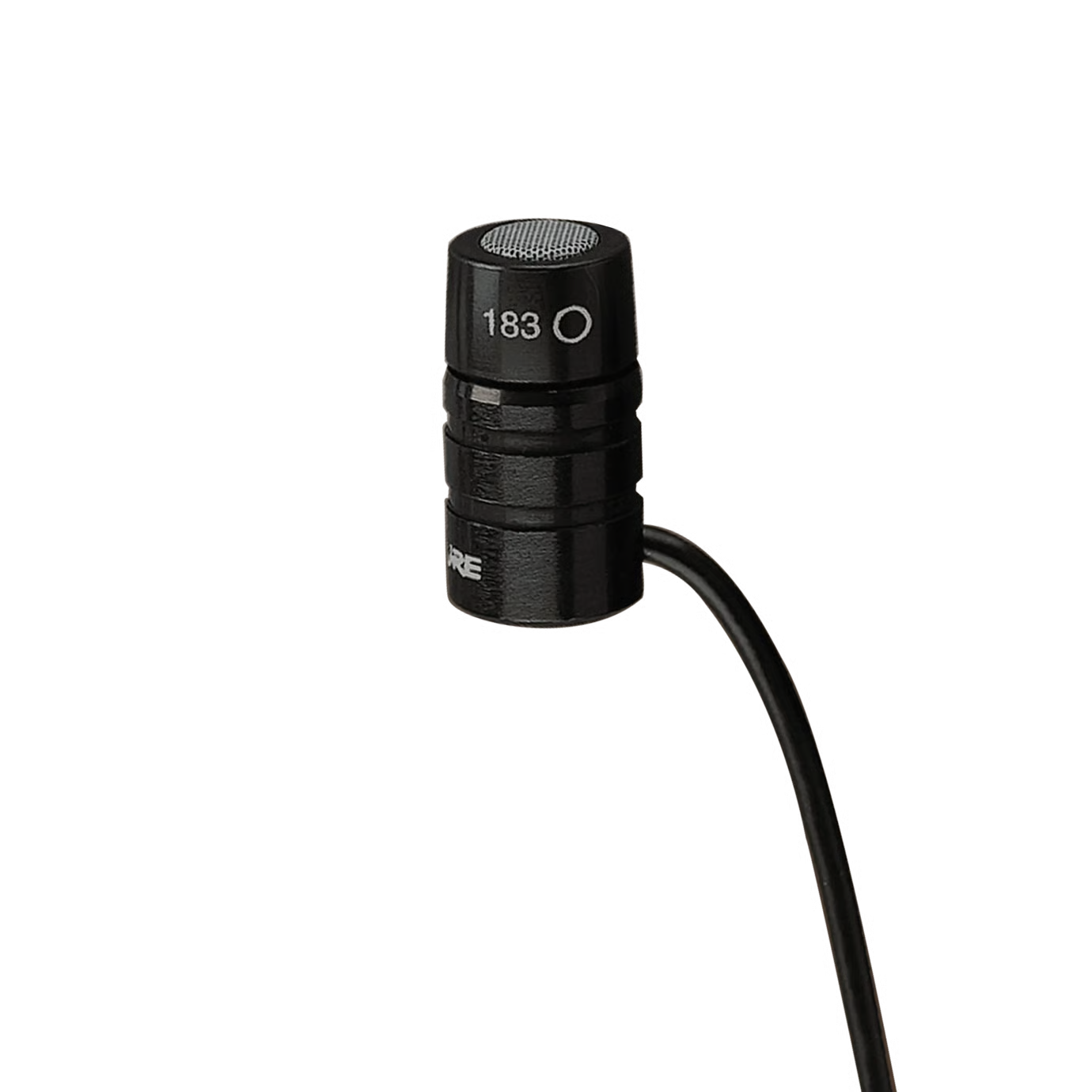

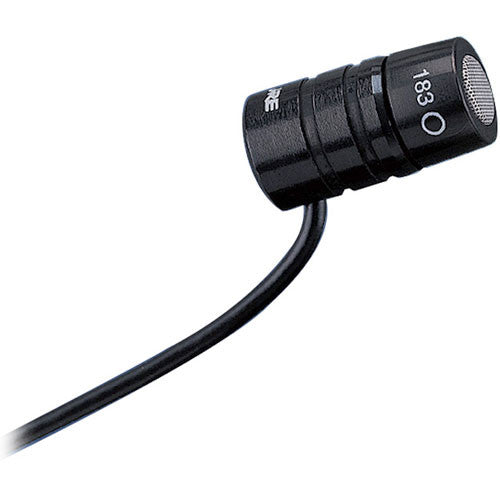

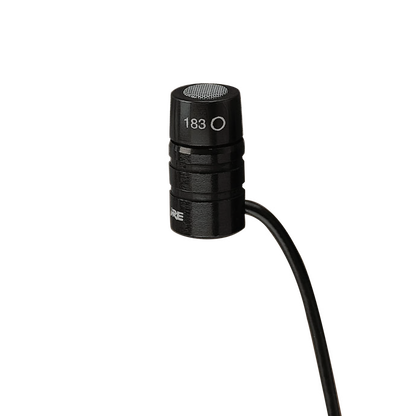

MX183

Condenser lavalier microphones
Interchangeable cartridges for omni-directional, cardioid and super-cardioid polar patterns
Includes pivoting, single-microphone tie clip and dual microphone tie clip
Black, Snap-fit Foam Windscreen
Compatible with all Shure wireless transmitters
Attached 4-foot cable with Tini Q-G connector

SHURE

₱18,000.00 VAT INC.

₱18,000.00

UNIT: PIECE/S

Product Code: SKU:SHUR-MX183-CHN-680

Condenser lavalier microphones
Interchangeable cartridges for omni-directional, cardioid and super-cardioid polar patterns
Includes pivoting, single-microphone tie clip and dual microphone tie clip
Black, Snap-fit Foam Windscreen
Compatible with all Shure wireless transmitters
Attached 4-foot cable with Tini Q-G connector

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

SHURE MX183

Key Specifications
Microphone Type	Lavalier (Subminiature Condenser)
Polar Pattern	Omnidirectional
Element Type	Electret Condenser
Frequency Response	50 Hz to 17 kHz
Maximum SPL	116.7 dB (132.8 dB with 0 dB Gain)
Analog Output	1x XLR 3-Pin Male (via Included Preamp)
Power Sources	Phantom Power
Microphone
Sound Field	Mono
Connector at Mic	4-Pin Mini Connector (TA4F)
Cable Length	4' / 1.2 m
Interference Shielding	CommShield Technology
Performance
Sensitivity	-27.5 dBV/Pa (42.2 mV) at 1 kHz
Output Impedance	150 Ohms (Actual: 180 Ohms)
Signal-to-Noise Ratio	70.5 dB
Equivalent Noise Level	23.5 dB (A-Weighted)
Power
Operating Voltage	11 to 52 VDC (Phantom Power)
Current Consumption	2.0 mA
Physical
Color	Black
Included Accessories	Tie Clip, Windscreen, In-line Preamp, Storage Pouch
Packaging Info
Package Weight	0.6 lb
Box Dimensions (LxWxH)	7.6 x 5.1 x 3.3"
