Key Specifications

Form Factor / Type

Rackmount

Number of Mixer Inputs

12

Number of Amplifier Channels

4

Load Impedance / Voltage Support

4 / 2 / 8 Ohms
25 / 100 / 70 V

Power Rating per Channel

12 × 150 W at 2/4 Ohms
12 × 150 W at 100/70/25 V

Channel Bridging & Power Sharing

150 W Bridged at 2 Ohms
300 W Bridged at 4 Ohms
150 W Bridged at 8 Ohms

Performance

Frequency Response

20 Hz to 20 kHz ±0.05 dB

Damping Factor

>250 at 8 Ohms

THD / Distortion

≤0.5% THD+N (8 Ohms at Rated Power -10 dB, 20 Hz to 20 kHz)
≤0.5% Distortion (SMPTE)

Crosstalk

-75 dB (at Rated Power, 1 kHz)

Signal Processing

AD/DA Conversion

32-Bit / 48 kHz

DSP

Yes: 32-Bit Floating Point DSP

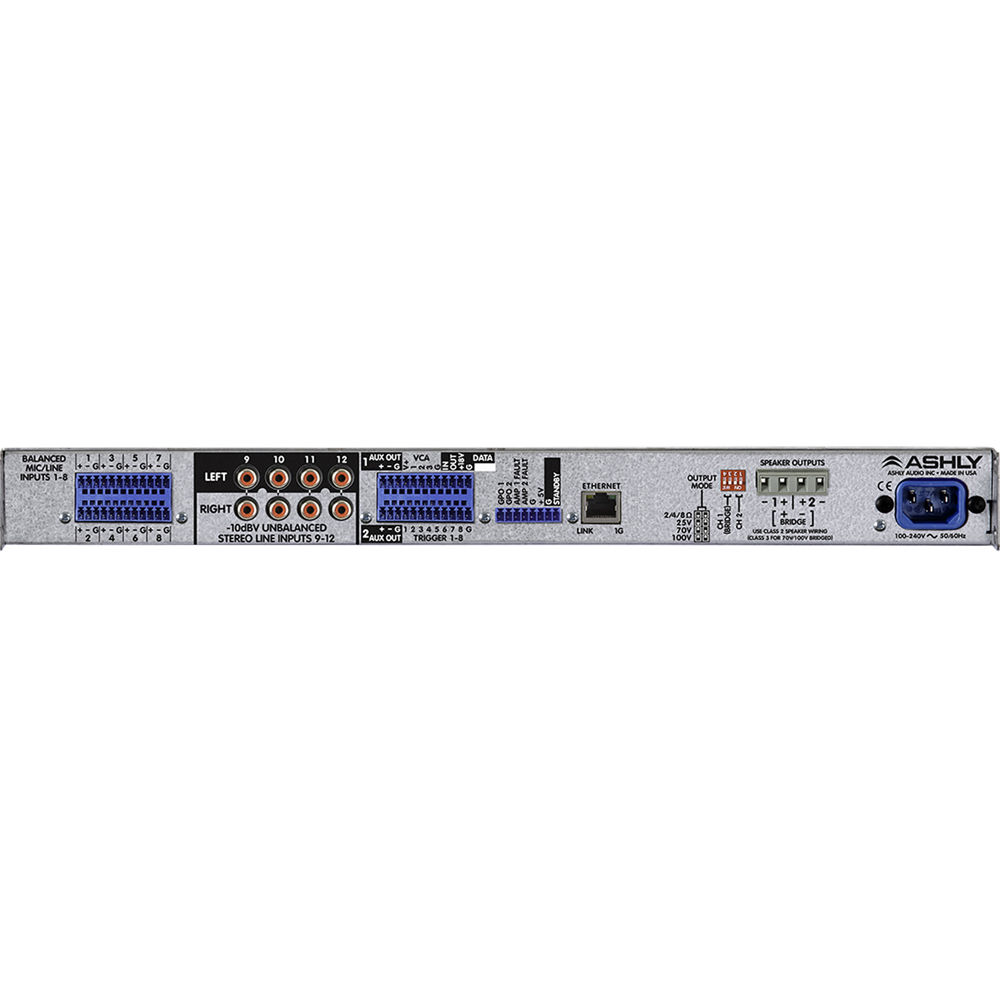

Connectivity

Analog Audio I/O

2 × Screw Terminal 2-Pin Speaker Output
8 × Block 3-Pin Balanced Line/Mic Input
4 × Stereo 2RCA Unbalanced Input
2 × Block 3-Pin Aux Output

Digital Audio I/O

No

Network I/O

1 × RJ45 Ethernet

Other I/O

1 × Block Control Input

USB I/O

No

Phantom Power

+48 V

OS Compatibility

Web-Based (Runs in Your Browser)

Wireless

No

Power

Input Power

70 to 270 VAC, 60 / 50 Hz

AC Power Connector

1 × IEC / NEMA 5-15

Power Consumption

1 W (Sleep Mode)
15 W (Standby)
33 W (Idle)

Physical

Display

Single-LED Indicators Only

Rackmount Size

1 U

Cooling

Fan (Variable Speed)

Dimensions

19 × 14.5 × 1.8" / 483 × 369 × 45 mm

Weight

13 lb / 5.9 kg

Packaging Information

Package Weight

14.885 lb

Box Dimensions (L × W × H)

24.1 × 19.3 × 2.3"
