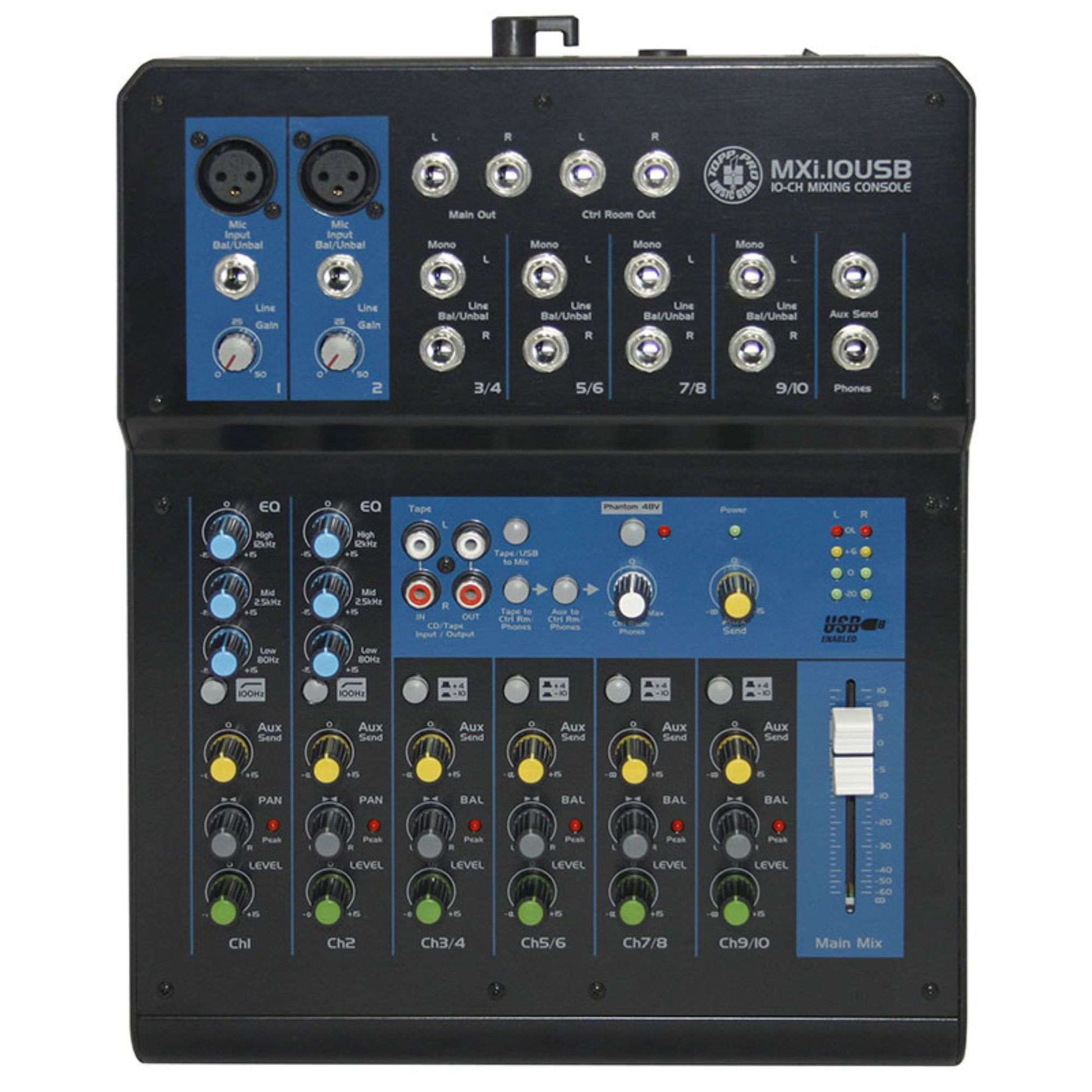

Mxi.10 USB

2 mono inputs (4 for MXi.12/USB ) with gold plated XLR and Balanced TRS jack
4 (2 for MXi.6/USB ) stereo inputs with Balanced TRS jack
GAIN control and +48V phantom power for mono inputs
3-band EQ on all mono channels and stereo channels plus 75Hz low cut filter on all mono channels (For MXi.10/USB & MXi.12/USB )
1 POST-fader AUX send for effect sends can be changed in PRE-fader for monitoring

TOPP PRO

₱7,875.00 VAT INC.

₱7,875.00

UNIT: PIECE/S

Product Code: SKU:TOPP-MXI10U-CHN-823

2 mono inputs (4 for MXi.12/USB ) with gold plated XLR and Balanced TRS jack
4 (2 for MXi.6/USB ) stereo inputs with Balanced TRS jack
GAIN control and +48V phantom power for mono inputs
3-band EQ on all mono channels and stereo channels plus 75Hz low cut filter on all mono channels (For MXi.10/USB & MXi.12/USB )
1 POST-fader AUX send for effect sends can be changed in PRE-fader for monitoring

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

TOPP PRO Mxi.10 USB

Key Specifications
Product Models	MX.10 / MX.10USB
Mixer Type	Analog Compact Mixer (Optional USB Interface)
Mic Preamps	Studio-grade with +48V Phantom Power
Input Gain Range	0 dB to 50 dB
Audio Performance
Frequency Response	10 Hz to 150 kHz (+0, -1 dB)
Distortion (THD+IMD)	< 0.005% @ +4 dBu output
Equivalent Input Noise	-129 dBu (150 Ohm source)
Maximum Output	+22 dBu (Rated at +4 dBu)
Channel EQ & Processing
High EQ	±15 dB @ 12 kHz (Shelving)
Mid EQ	±12 dB @ 2.5 kHz (Peaking)
Low EQ	±15 dB @ 80 Hz (Shelving)
Metering	4-segment LED (Clip, +6, 0, -20)
Impedance & Connectivity
Mic Input Impedance	2.6 kOhm (Balanced)
Line Input Impedance	20 kOhm (Balanced)
Main Out Impedance	240 Ohm (Balanced) / 120 Ohm (Unbalanced)
Physical Specifications
Dimensions	41 x 188 x 252 mm (1.6" x 7.4" x 9.9")
Net Weight	1.4 kg (3.1 lb)
Power Connection	External 18.5 VAC Supply (3-pin)
