Key Specifications

Product Models

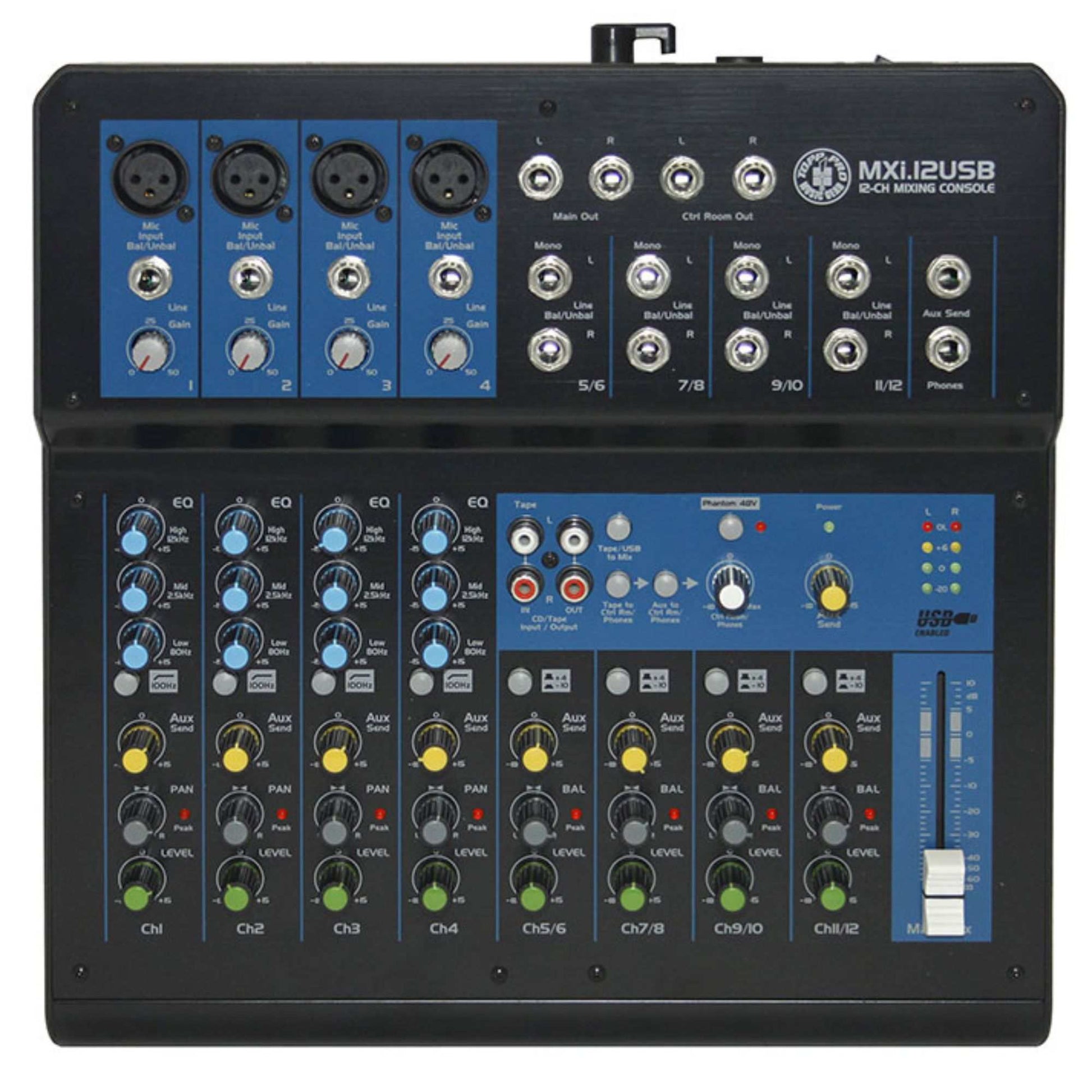

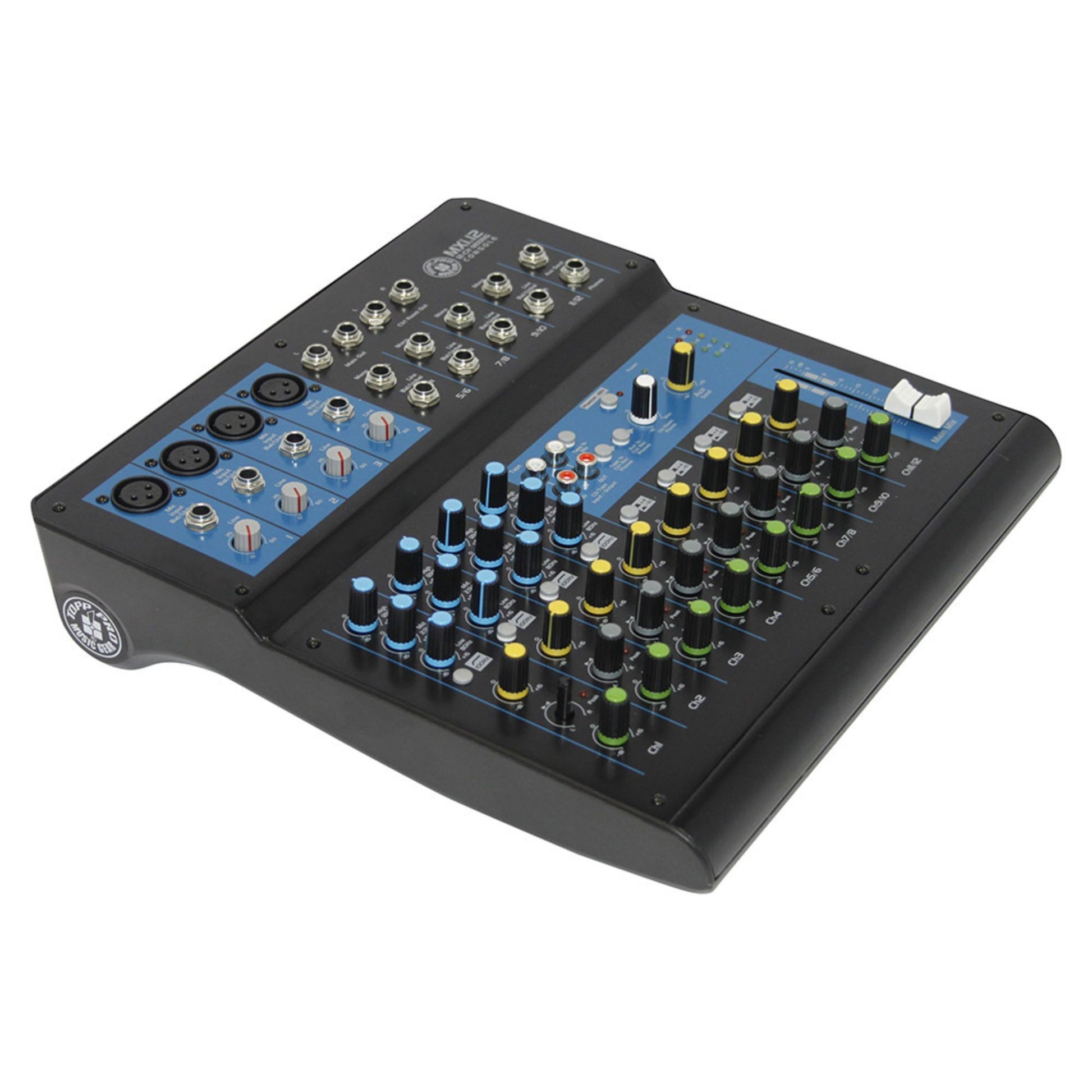

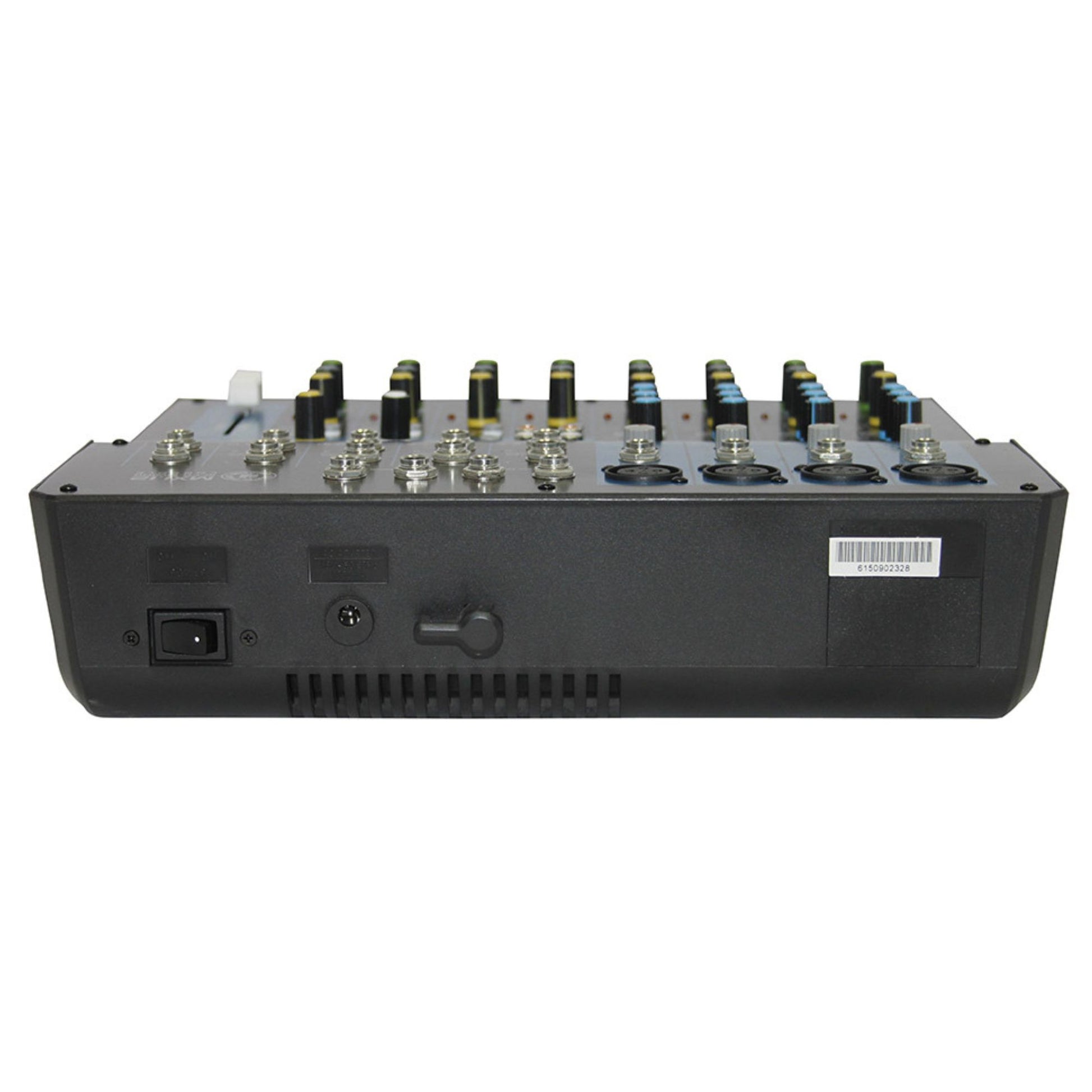

MXi.12 / MXi.12USB

Mixer Type

Analog Compact Mixer (Optional USB Audio Interface)

Phantom Power

+48 VDC (Global Switch)

Gain Control Range

0 dB to 50 dB

Audio Performance

Frequency Response

10 Hz to 150 kHz (+0, -1 dB)

Equivalent Input Noise

-129 dBu (150 Ohm source)

THD + SMPTE IMD

< 0.005% @ +4 dBu output

Crosstalk

-90 dB @ 1 kHz (Adjacent Inputs)

Channel EQ & Levels

Equalization (3-Band)

• High: ±15 dB @ 12 kHz
• Mid: ±12 dB @ 2.5 kHz
• Low: ±15 dB @ 80 Hz

Max Rated Output

+22 dBu (Rated at +4 dBu)

VU Metering

4-segment LED (Clip, +6, 0, -20)

Physical & Power

Dimensions (H x W x D)

41 x 272 x 259 mm (1.6" x 10.7" x 10.2")

Net Weight

1.8 kg (3.9 lb)

Power Requirement

External Supply: 18.5 VAC x 2 @ 150 mA
