Key Specifications

Product Model

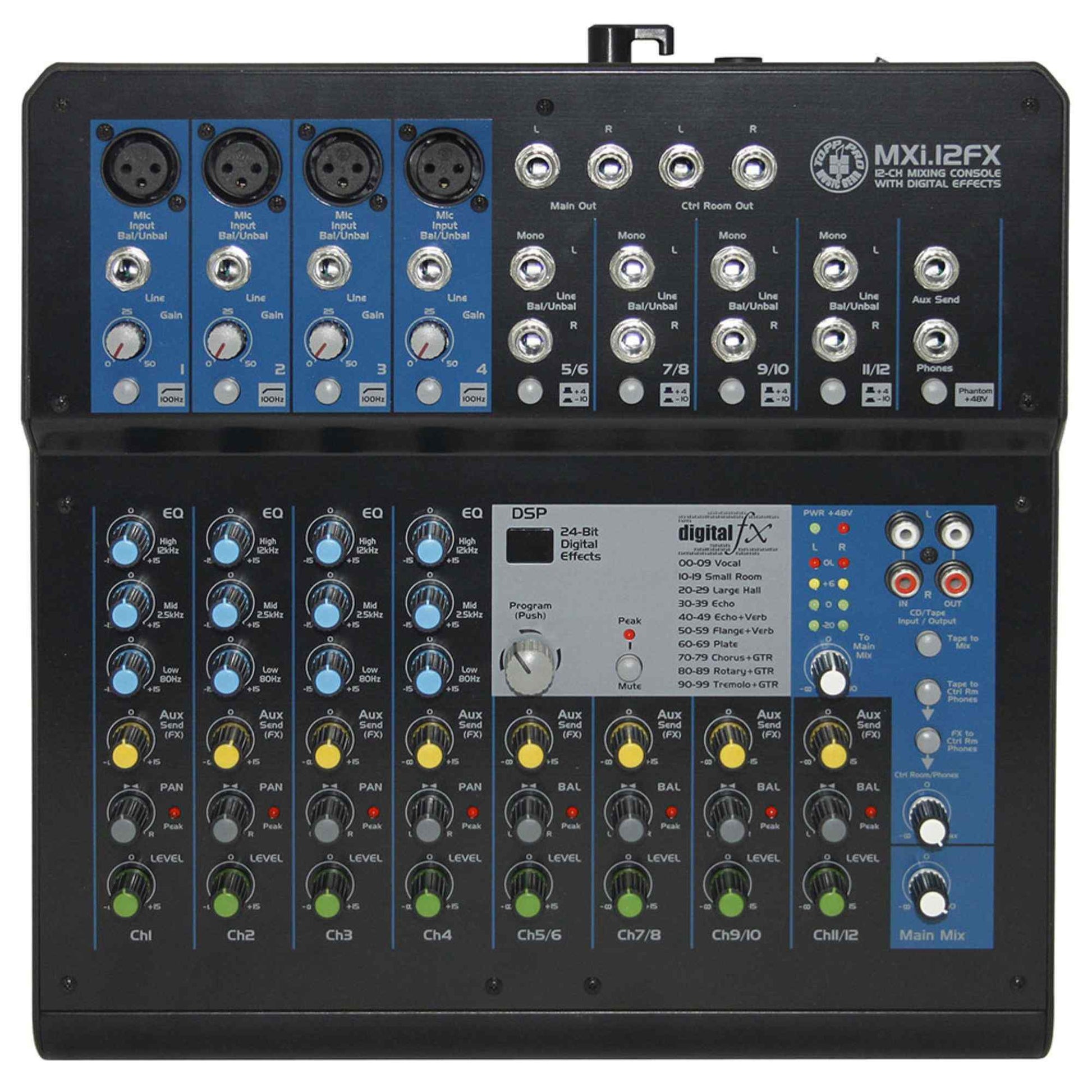

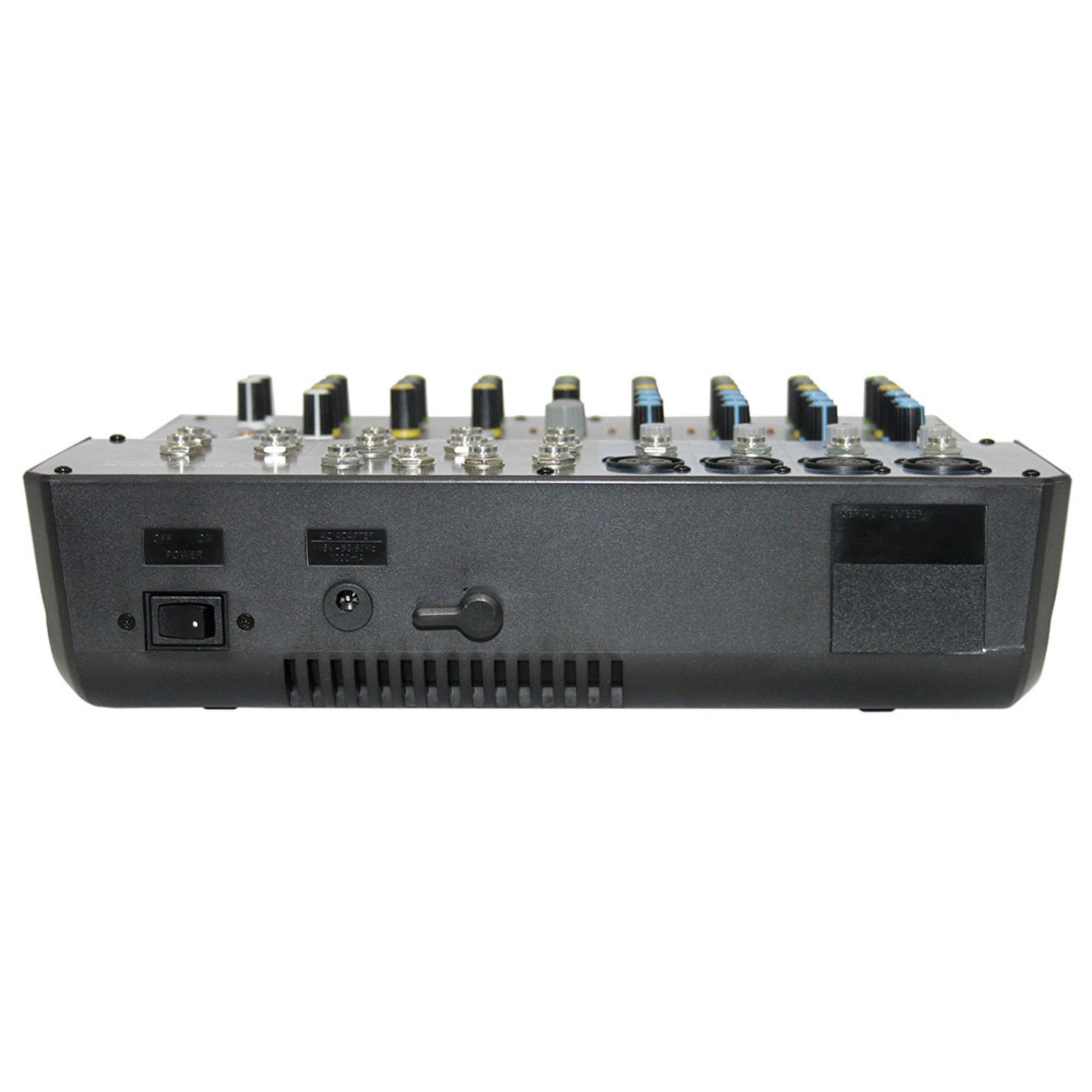

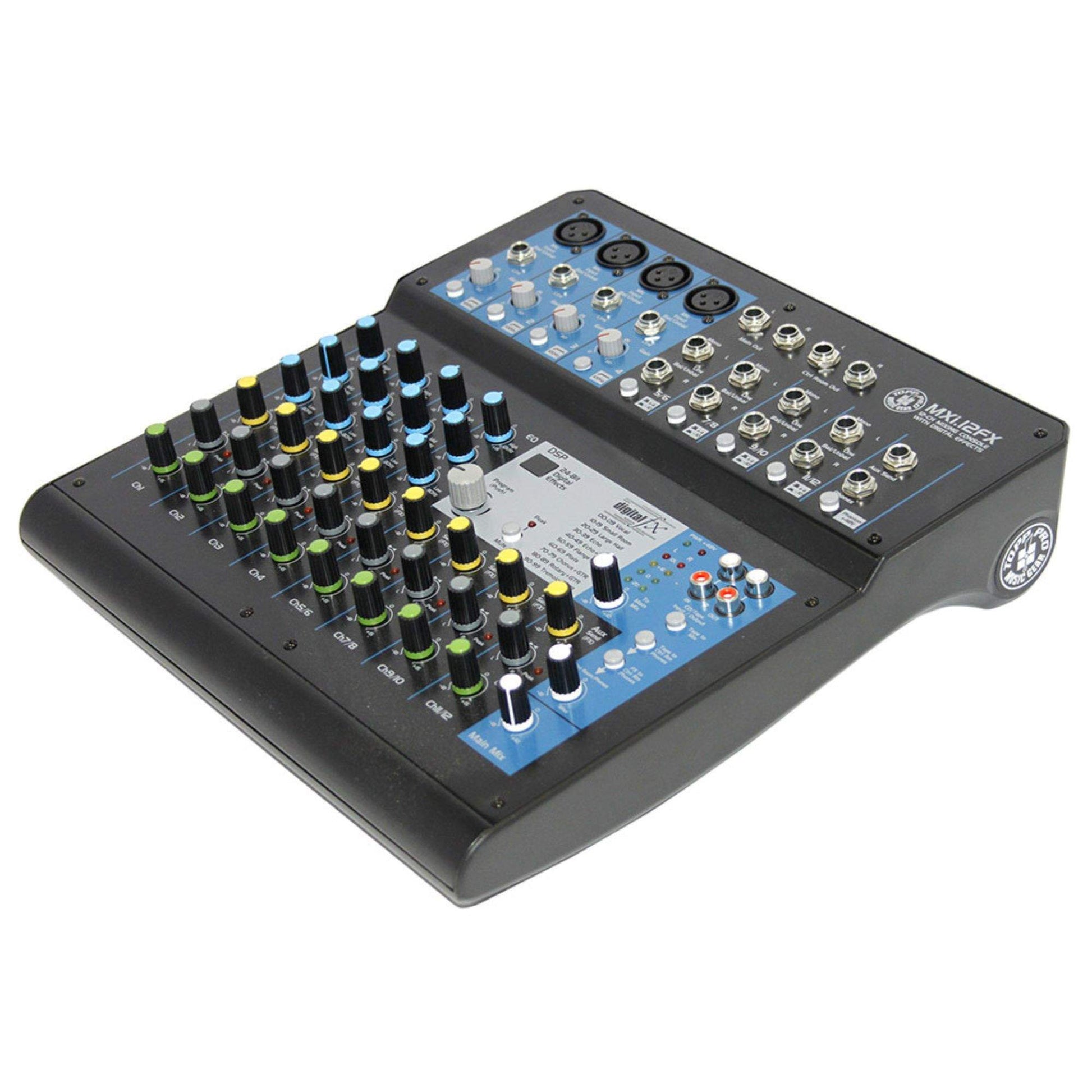

Alto Professional MXi.12FX

Mixer Type

12-Channel Analog Mixer with Digital Effects

Phantom Power

+48V DC (XLR Pin 2/3)

Power Consumption

18W (via 18V AC 1000mA Adaptor)

Audio Performance

Frequency Response

20 Hz to 50 kHz (0, -1 dB) | Up to 130 kHz (-3 dB)

Mic EIN

-119 dBu (A-weighted)

Max Gain (Mic to Main)

74 dBu

THD + N

0.003% (A-weighted)

Channel Strip & EQ

High Pass Filter

75 Hz, 18 dB/oct (Channels 1-4)

EQ (Mono Channels)

• High: ±15 dB @ 12 kHz
• Mid: ±12 dB @ 2.5 kHz
• Low: ±15 dB @ 80 Hz

Gain Range (Mono)

Mic: 0 to 48 dB | Line: -33 to +15 dB

Digital Effects (DFX)

Presets

100 Selectable Presets

Effect Types

Vocal, Hall, Room, Echo, Flange, Chorus, Rotary

Display

Dual 7-segment display with Peak/Mute LEDs

Physical Specifications

Dimensions

271 x 259 x 54.3 mm

Weight

1.9 kg (Net)

Main VU Meters

4-segment LED (Clip @ +20 dBu)
