Key Specifications

Product Type

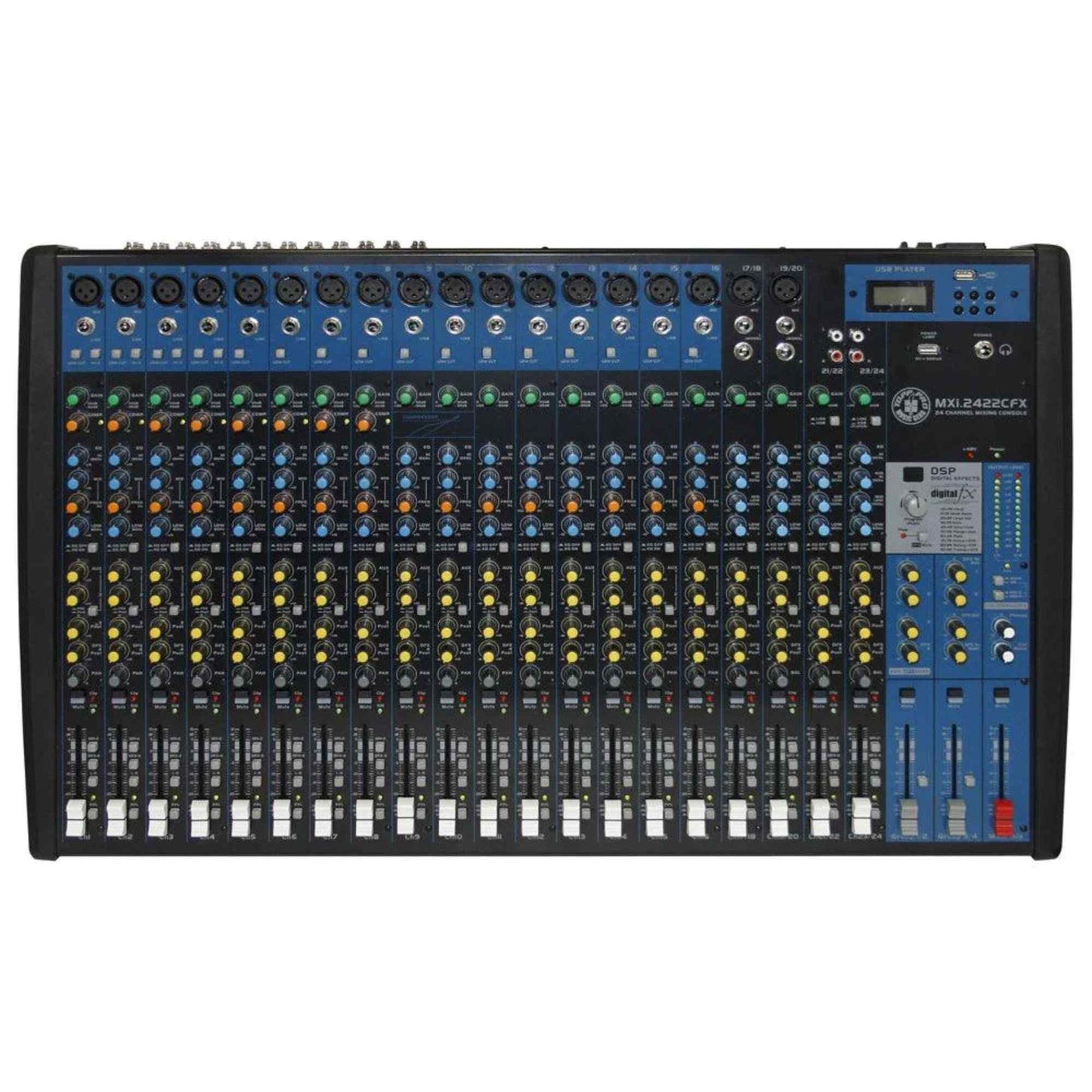

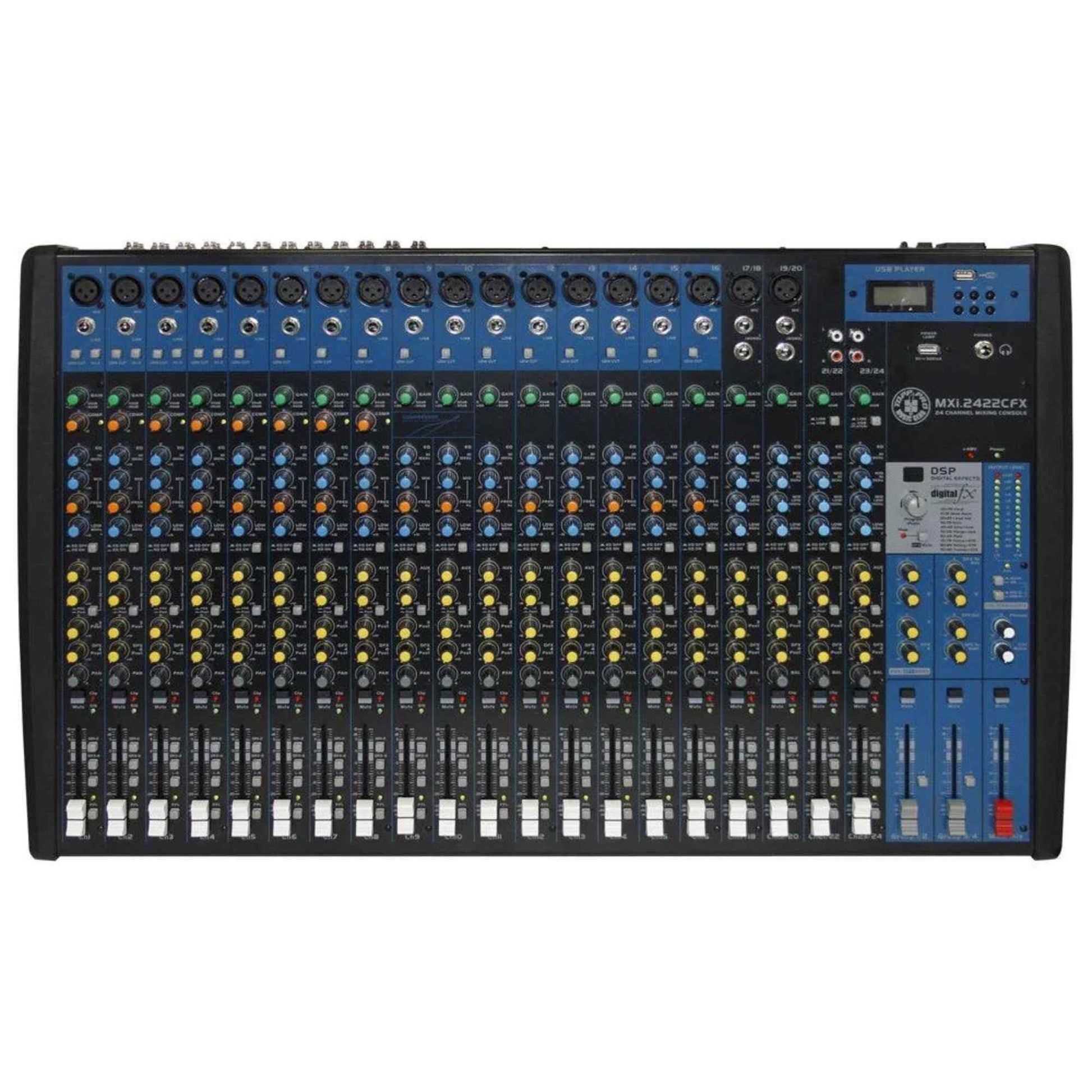

Professional Analog Mixing Console with DSP

Signal-to-Noise Ratio (SNR)

> 100 dB (Mic Input)

Power Supply Type

Switching Power Supply (40W Consumption)

Audio Performance

Frequency Response

20 Hz to 50 kHz (+/- 3 dB)

Mic Gain Range

0 dB to 50 dB

Total Harmonic Distortion

< 0.01% @ +4 dBu, 1 kHz (Mic)

Max Output Level

+20 dBu (Main Mix / AUX / SUB Sends)

Equalization (EQ) Section

Mono Channel EQ

• High: ± 15 dB @ 12 kHz
• Sweepable Mid: ± 15 dB @ 100 Hz - 8 kHz
• Low: ± 15 dB @ 80 Hz

Stereo Channel EQ

• 4-Band: High (12k), High-Mid (3k), Low-Mid (500Hz), Low (80Hz)

DSP Effects Section

DSP Resolution

24-bit A/D and D/A Converters

Presets

100 (Vocal, Hall, Echo, Plate, Multi-FX)

External Control

Footswitch jack for Mute control

Impedance

Microphone Input

1.4k Ohms

Line Inputs

10k Ohms or Greater

Outputs

120 Ohms
