Key Specifications

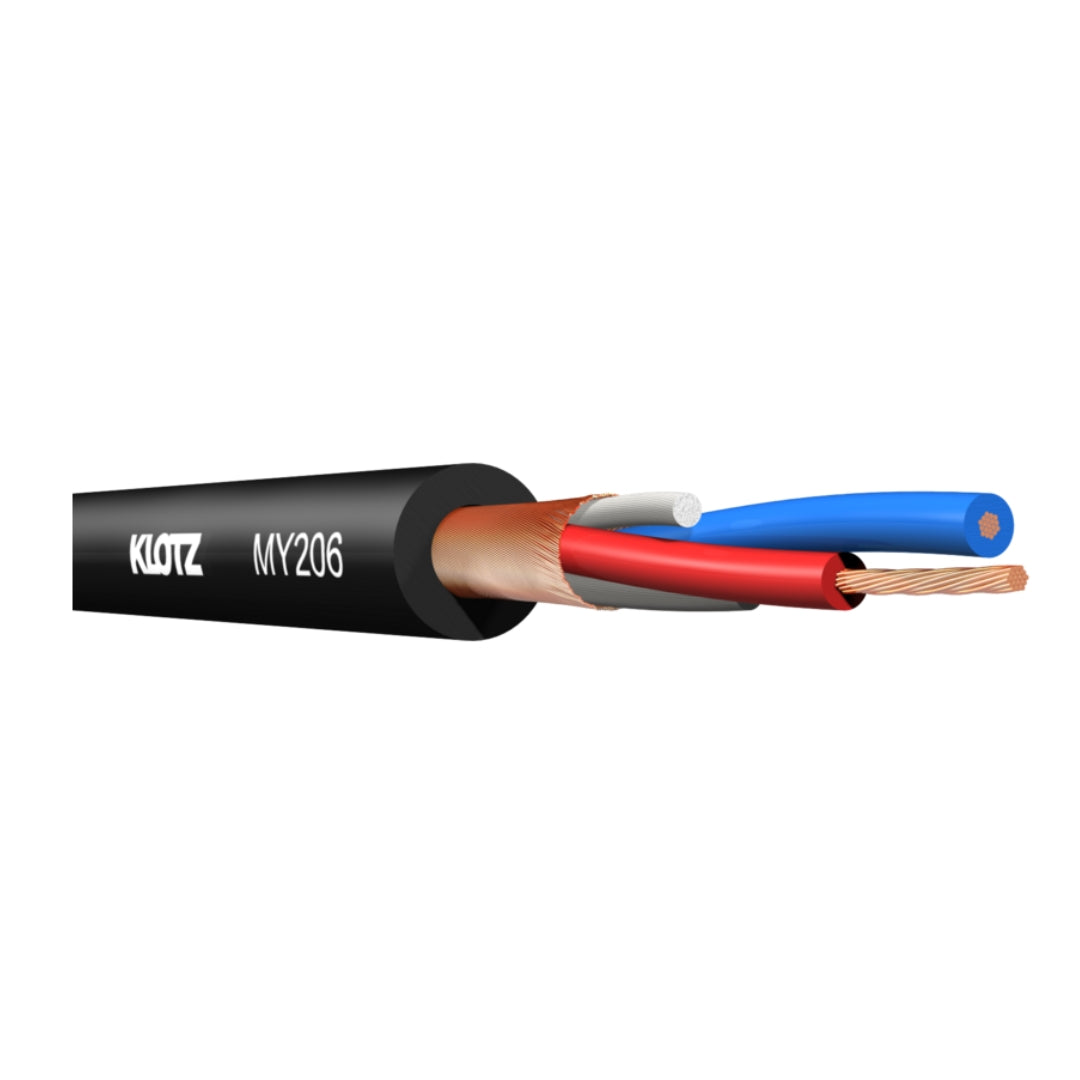

Conductor Construction

Stranded Bare Copper, 28 × 0.10 mm

Conductor Cross Section

0.22 mm²

Insulation

Polyethylene (PE)

Core Arrangement

2 Cores + Twisted Cotton Tracers

Shielding

Bare Copper Spiral Shield

Outer Jacket

PVC, Matte

Outer Diameter

6.15 mm

Operating Temperature

-25°C to +70°C

Minimum Bending Radius (Installed)

5 × Overall Diameter

Minimum Bending Radius (Mobile Use)

10 × Overall Diameter

Hazardous Substances

Complies with EU RoHS 2011/65/EU

CE Conformity

Complies with EU LVD 2006/95/EG

Flame Retardancy

IEC 60332-1-2

Heat of Combustion

760 kJ/m

Conductor Resistance

< 85 Ω/km

Capacitance (Conductor / Conductor)

60 pF/m

Capacitance (Conductor / Shield)

110 pF/m

Insulation Resistance

> 10 GΩ × km
