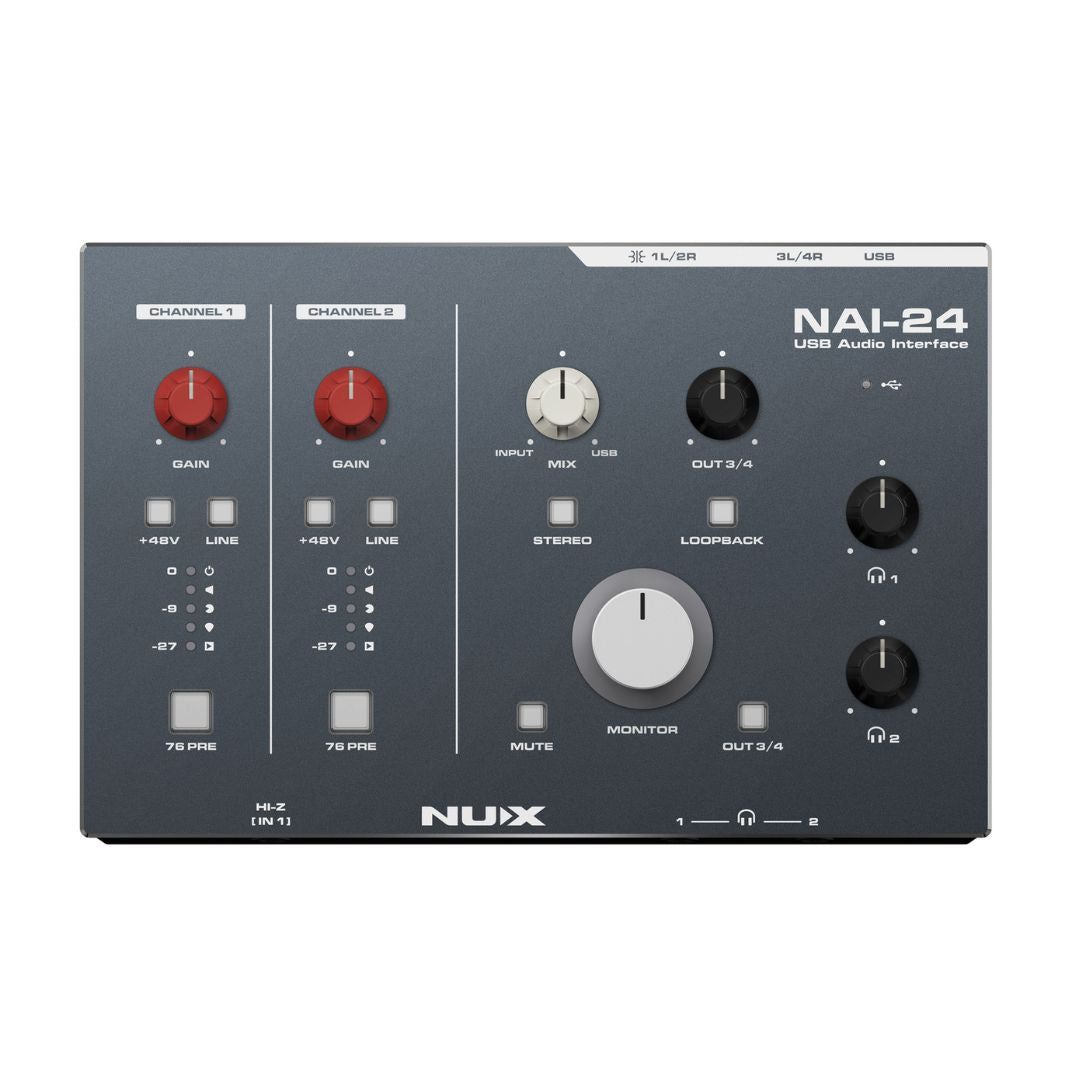

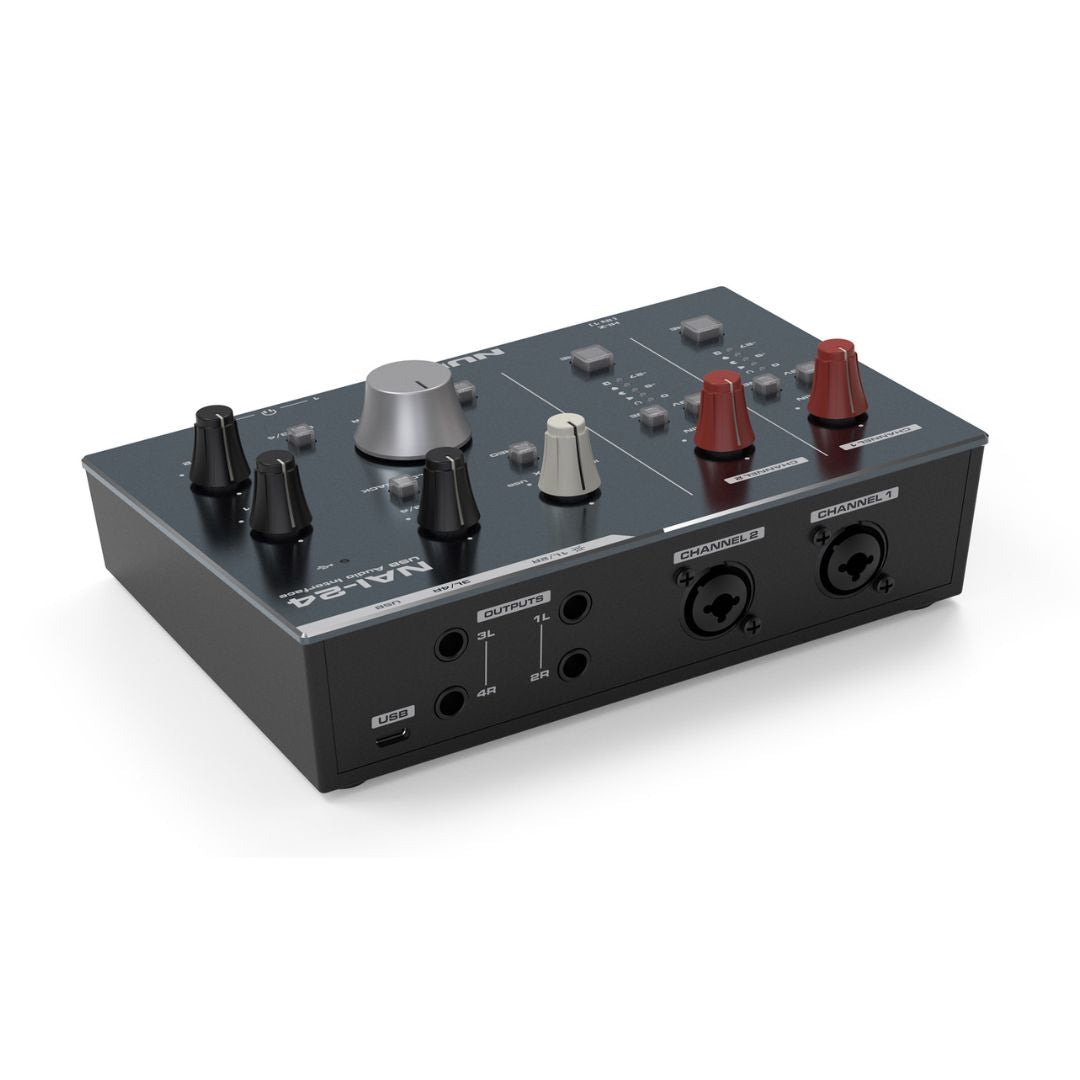

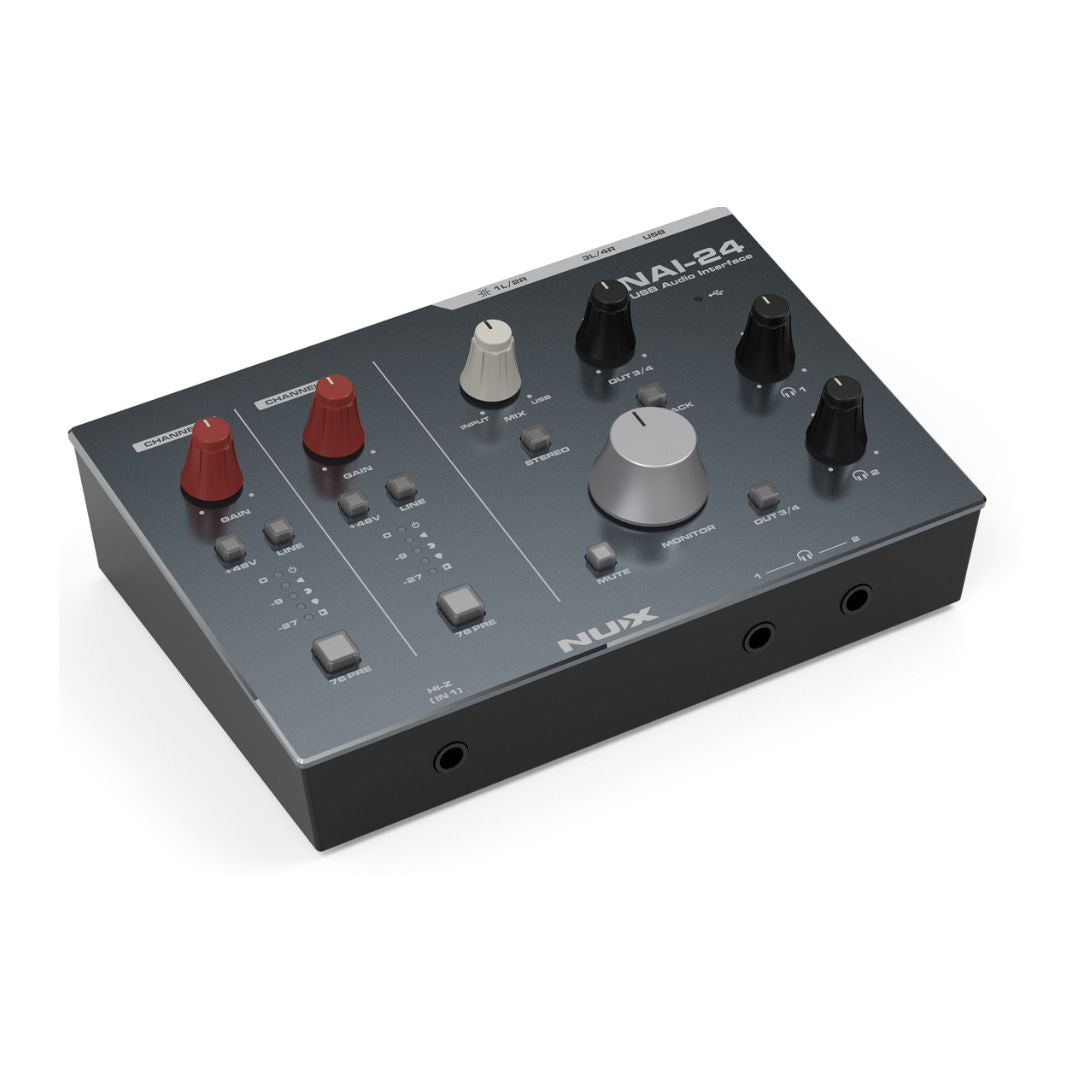

NUX NAI-24
NUX NAI-24
|
Key Specifications |
|
|
Product / Accessory Type |
Professional Multi-Channel USB Audio Interface |
|
Microphone Input (MIC IN) Specifications |
|
|
Microphone Input Dynamic Range |
114 dB (A-Weighted) |
|
Microphone Input Frequency Response |
20 Hz to 20,000 Hz (20.00 kHz, ±0.1 dB) |
|
Microphone Input Total Harmonic Distortion (THD+N) |
0.002% at -1 dBFS (at Minimum Gain) |
|
Equivalent Input Noise (EIN) |
-126 dB (A-Weighted) |
|
Microphone Input Maximum Signal Level |
+6.0 dBu (at Minimum Gain) |
|
Microphone Input Gain Range |
5.4 dB to 63.0 dB |
|
Microphone Input Impedance |
2.4 kΩ |
|
Line Input (LINE IN) Specifications |
|
|
Line Input Dynamic Range |
114 dB (A-Weighted) |
|
Line Input Frequency Response |
20 Hz to 20,000 Hz (20.00 kHz, ±0.12 dB) |
|
Line Input Total Harmonic Distortion (THD+N) |
0.003% at -1 dBFS (at Minimum Gain) |
|
Line Input Maximum Signal Level |
+26.0 dBu (at Minimum Gain) |
|
Line Input Gain Range |
-12.6 dB to 45.0 dB |
|
Line Input Impedance |
21 kΩ |
|
Instrument Input (HI-Z) Specifications |
|
|
Nominal Instrument Input Level |
-10.0 dBu |
|
Instrument Input Impedance |
1 MΩ (Hi-Z Input) |
|
Analog Line Output Specifications (1L / 2R & 3L / 4R) |
|
|
Line Outputs 1L / 2R Specifications |
Dynamic Range: 112 dB (Balanced, 600 Ω Load, A-Weighted); |
|
Line Outputs 3L / 4R Specifications |
Dynamic Range: 112 dB (Balanced, 200 kΩ Load, A-Weighted); |
|
Headphone Output Specifications |
|
|
Headphone Output Dynamic Range |
104 dB (A-Weighted) |
|
Headphone Output Frequency Response |
20 Hz to 20,000 Hz (20.00 kHz, ±0.25 dB) |
|
Headphone Output Total Harmonic Distortion (THD+N) |
0.005% at -5 dBFS |
|
Headphone Output Power |
30 mW (into 32 Ω Load) |
|
Dimensions & Weight Specifications |
|
|
Product Dimensions (L×W×H) |
194.00 mm x 128.00 mm x 67.00 mm (7.64" x 5.04" x 2.64") |
|
Product Net Weight |
722.00 g (0.722 kg / 1.59 lbs) |
