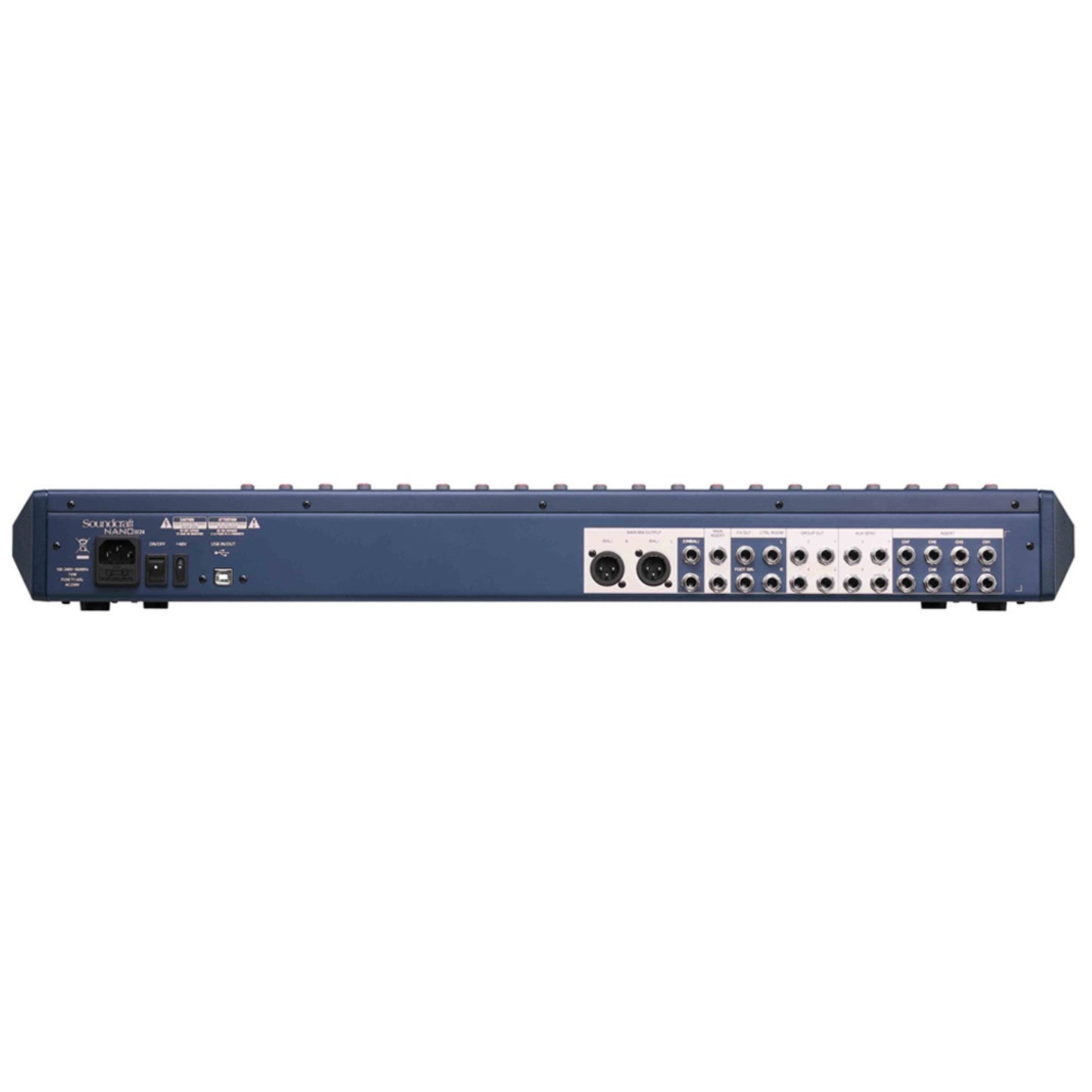

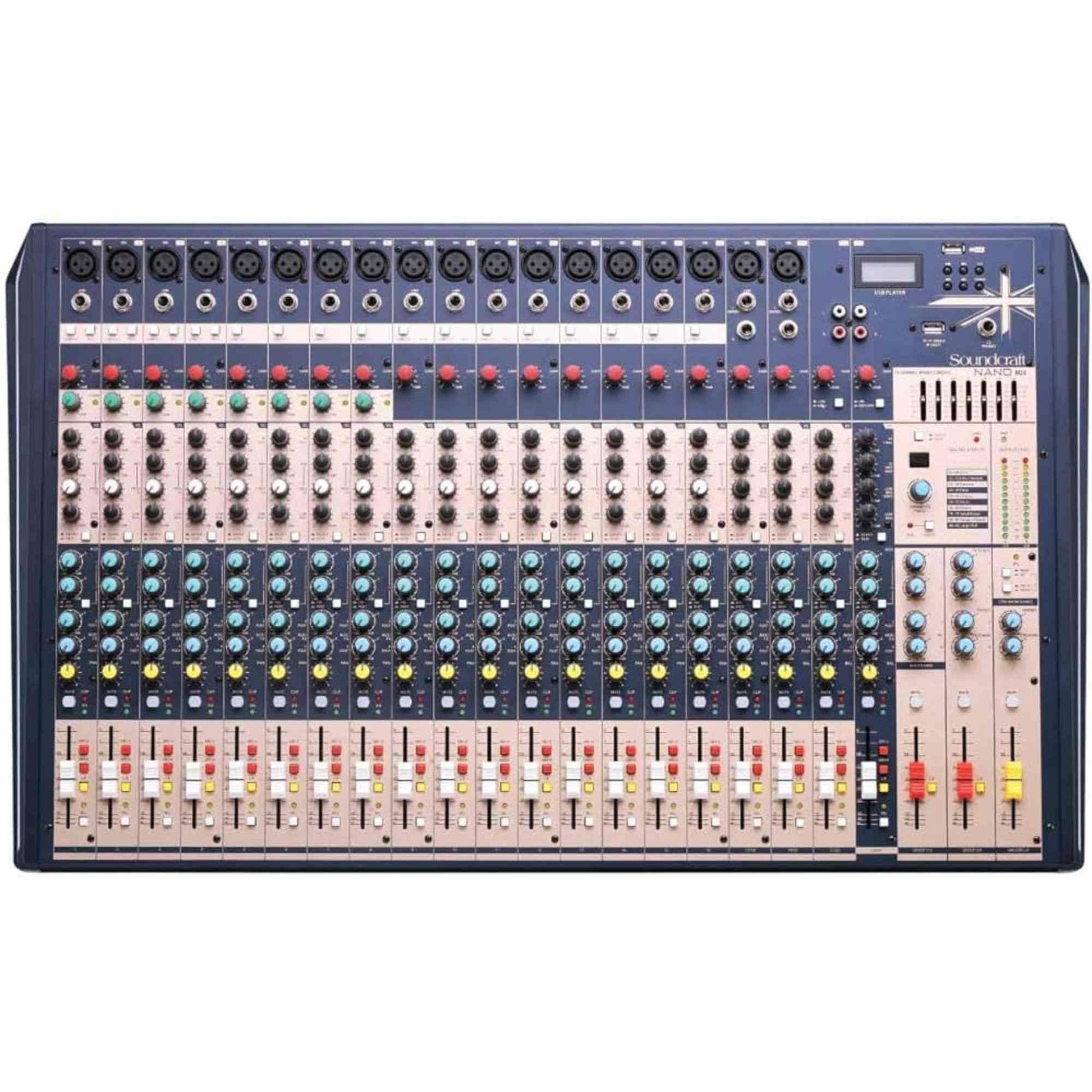

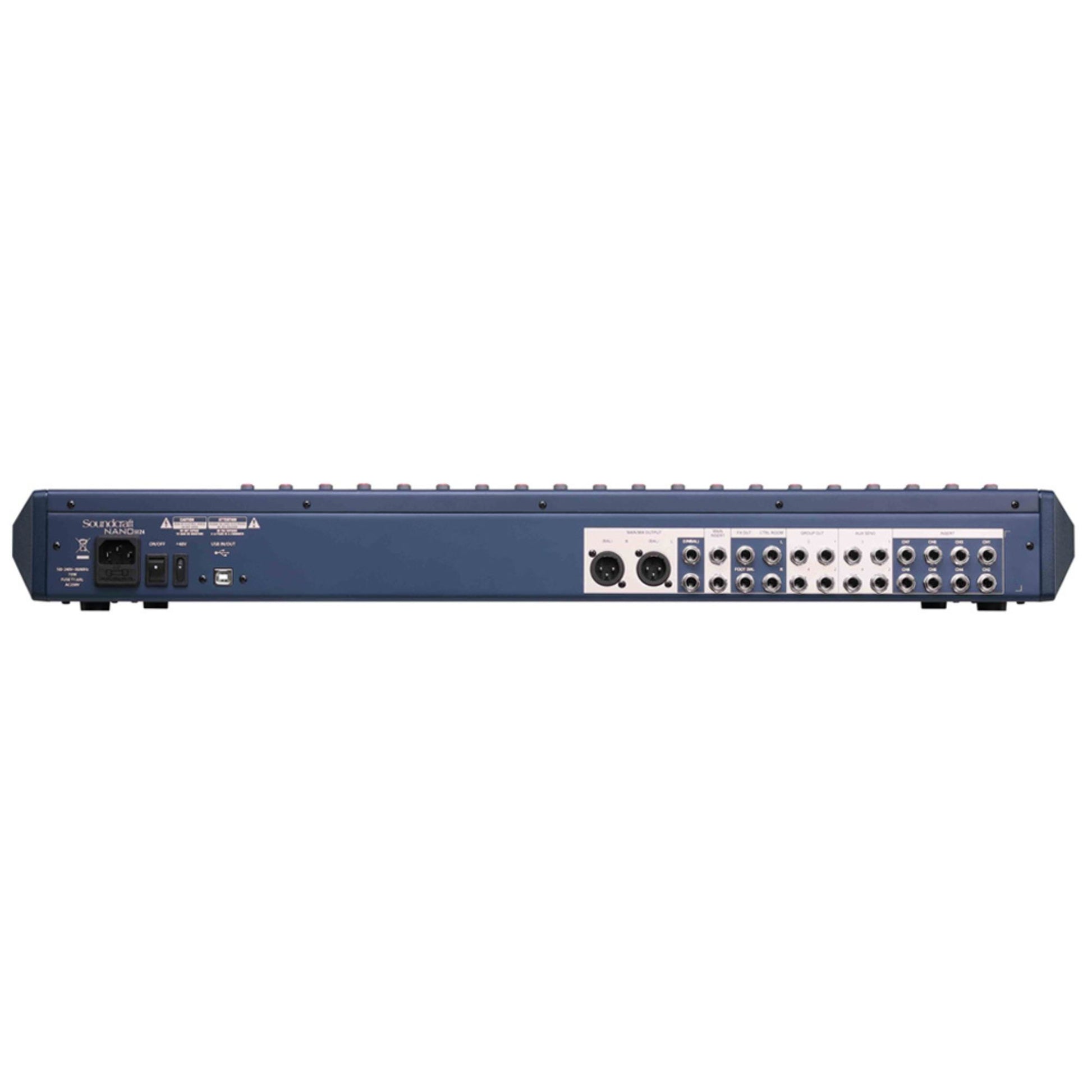

Nano M24-EU

18 XLR Ultra-low noise discrete MIC preamp with +48V phantom power.
16 Mono input channels and 4 stereo input channels.
Each input channel accepts balanced XLR MIC input and TRS LINE input.
Low cut for each MIC input.
Each mono input channel is equipped with 3-band EQ, sweepable MID and PEAK LED.
2 stereo input channels accept mono XLR or TRS input; 2 stereo input channels accepts RCA input.
Each stereo input channel is equipped with 4-band EQ and PEAK LED.

SOUNDCRAFT

₱55,950.00 VAT INC.

₱55,950.00

UNIT: PIECE/S

Product Code: SKU:SCF-NANOM24-CHN-963

18 XLR Ultra-low noise discrete MIC preamp with +48V phantom power.
16 Mono input channels and 4 stereo input channels.
Each input channel accepts balanced XLR MIC input and TRS LINE input.
Low cut for each MIC input.
Each mono input channel is equipped with 3-band EQ, sweepable MID and PEAK LED.
2 stereo input channels accept mono XLR or TRS input; 2 stereo input channels accepts RCA input.
Each stereo input channel is equipped with 4-band EQ and PEAK LED.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

SOUNDCRAFT Nano M24-EU

Key Specifications
Product Model	Soundcraft M24 (Multimedia Series)
Product Type	Professional 24-Channel Multimedia Analog Mixer
Acoustic Fidelity	20 Hz to 20 kHz (< 1 dB)
THD + N	< 0.006% (@ 1 kHz)
Input & Output Impedance
Mic Input	1.8 kΩ
Line / Stereo Input	23.6 kΩ / 20 kΩ
Sends (Mix/Aux/Insert)	120 Ω
Digital & Multimedia
USB Audio Interface	USB 2.0 Type-B (2-in, 2-out) \| 16-bit
USB Sampling Rates	32 kHz / 44.1 kHz / 48 kHz
USB Player/Recorder	Integrated (44.1 kHz Recording rate)
Dynamics & Levels
Compressor	Gain: 0–9 dB \| Threshold: 20 dB → 5 dB
Max Input Levels	Mic: +20 dBu \| Line/Stereo: +30 dBu
Headphone Output	150 mW (@ 200 Ω)
Physical & Electrical
Dimensions (WxDxH)	724.62 x 425.00 x 88.34 mm
Net Weight	9.18 kg (20.24 lbs)
Mains Voltage	100–240 VAC (Universal Input)
