Key Specification

Product Title

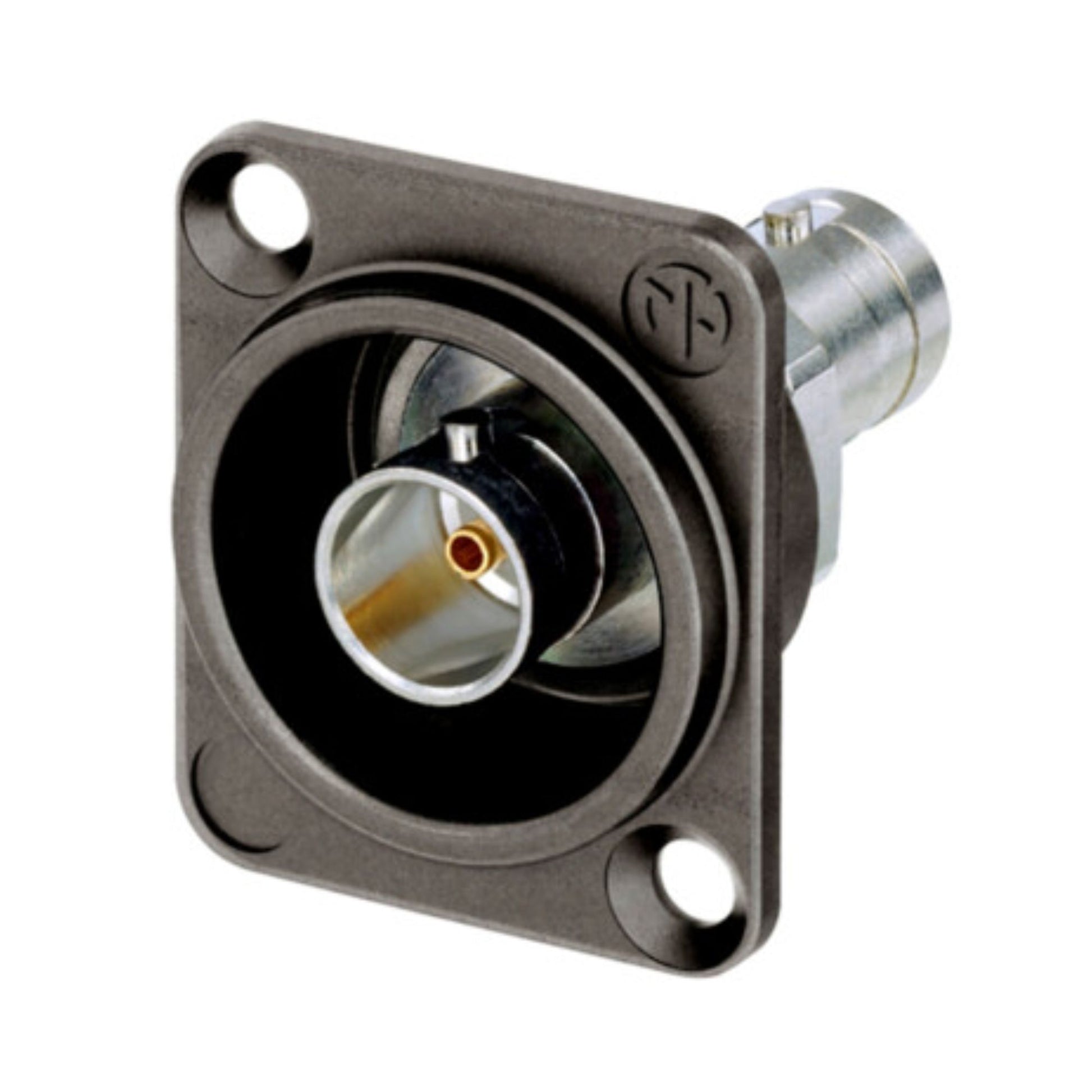

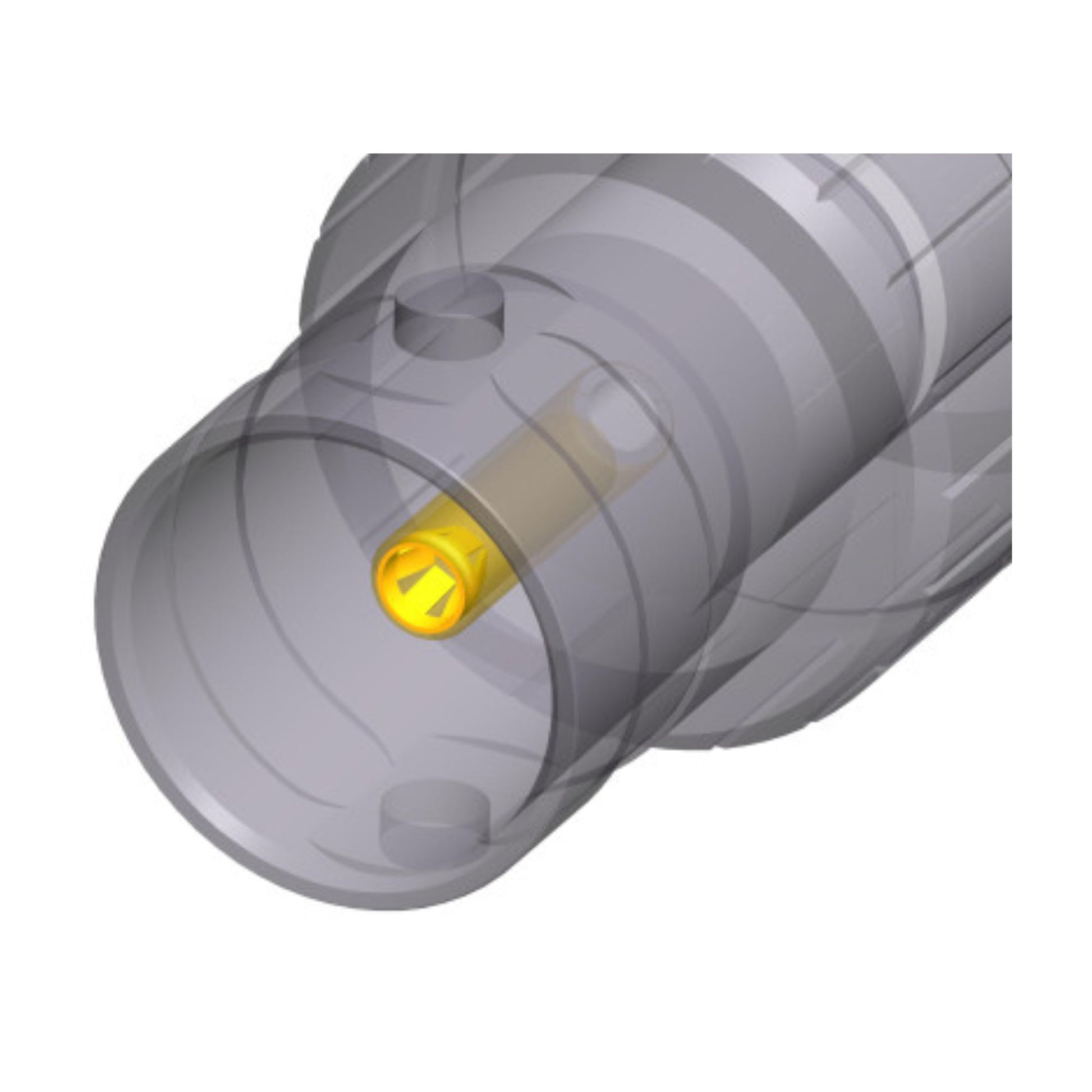

NBB75DFGX

Connection Type

BNC 75 Ω

Gender

Female

Contact Resistance (Inner)

≤ 3 mΩ

Contact Resistance (Outer)

≤ 2 mΩ

Dielectric Strength

1.5 kVdc

Impedance

75 Ω

Insulation Resistance

> 5 GΩ

Rated Voltage

< 50 V

VSWR

≤1.06 / >30 dB up to 6 GHz
≤1.13 / >24 dB up to 12 GHz
≤1.22 / >20 dB up to 18 GHz

Signal Type

UHD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV

Insertion Force

< 25 N

Lifetime

> 1000 mating cycles

Locking Device

Bayonet

Mounting Direction

Front mounting

Chassis Shape

D

Contacts

Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)

Insert

PTFE

Shell

Polyacetal (POM) (Insulation shell)

Shell Plating

Antraloy

D-Shape Housing

Zinc diecast (ZnAl4Cu1)

Temperature Range

-30 °C to +85 °C
