Key Specification

Product Title

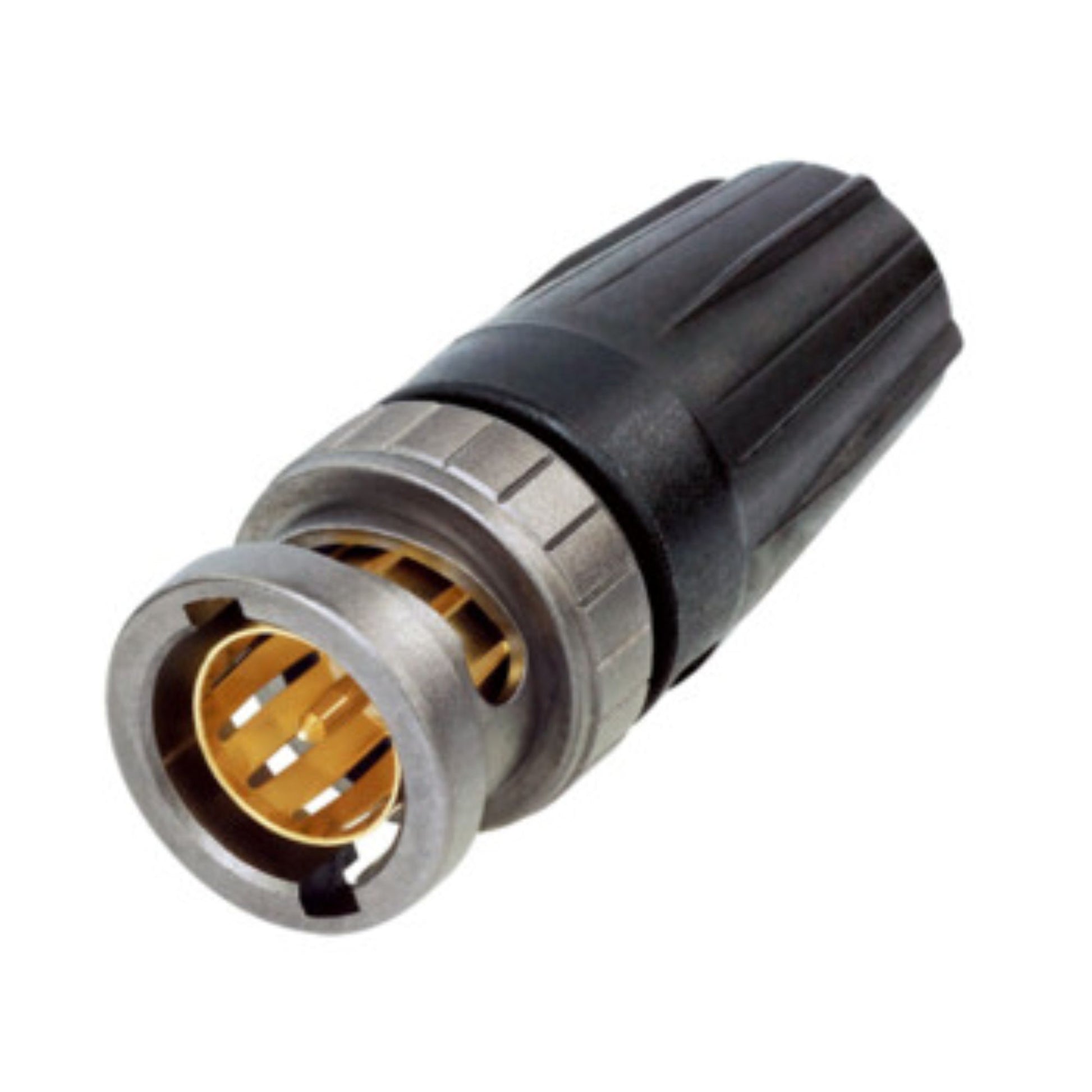

NBNC75BTU11X

Connection Type

BNC 75 Ω

Gender

Male

Contact Resistance (Inner)

≤ 3 mΩ

Contact Resistance (Outer)

≤ 2 mΩ

Dielectric Strength

1.5 kVdc

Impedance

75 Ω

Insulation Resistance

> 5 GΩ

Rated Voltage

< 50 V

VSWR

≤1.06 / >30 dB up to 6 GHz
≤1.13 / >24 dB up to 12 GHz
≤1.22 / >20 dB up to 18 GHz

Cable O.D.

7.3 mm

Cable Retention

> 30 N (Center)

Crimp Size (Shield)

7.36 Hex crimp (shield)

Crimp Size (Pin)

1.07 crimp

Insertion Force

< 25 N

Lifetime

> 1000 mating cycles

Locking Device

Bayonet

Cable Anchoring

Jacket crimping

Contacts

Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)

Shell

Brass (CuZn39Pb3)

Shell Plating

Antraloy

Insert

PP

Temperature Range

-30 °C to +85 °C

Contact Crimpability

Complies with IEC 60803 and IEC 60352-2
