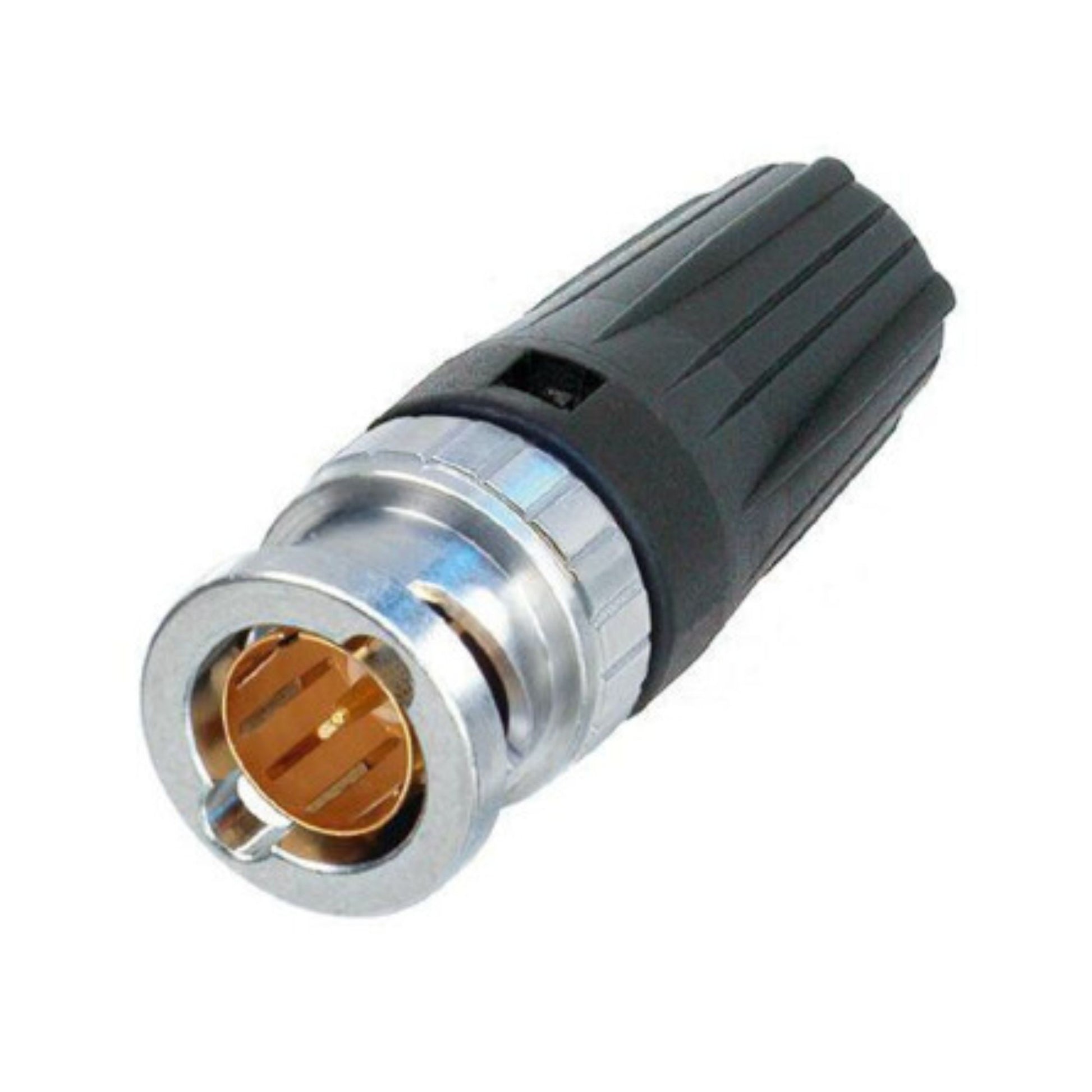

NBNC75BWU13

“rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
True 75 Ω design meets the stringent HDTV / DVD requirements
Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
Snug-fit center pin insert provides tactile feedback
Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies

NEUTRIK

₱300.00 VAT INC.

₱300.00

UNIT: PIECE/S

Product Code: SKU:NEUT-NBNC75BWU-CHN-3875

“rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
True 75 Ω design meets the stringent HDTV / DVD requirements
Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
Snug-fit center pin insert provides tactile feedback
Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

NEUTRIK NBNC75BWU13

Key Specification
Product Title	NBNC75BWU13
Connection Type	BNC 75 Ω
Gender	Male
Contact Resistance (Inner)	≤ 3 mΩ
Contact Resistance (Outer)	≤ 2 mΩ
Dielectric Strength	1.5 kVdc
Impedance	75 Ω
Insulation Resistance	> 5 GΩ
Rated Voltage	< 50 V
VSWR	≤1.050/>32 dB up to 1 GHz ≤1.065/>30 dB up to 2 GHz ≤1.100/>26 dB up to 3 GHz
Cable O.D.	7.3 mm
Cable Retention	> 30 N (Center)
Crimp Size (Shield)	7.36 Hex crimp (shield) acc. MIL22520/5-41(A)
Crimp Size (Pin)	1.6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion Force	< 25 N
Lifetime	> 1000 mating cycles
Locking Device	Bayonet
Cable Anchoring	Jacket crimping
Contacts	Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert	PTFE
Shell	Brass (CuZn39Pb3)
Shell Plating	Optalloy®
Temperature Range	-30 °C to +85 °C
Contact Crimpability	Complies with IEC 60803 and IEC 60352-2
