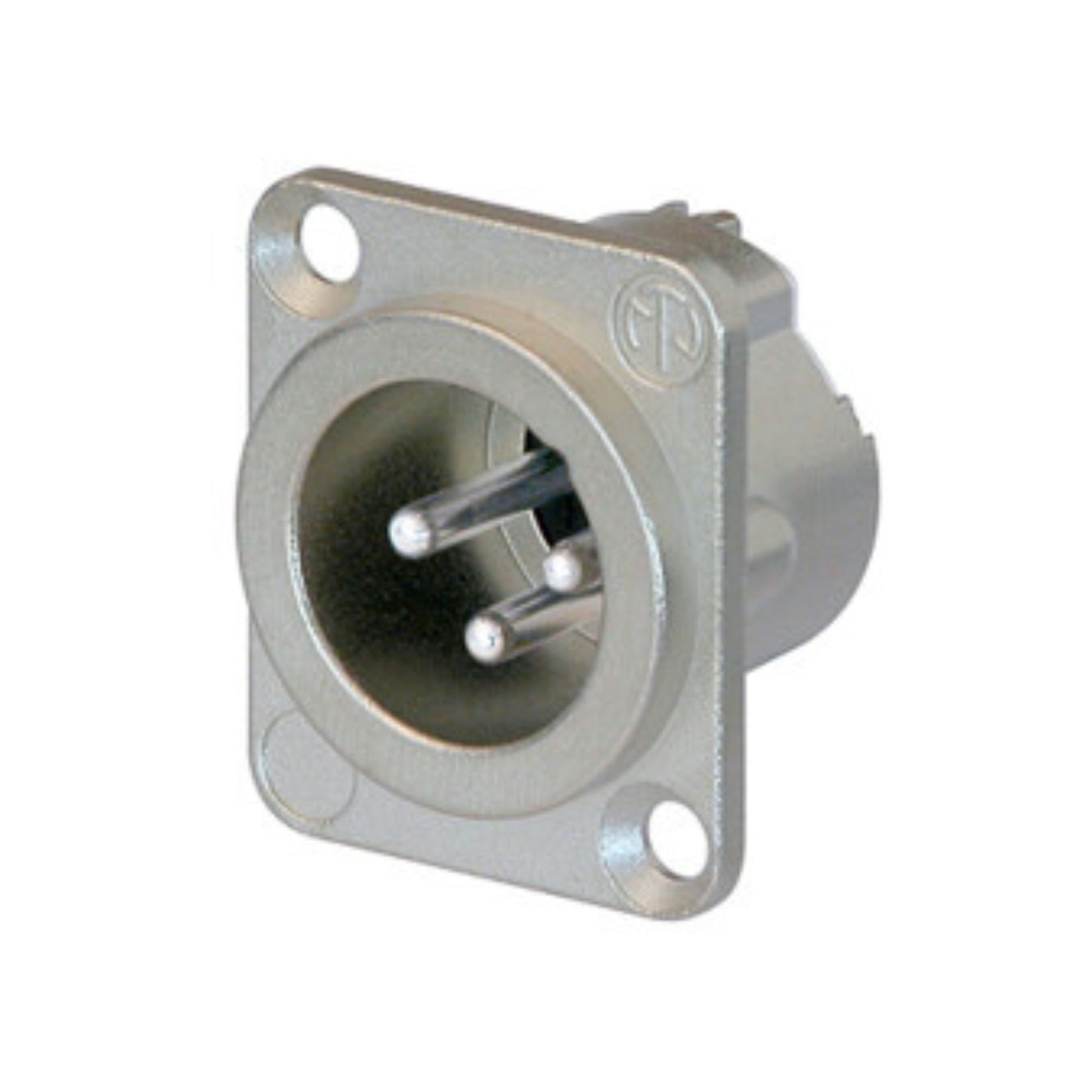

NC3MD-LX

All metal housing offers best overall RF protection and electromagnetic shielding
Duplex ground contact for excellent contact integrity between chassis and cable connector
Male connector's retention bar replaces plastic design with all metal version improving pull-out force
Larger solder contacts for easier termination
Optional connection to easily join pin1 to chassis ground
D-style housing provides installation compatibility with industry standard D mounting dimensions

NEUTRIK

₱240.00 VAT INC.

₱240.00

UNIT: PIECE/S

Product Code: SKU:NEUT-NC3MDLX-CHN-4523

All metal housing offers best overall RF protection and electromagnetic shielding
Duplex ground contact for excellent contact integrity between chassis and cable connector
Male connector's retention bar replaces plastic design with all metal version improving pull-out force
Larger solder contacts for easier termination
Optional connection to easily join pin1 to chassis ground
D-style housing provides installation compatibility with industry standard D mounting dimensions

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

NEUTRIK NC3MD-LX

Key Specifications
Product Title	NC3MD-LX
Connection Type	XLR
Gender	Male
Electrical
Capacitance Between Contacts	≤ 4 pF
Contact Resistance	≤ 5 mΩ
Dielectric Strength	1.5 kVdc
Insulation Resistance	> 10 GΩ (initial)
Rated Current per Contact	16 A
Rated Voltage	< 50 V
Mechanical
Insertion Force	≤ 20 N
Withdrawal Force	≤ 20 N
Lifetime	> 1000 mating cycles
Wire Size	Max. 2.5 mm² / Max. 14 AWG
Wiring	Solder contacts
Locking Device	Latch lock
Chassis Shape	D
Material
Contact Plating	2 µm Ag
Contacts	Brass (CuZn35Pb2)
Insert	Polyamide (PA66)
Locking Element	Steel Ck67
Shell	Zinc Diecast (ZnAl4Cu1)
Shell Plating	Nickel
Environmental
Flammability	UL 94 V-0
Standard Compliance	IEC 61076-2-103
Protection Class	IP 40
Solderability	Complies with IEC 68-2-20
Temperature Range	-30 °C to +80 °C
