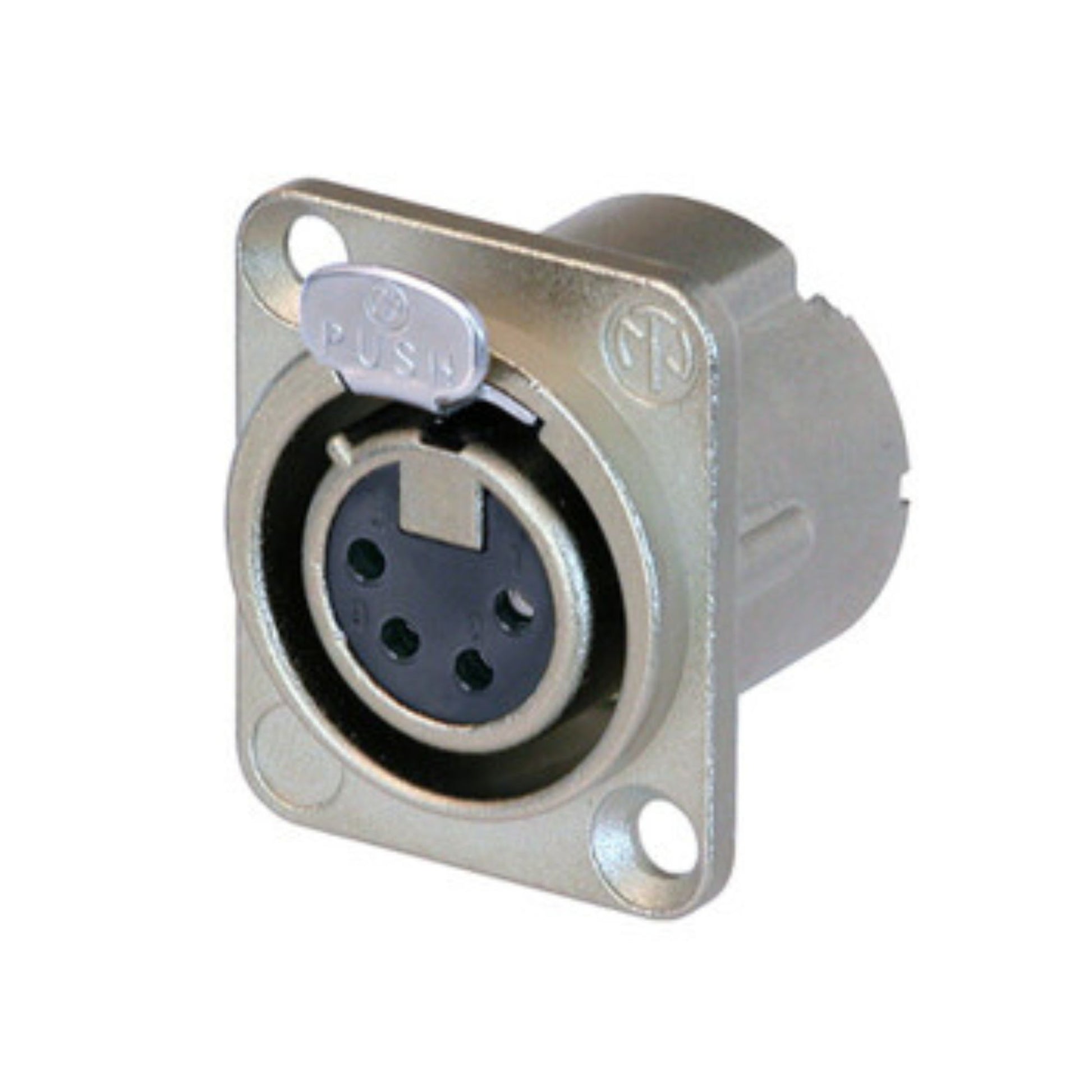

NC4FD-LX

All metal housing offers best overall RF protection and electromagnetic shielding
Duplex ground contact for excellent contact integrity between chassis and cable connector
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Larger solder contacts for easier termination
Optional connection to easily join pin1 to chassis ground
D-style housing provides installation compatibility with industry standard D mounting dimensions

NEUTRIK

₱400.00 VAT INC.

₱400.00

UNIT: PIECE/S

Product Code: SKU:NEUT-NC4FDLX-CHN-5779

All metal housing offers best overall RF protection and electromagnetic shielding
Duplex ground contact for excellent contact integrity between chassis and cable connector
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Larger solder contacts for easier termination
Optional connection to easily join pin1 to chassis ground
D-style housing provides installation compatibility with industry standard D mounting dimensions

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

NEUTRIK NC4FD-LX

Key Specifications
Product Title	NC4FD-LX
Connection Type	XLR
Gender	Female
Electrical
Capacitance Between Contacts	≤ 7 pF
Contact Resistance	≤ 5 mΩ
Dielectric Strength	1.5 kVdc
Insulation Resistance	> 10 GΩ (initial)
Rated Current per Contact	10 A
Rated Voltage	< 50 V
Mechanical
Insertion Force	≤ 20 N
Withdrawal Force	≤ 20 N
Lifetime	> 1000 mating cycles
Wire Size	Max. 1.5 mm² / Max. 16 AWG
Wiring	Solder contacts
Locking Device	Latch lock
Chassis Shape	D
Material
Contact Plating	2 µm Ag
Contacts	Brass (CuZn39Pb3)
Insert	PA66
Locking Element	Steel Ck67
Locking Element Plating	Nickel
Shell	Zinc Diecast (ZnAl4Cu1)
Shell Plating	Nickel
Environmental
Flammability	UL 94 V-0
Standard Compliance	IEC 61076-2-103
Protection Class	IP 40
Solderability	Complies with IEC 68-2-20
Temperature Range	-30 °C to +80 °C
