Key Specifications

Product Title

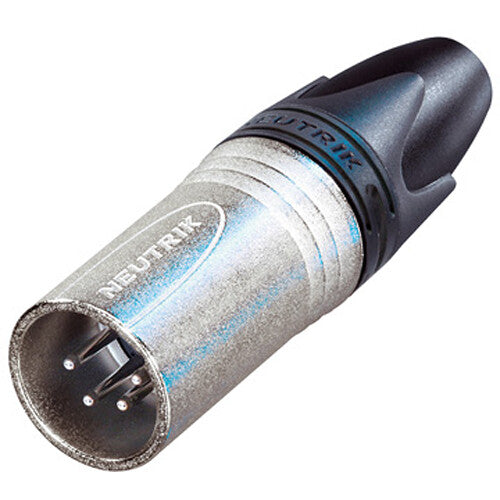

NC4MXX

Connection Type

XLR

Gender

Male

Electrical

Capacitance Between Contacts

≤ 7 pF

Contact Resistance

≤ 3 mΩ

Dielectric Strength

1.5 kVdc

Insulation Resistance

> 10 GΩ (initial)

Rated Current per Contact

10 A

Rated Voltage

< 50 V

Mechanical

Cable O.D.

3.5 - 8.0 mm

Insertion Force

≤ 20 N

Withdrawal Force

≤ 20 N

Lifetime

> 1000 mating cycles

Wire Size

Max. 1.5 mm² / Max. 16 AWG

Wiring

Solder contacts

Locking Device

Latch lock

Material

Boot

Polyurethane

Contact Plating

2 µm Ag over 2 µm Ni

Contacts

Brass (CuZn39Pb3)

Insert

Polyamide (PA66)

Locking Element

Zinc Diecast (ZnAl4Cu1)

Shell

Zinc Diecast (ZnAl4Cu1)

Shell Plating

Nickel

Strain Relief

Polyacetal (POM)

Environmental

Flammability

UL 94 V-0

Standard Compliance

IEC 61076-2-103

Protection Class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature Range

-30 °C to +80 °C
