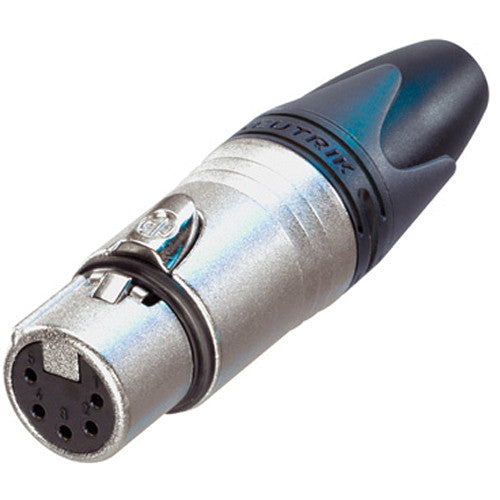

NC5FXX

Unique cage design of female contact for low contact resistance and high integrity
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Female connector with improved solid metal latch which is larger and easier to handle
Additional ground spring contacts for better shell ground continuity
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster

NEUTRIK

₱570.00 VAT INC.

₱570.00

UNIT: PIECE/S

Product Code: SKU:NEUT-NC5FXX-CHN-1274

Unique cage design of female contact for low contact resistance and high integrity
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Female connector with improved solid metal latch which is larger and easier to handle
Additional ground spring contacts for better shell ground continuity
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

NEUTRIK NC5FXX

Key Specifications
Product Title	NC5FXX
Connection Type	XLR
Gender	Female
Electrical
Capacitance Between Contacts	≤ 7 pF
Contact Resistance	≤ 3 mΩ
Dielectric Strength	1.5 kVdc
Insulation Resistance	> 10 GΩ (initial)
Rated Current per Contact	7.5 A
Rated Voltage	< 50 V
Mechanical
Cable O.D.	3.5 - 8.0 mm
Insertion Force	≤ 20 N
Withdrawal Force	≤ 20 N
Lifetime	> 1000 mating cycles
Wire Size	Max. 1.0 mm² / Max. 18 AWG
Wiring	Solder contacts
Locking Device	Latch lock
Material
Boot	Polyurethane
Contact Plating	2 µm Ag over 2 µm Ni
Contacts	Brass (CuZn39Pb3)
Insert	Polyamide (PA66)
Locking Element	Zinc Diecast (ZnAl4Cu1) / Ck 67 (spring)
Locking Element Plating	Nickel
Shell	Zinc Diecast (ZnAl4Cu1)
Shell Plating	Nickel
Strain Relief	Polyacetal (POM)
Environmental
Flammability	UL 94 V-0
Standard Compliance	IEC 61076-2-103
Protection Class	IP 40
Solderability	Complies with IEC 68-2-20
Temperature Range	-30 °C to +80 °C
