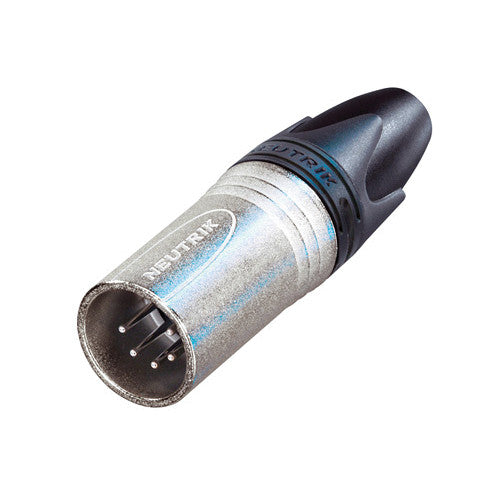

NC5MXX

Male connector with improved locking recess without "window", more stringent housing increases durability
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Colored rings and boots available for coding or identification
Sleek and ergonomic design - valuable and handy
Rugged zinc diecast shell, longlasting and dependable
Internal thread on shell is well protected against any damage

NEUTRIK

₱450.00 VAT INC.

₱450.00

UNIT: PIECE/S

Product Code: SKU:NEUT-NC5MXX-CHN-9381

Male connector with improved locking recess without "window", more stringent housing increases durability
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Colored rings and boots available for coding or identification
Sleek and ergonomic design - valuable and handy
Rugged zinc diecast shell, longlasting and dependable
Internal thread on shell is well protected against any damage

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

NEUTRIK NC5MXX

Key Specifications
Product Title	NC5MXX
Connection Type	XLR
Gender	Male
Electrical
Capacitance Between Contacts	≤ 7 pF
Contact Resistance	≤ 3 mΩ
Dielectric Strength	1.5 kVdc
Insulation Resistance	> 10 GΩ (initial)
Rated Current per Contact	7.5 A
Rated Voltage	< 50 V
Mechanical
Cable O.D.	3.5 - 8.0 mm
Insertion Force	≤ 20 N
Withdrawal Force	≤ 20 N
Lifetime	> 1000 mating cycles
Wire Size	Max. 1.0 mm² / Max. 18 AWG
Wiring	Solder contacts
Locking Device	Latch lock
Material
Boot	Polyurethane
Contact Plating	2 µm Ag over 2 µm Ni
Contacts	Brass (CuZn39Pb3)
Insert	Polyamide (PA66)
Locking Element	Zinc Diecast (ZnAl4Cu1)
Shell	Zinc Diecast (ZnAl4Cu1)
Shell Plating	Nickel
Strain Relief	Polyacetal (POM)
Environmental
Flammability	UL 94 V-0
Standard Compliance	IEC 61076-2-103
Protection Class	IP 40
Solderability	Complies with IEC 68-2-20
Temperature Range	-30 °C to +80 °C
