Key Specifications

Product / Accessory Type

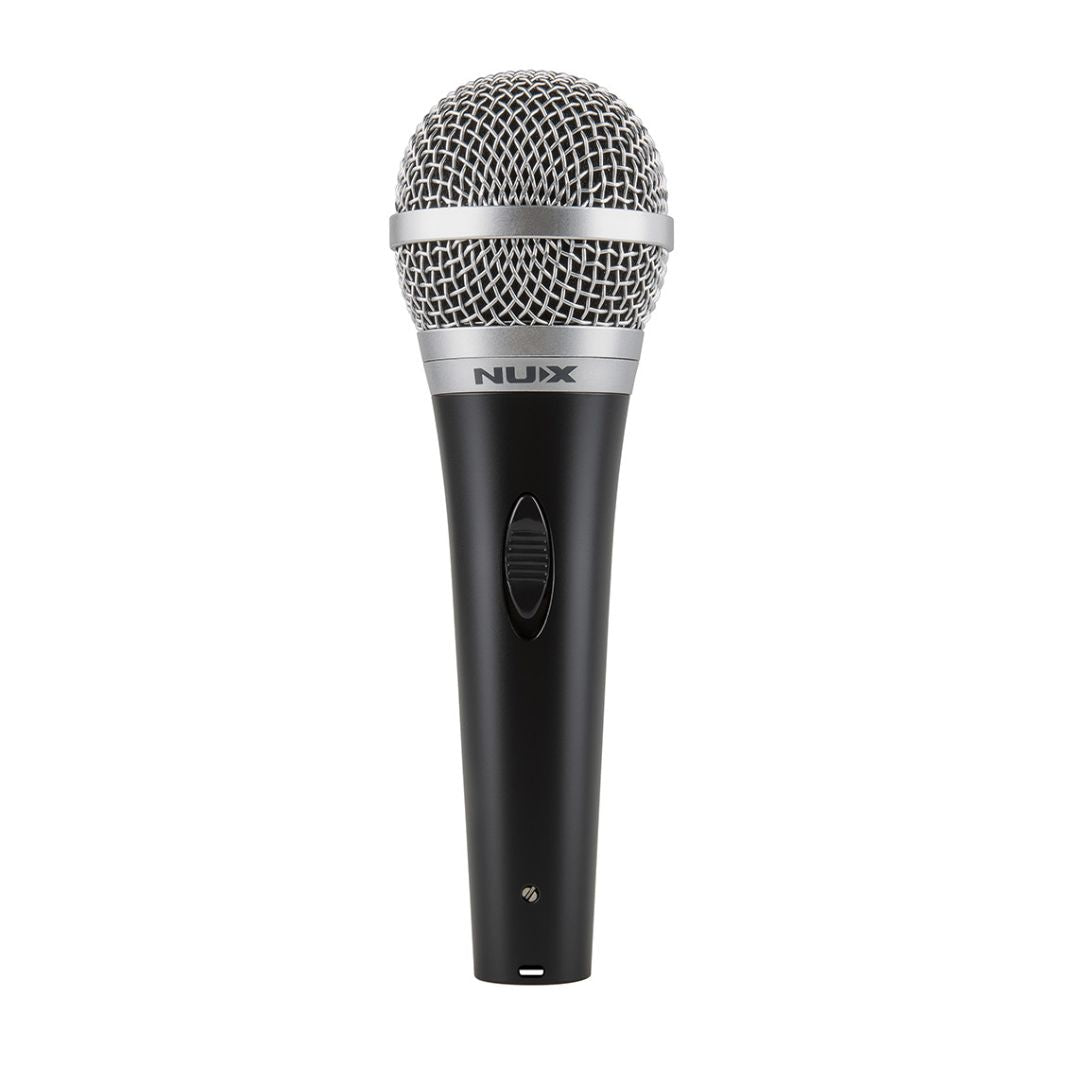

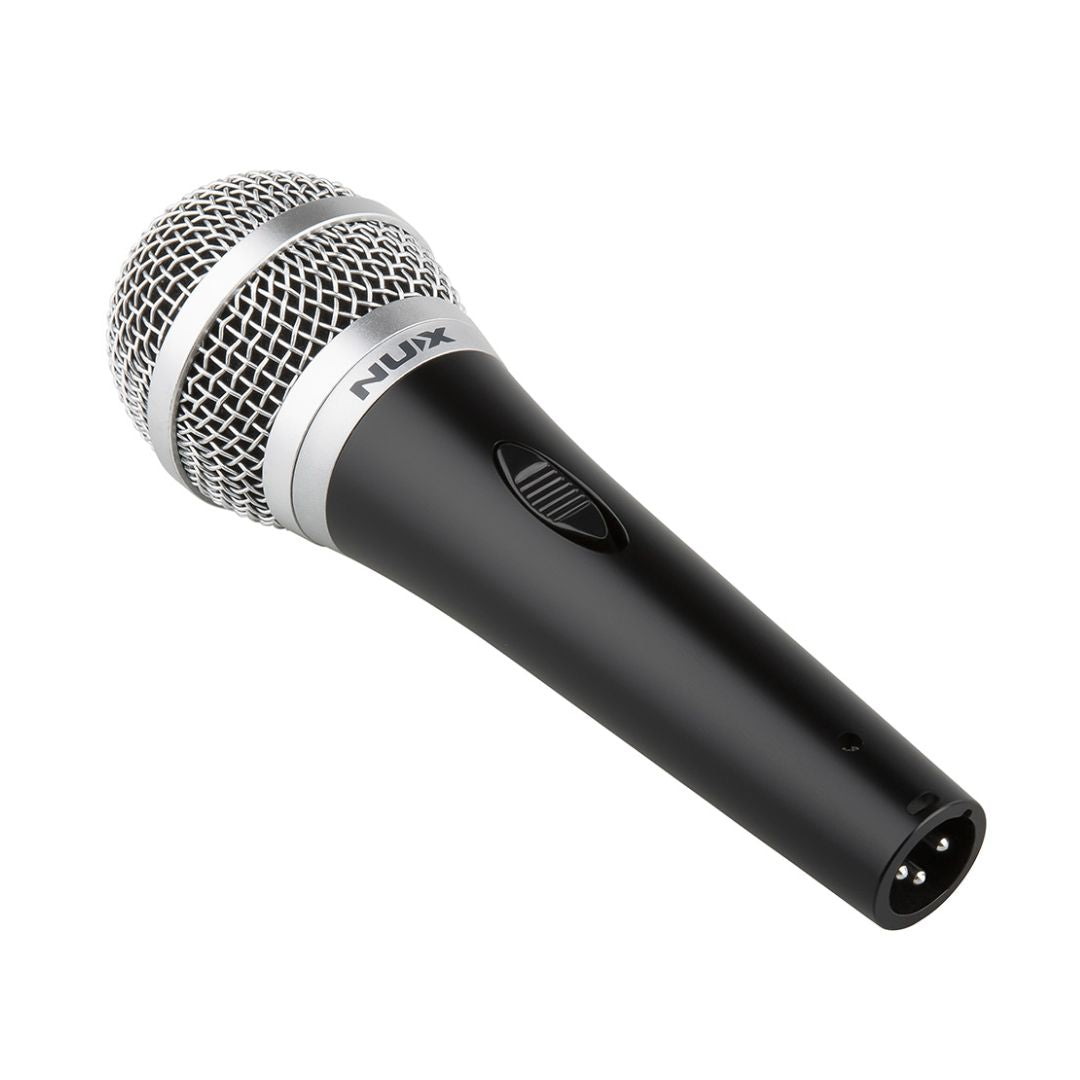

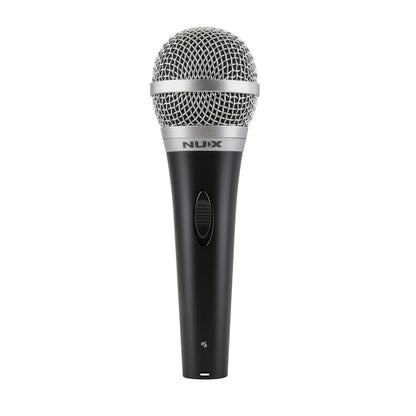

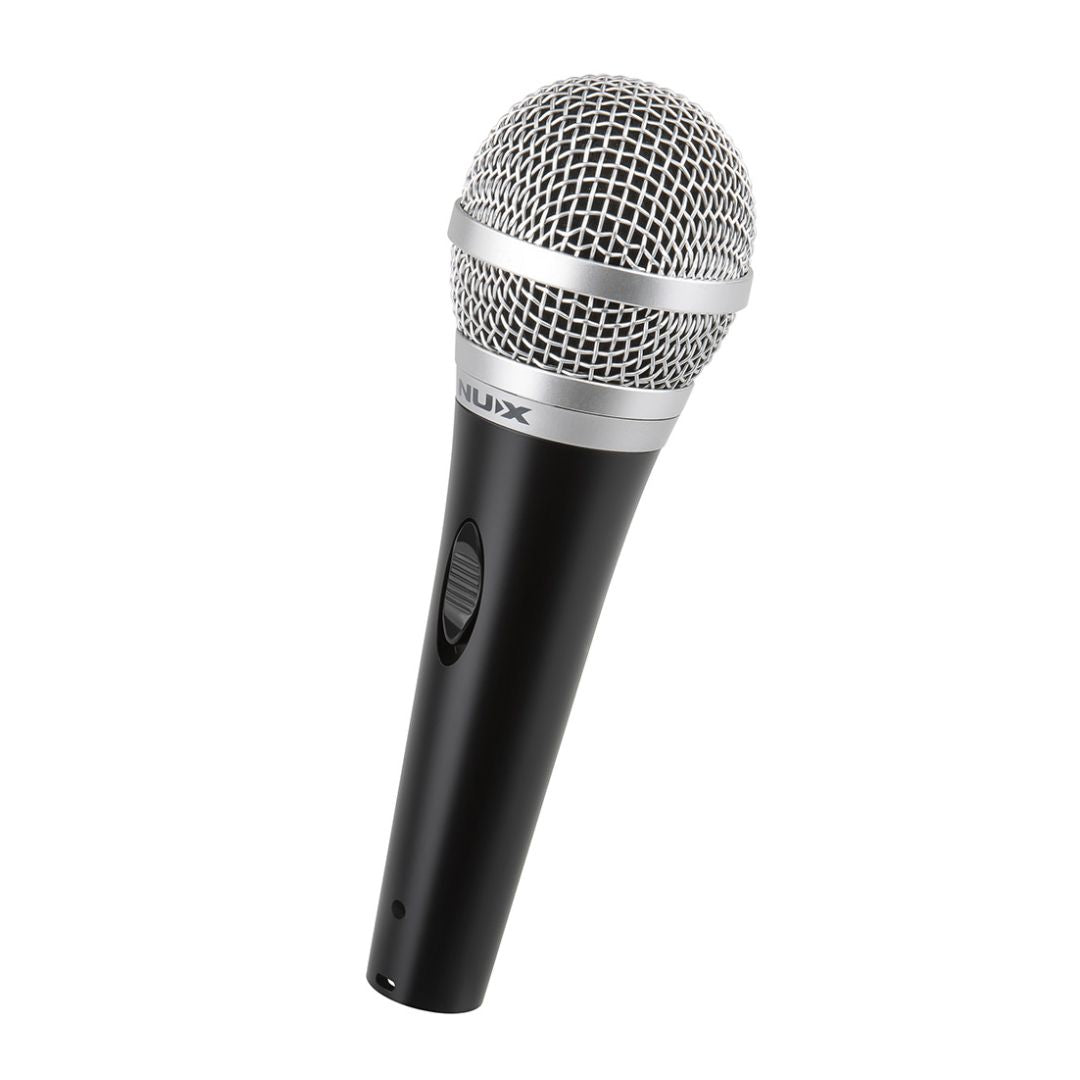

Handheld Dynamic Vocal / Instrument Microphone

Capsule Construction

Dynamic Transducer Element (Sponge Ref-Shak Construction Design)

Acoustic & Electrical Performance Specifications

Microphone Transducer Type

Dynamic

Directional Polar Pattern

Uni-Directional (Cardioid Polar Pattern)

Frequency Response

50 Hz to 15,000 Hz (15.00 kHz)

Capsule Sensitivity

-48.4 dB ± 3 dB (0 dB = 1 V/Pa)

Nominal Output Impedance

600 Ω ± 15% (at 1 kHz)

Environmental Limits, Dimensions & Weight Specifications

Environmental Operating Limits

Operating Temperature Range: -30 °C to 60 °C (-22 °F to 140 °F)

Product Dimensions (L×W×H)

171.00 mm x 54.00 mm x 4.00 mm (6.73" x 2.13" x 0.16")

Product Net Weight

261.00 g (0.26 kg / 0.58 lbs)
