NHB32-C

PRICE FOR INQUIRY

A single NHB32-C unit can support up to 32-channels of digital audio I/O, and one control signal I/O.
Four separate 8-channel AES/EBU input/output terminals.
CobraNet™ transfers high-quality 20-bit or 24-bit 48 kHz digital audio over four bundle paths in real time.
MIDI, head amp remote (AD8HR, AD824) and amplifier control.
NetworkAmp Manager software allows central control of both audio and control signals.

YAMAHA

Price for Inquiry

UNIT: PIECE/S

Product Code: SKU:YMHA-NHB32C-CHN-0713

A single NHB32-C unit can support up to 32-channels of digital audio I/O, and one control signal I/O.
Four separate 8-channel AES/EBU input/output terminals.
CobraNet™ transfers high-quality 20-bit or 24-bit 48 kHz digital audio over four bundle paths in real time.
MIDI, head amp remote (AD8HR, AD824) and amplifier control.
NetworkAmp Manager software allows central control of both audio and control signals.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

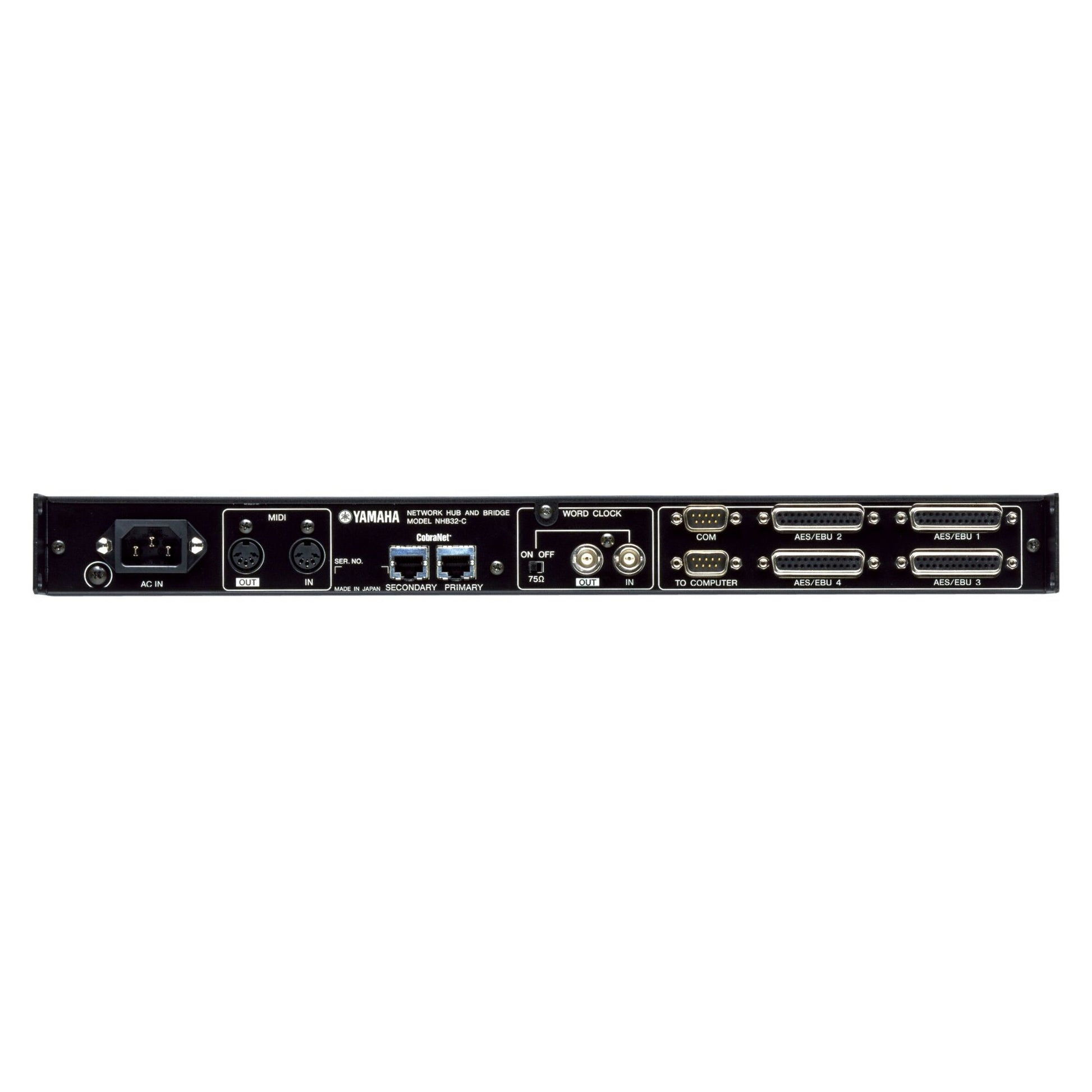

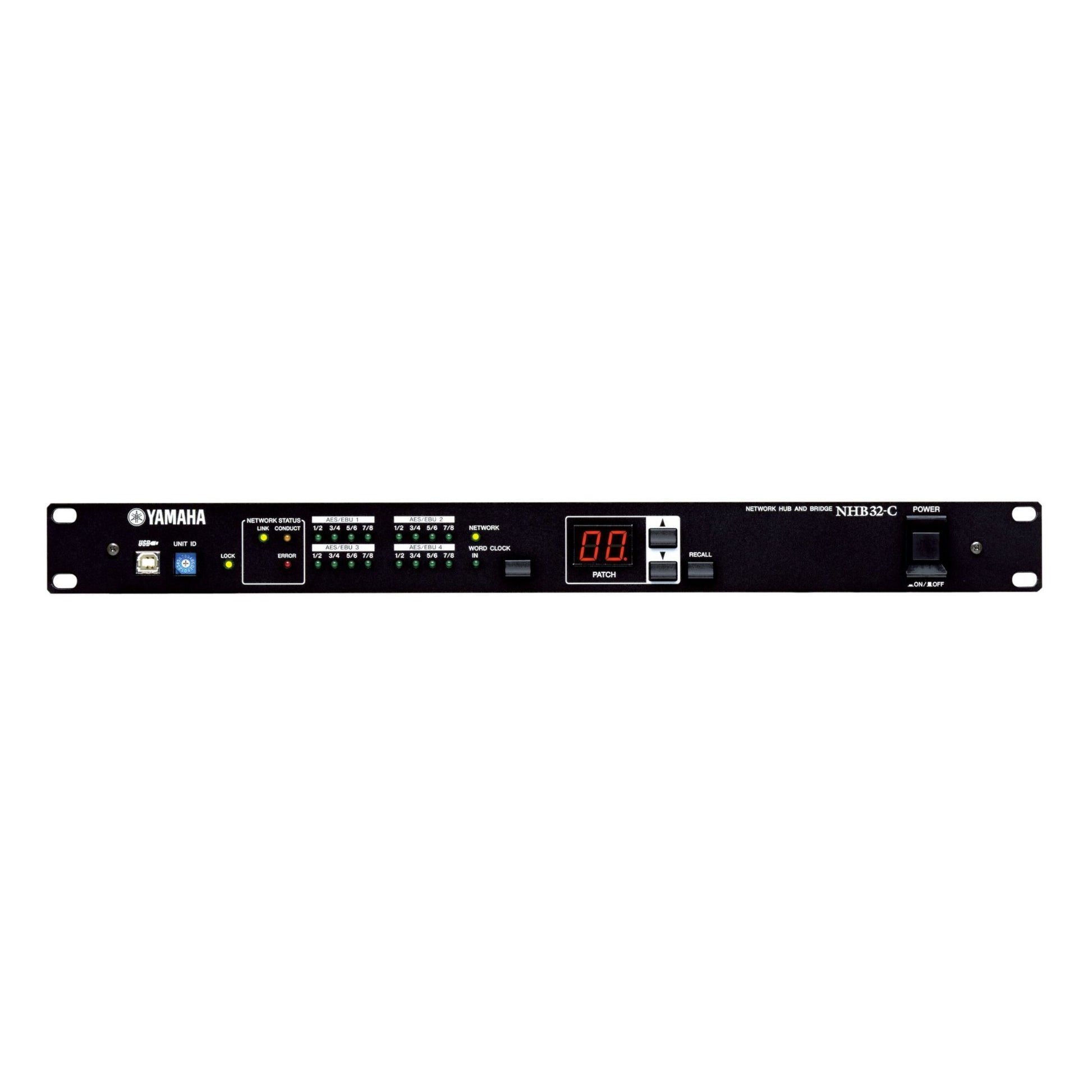

YAMAHA NHB32-C

Key Specifications
Sampling Frequency Rate	Internal: 48 kHz External: 48 kHz
Power Requirements	Depends on area of purchase; AC100V, 120V or 220-240V; 50/60Hz
Power Consumption	40W
Dimensions
Width	480 mm (18 7/8")
Height	44.65 mm (1 3/4")
Depth	386 mm (15 3/16")
Net Weight	5 kg (11 lbs)
Accessories
Included Accessories	Owner's Manual, AC Power Cord, Retaining Clamp, USB Cable
