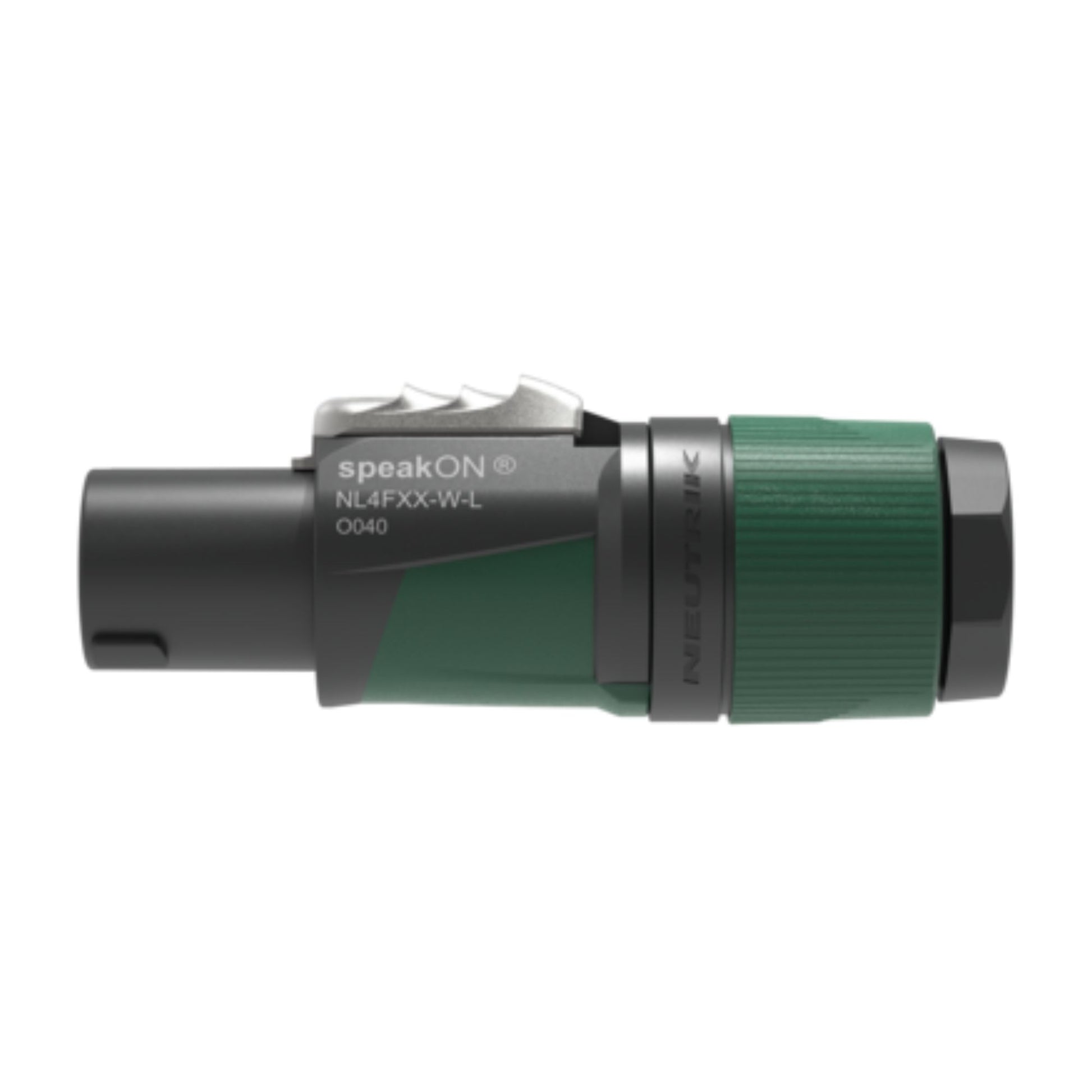

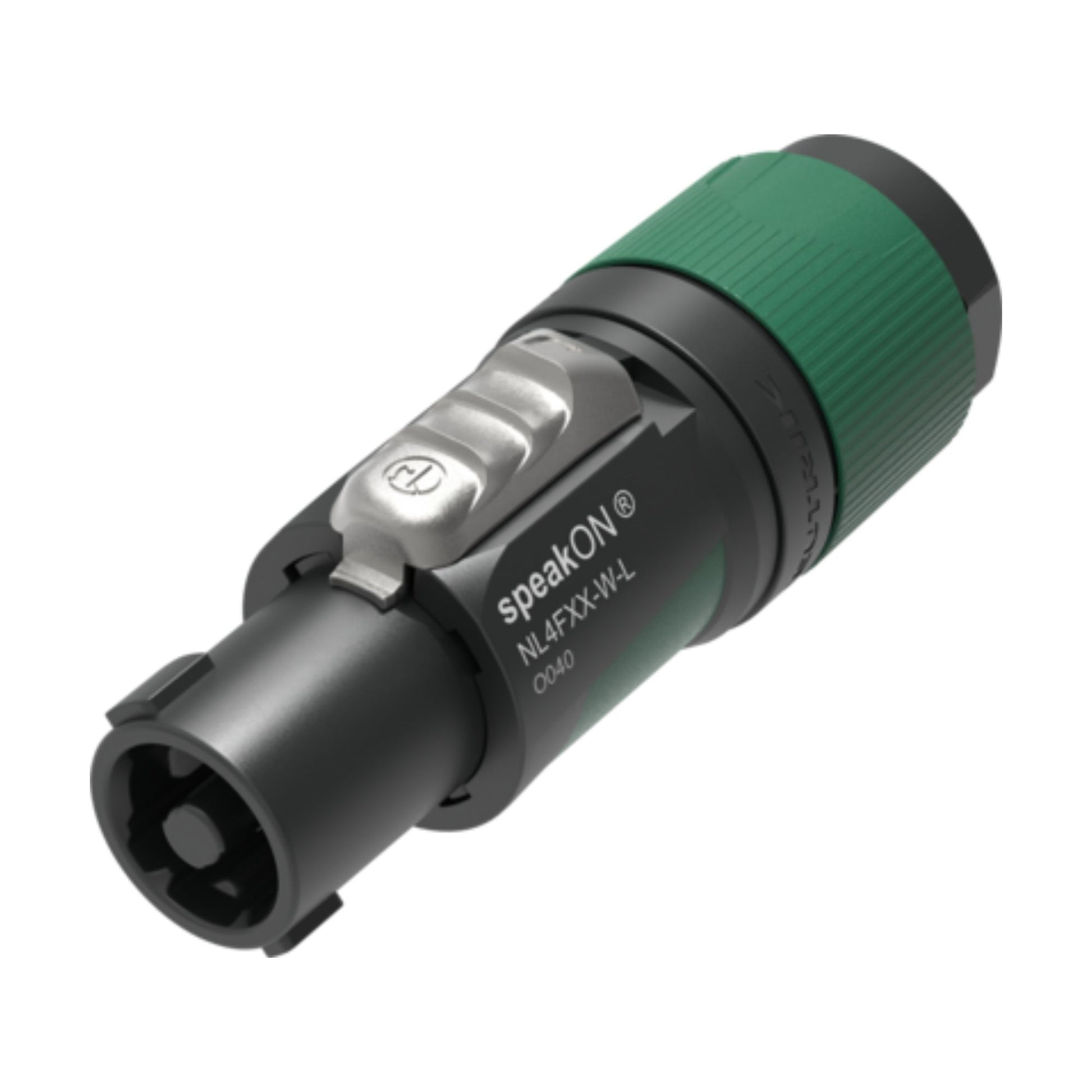

NL4FXX-W-L

Up to 37 A rms current rating
Unique Neutrik locking bushing and strain relief for cable diameters 10 mm to 16 mm
IEC 61984, UL 1977 and CSA C22.2 No.182.3 certified
Superior NEUTRIK quality standard, extremely robust and reliable
Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
Easy and reliable twist lock system

NEUTRIK

₱450.00 VAT INC.

₱450.00

UNIT: PIECE/S

Product Code: SKU:NEUT-NL4FXXWL-CHN-625

Up to 37 A rms current rating
Unique Neutrik locking bushing and strain relief for cable diameters 10 mm to 16 mm
IEC 61984, UL 1977 and CSA C22.2 No.182.3 certified
Superior NEUTRIK quality standard, extremely robust and reliable
Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
Easy and reliable twist lock system

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

NEUTRIK NL4FXX-W-L

Key Specification
Product Title	NL4FXX-W-L
Connector Series	speakON 4 Pole
Contact Resistance	≤ 2 mΩ
Dielectric Strength	2.8 kVac
Insulation Resistance	> 10 GΩ (Initially)
Number of Electrical Contacts	4
Rating (Europe)	IEC 61984: 37 A, 250 V AC
Rating (USA)	UL1977: 35 A, 250 V AC
Rating (Canada)	CSA C22.2 No.182.3: 24 A, 250 V AC
Attention	Not intended for use as an AC or DC power supply connector. Not for interrupting current.
Cable O.D.	10 – 16 mm
Lifetime	Typically 5,000 mating cycles
Wire Size (mm²)	1.5 – 4 mm²
Wire Size (AWG)	17 – 11 AWG
Locking Device	Twist Lock
Termination	Screw Type Terminals
Contact Plating	Ag (Silver)
Contacts	Copper Alloy
Insert	Polyamide (PA6.6)
Locking Element	Zinc Diecast
Shell	Polyamide (PA6) / TPE
Strain Relief	Polyketone
Bushing	Polypropylene / TPE
Temperature Range	-33 °C to +80 °C
Protection Class	IP20
Flammability Rating	UL94 V-0
