Key Specifications

Product Model

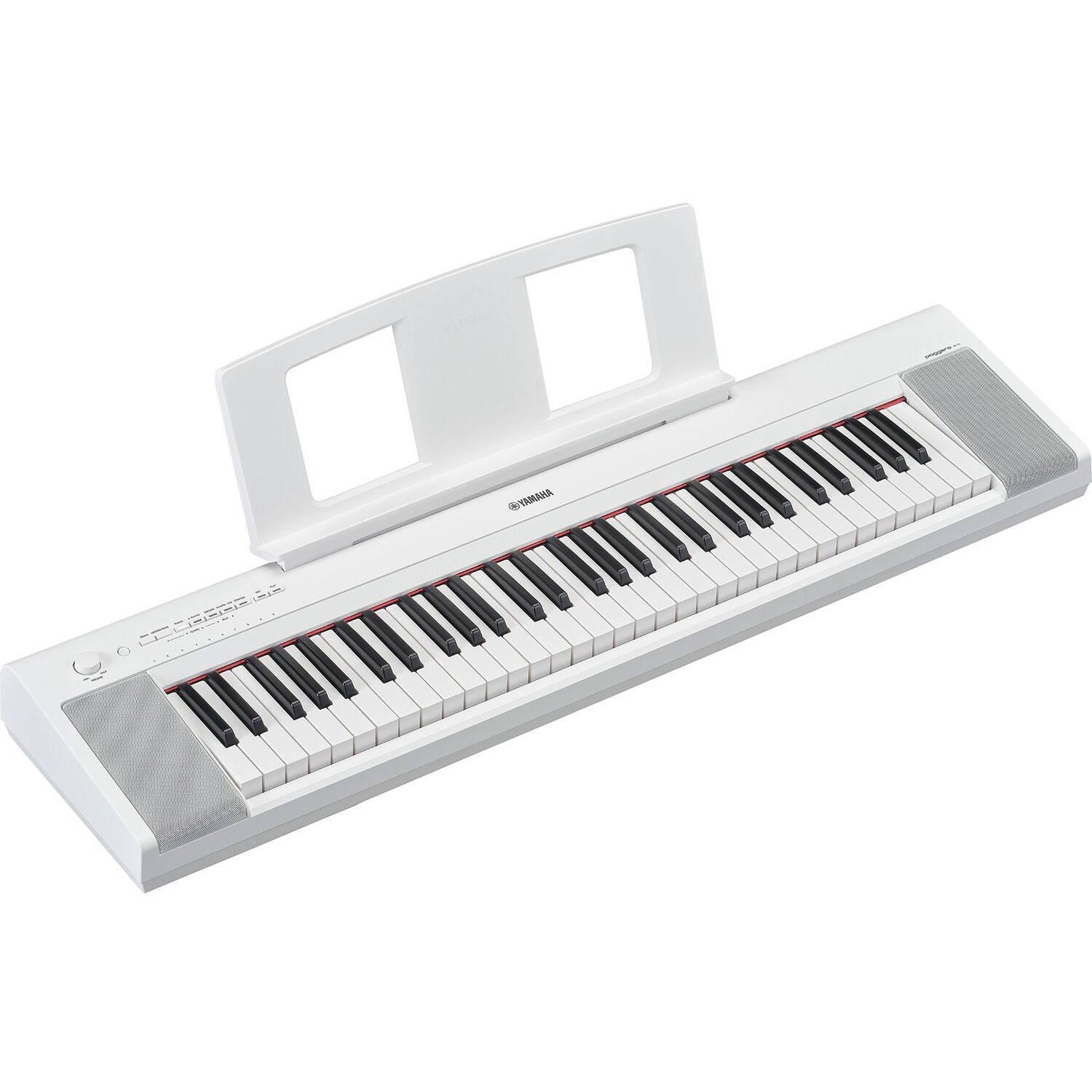

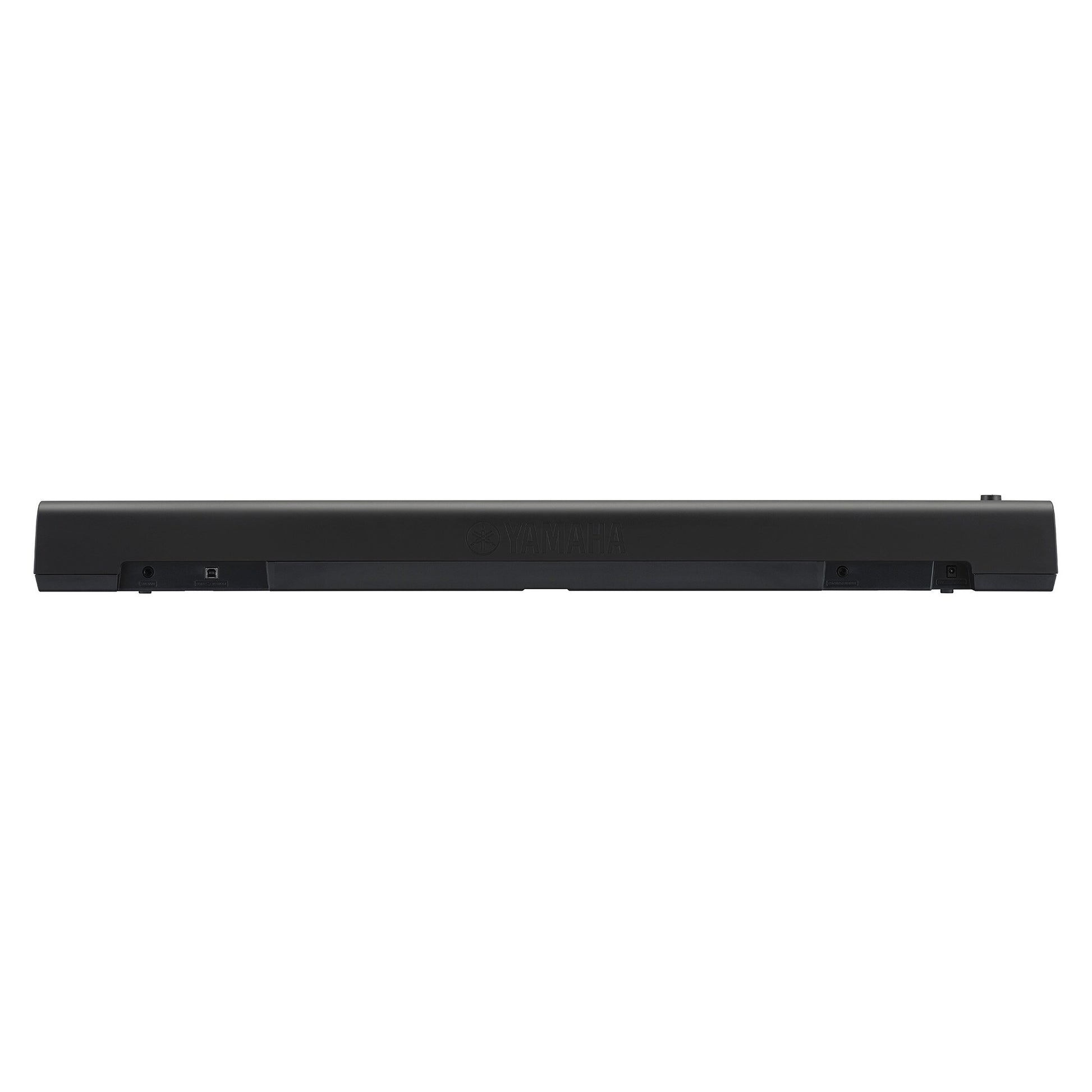

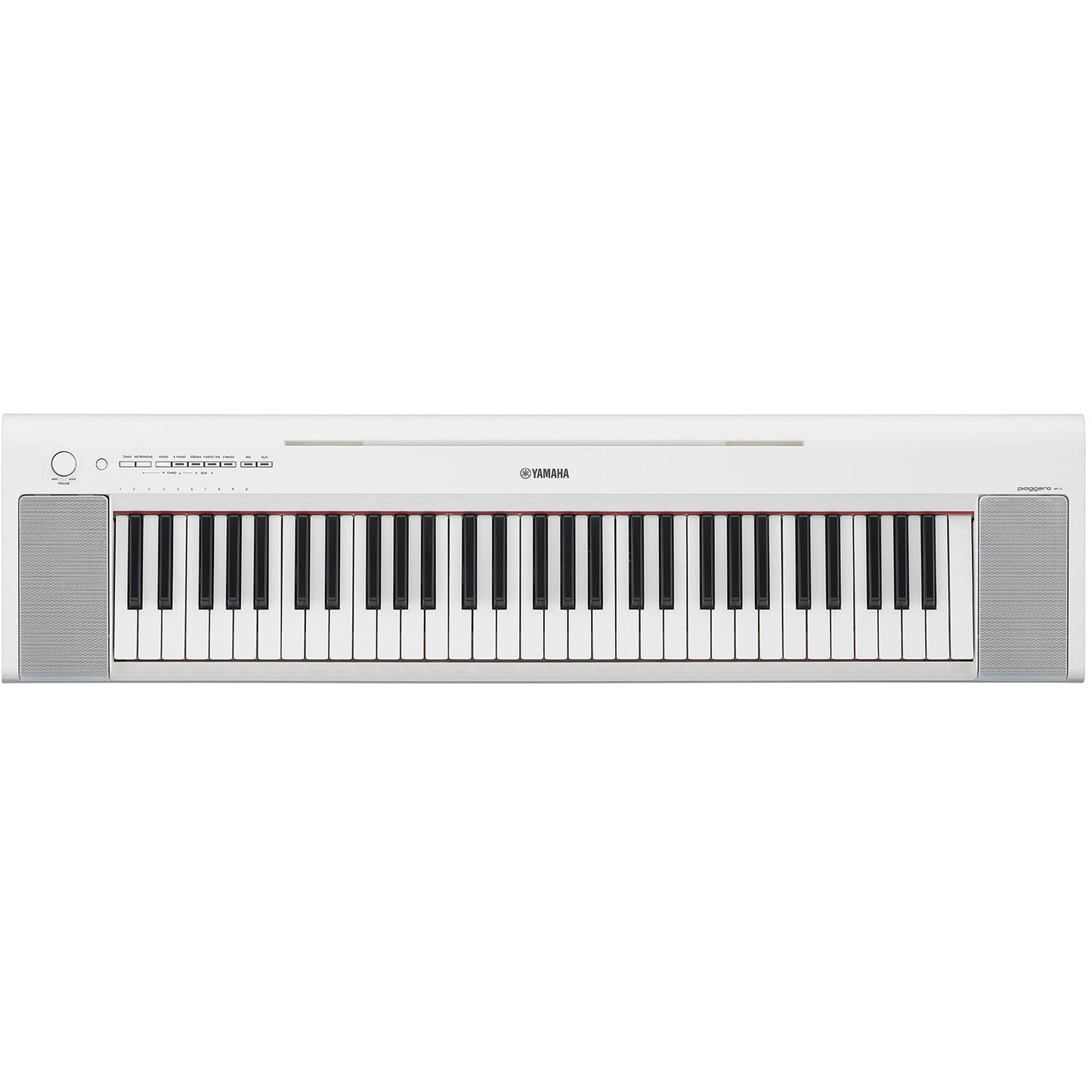

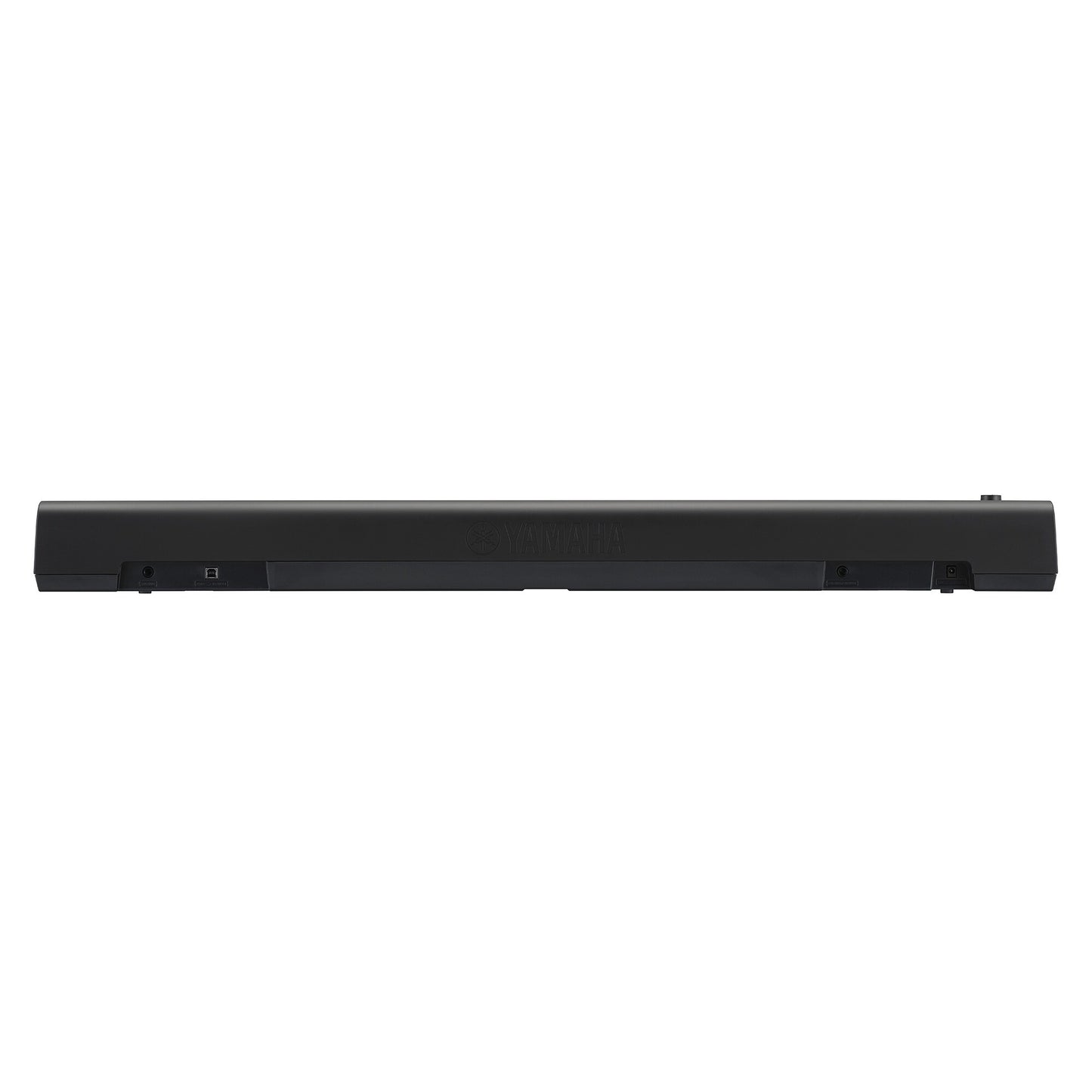

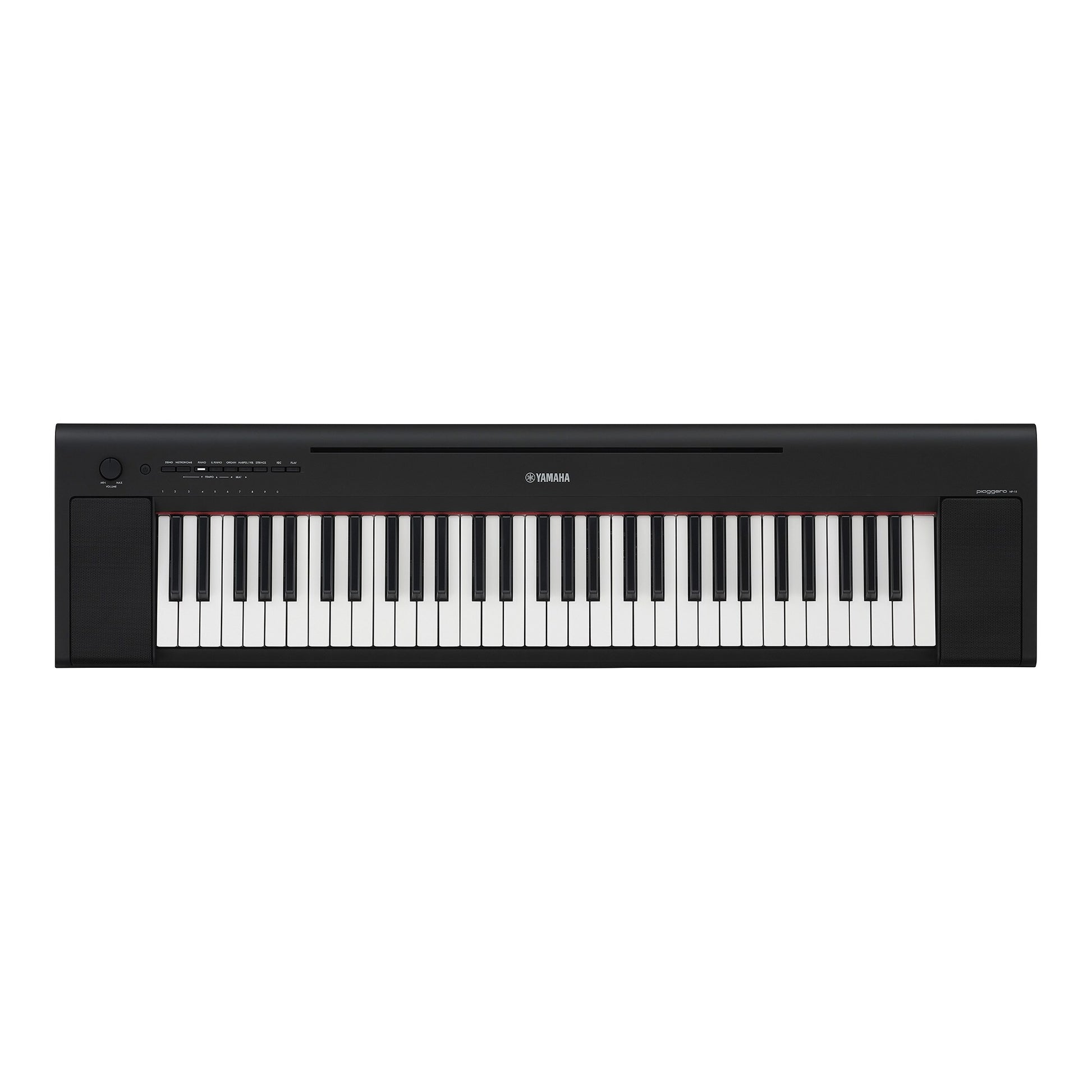

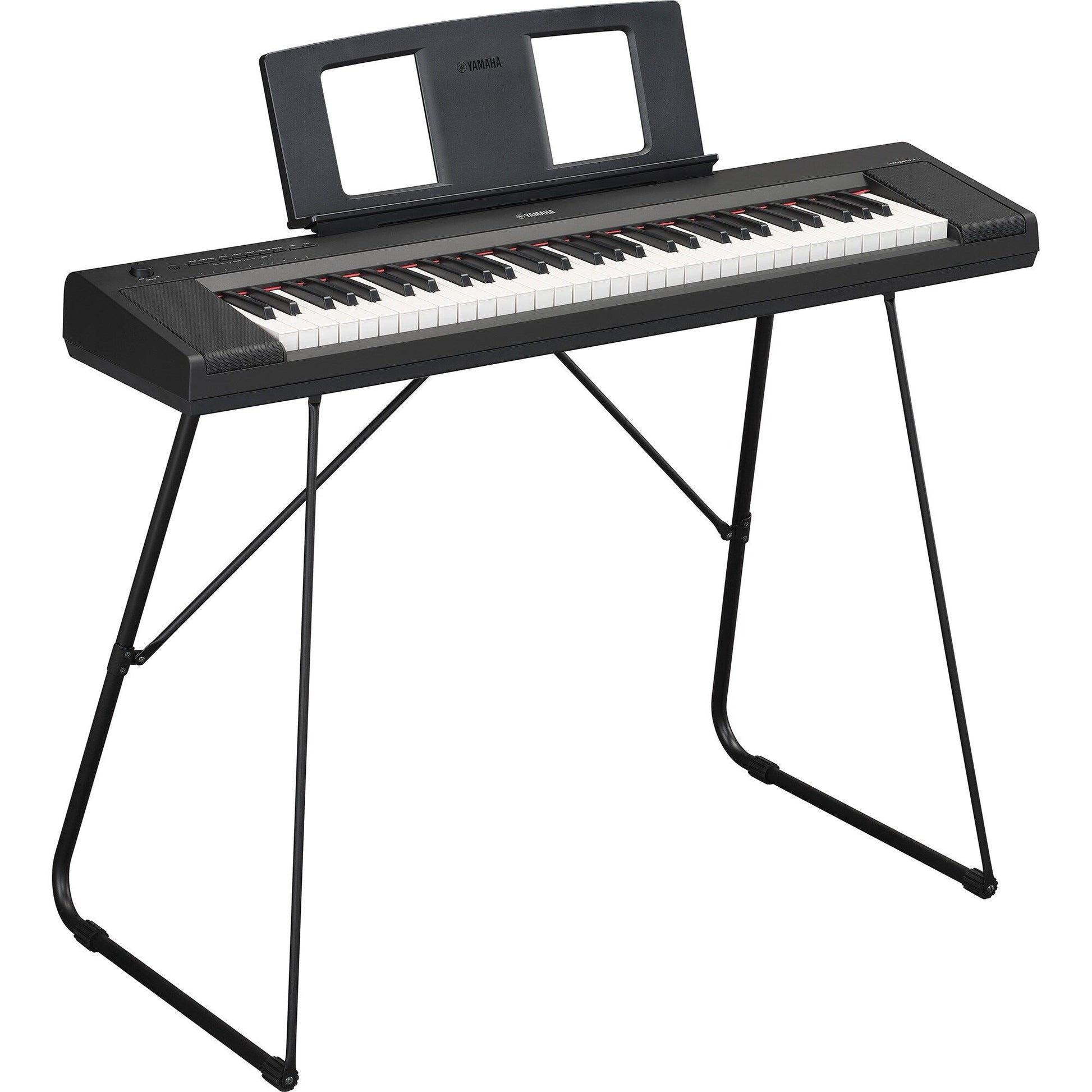

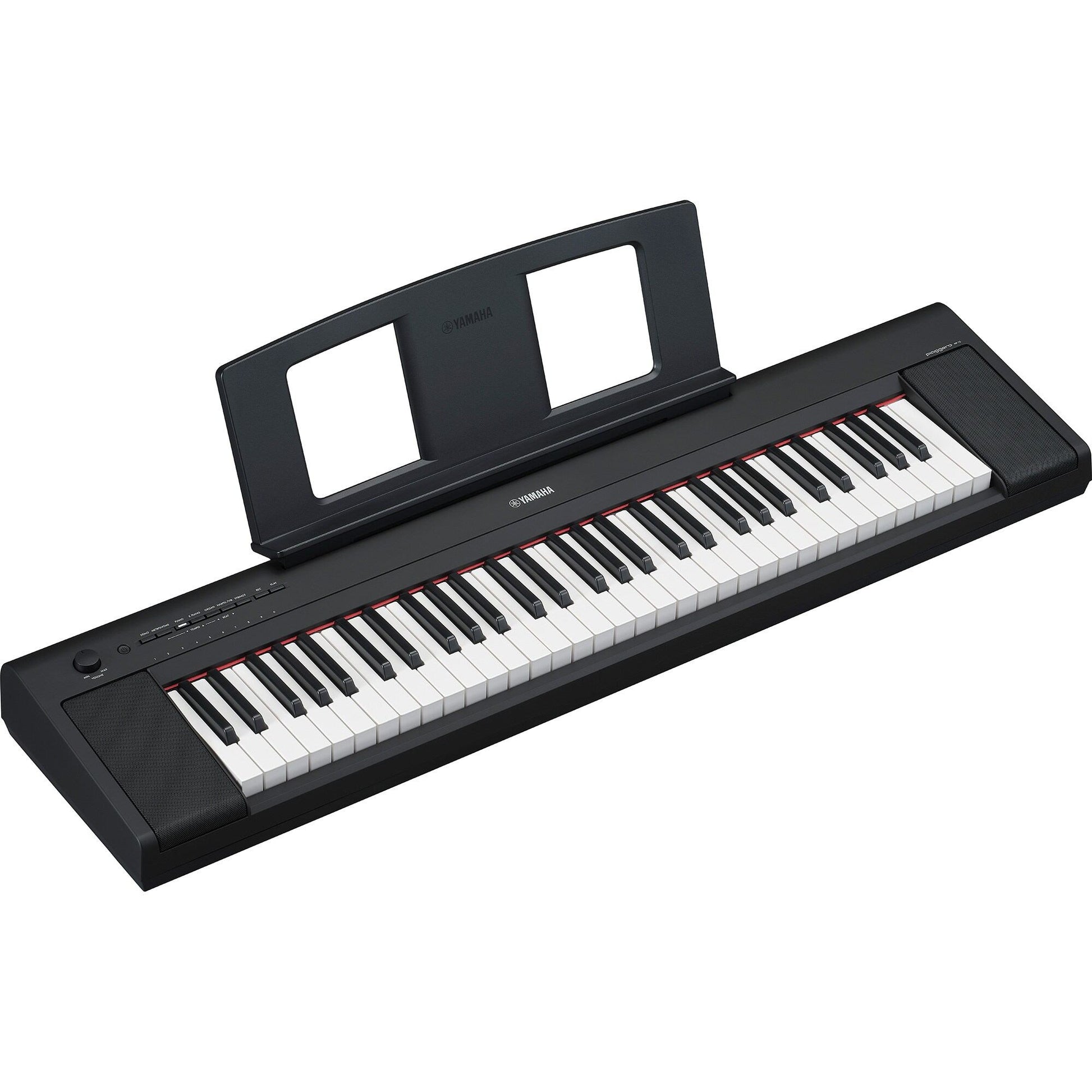

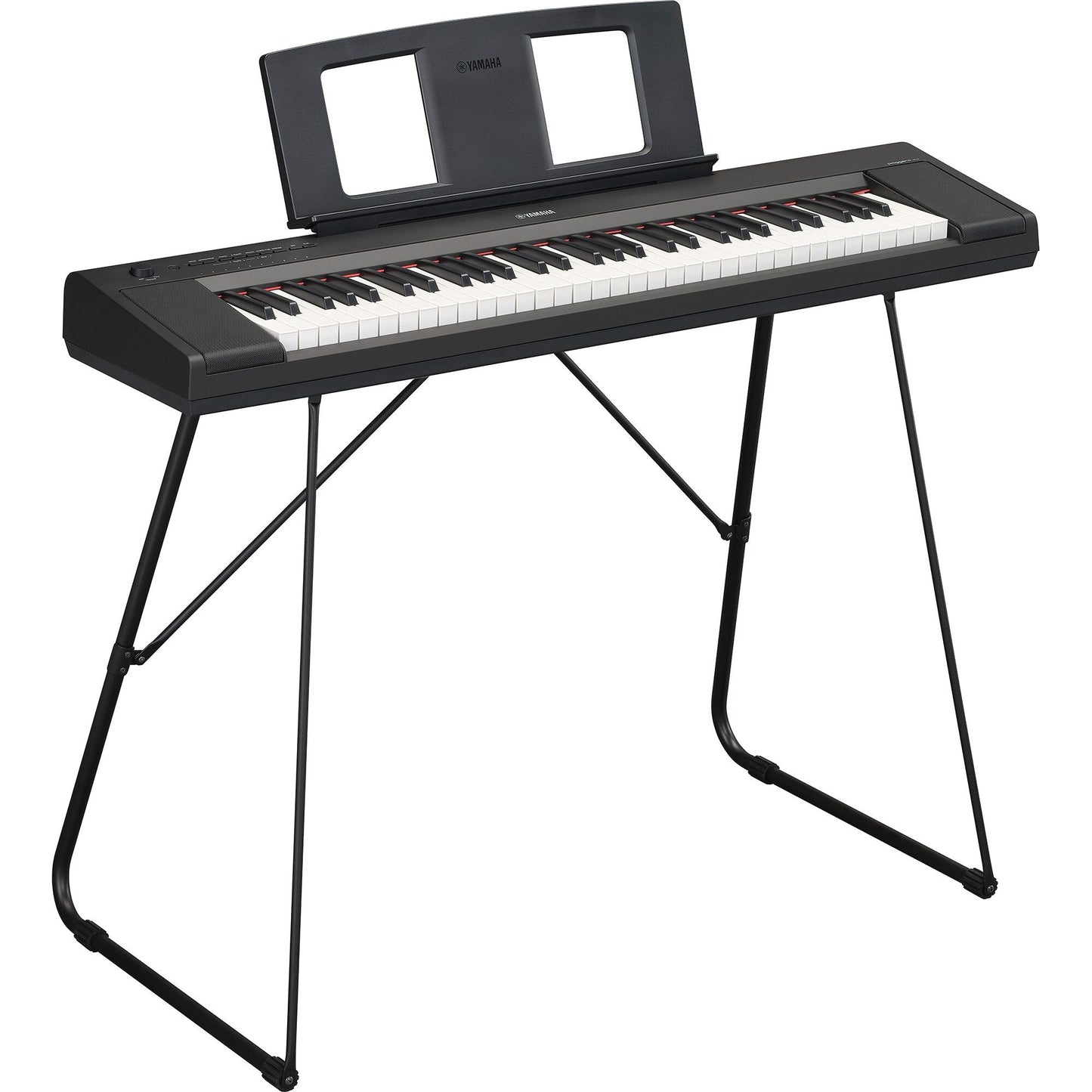

Yamaha NP-15

Width

1052 mm (41-7/16”)

Height

104 mm (4-1/8”)

Depth

260 mm (10-1/4”)

Weight

5.2 kg (11 lbs., 7 oz.) (batteries not included)

Number of Keys

61

Keyboard Type

Box Type

Touch Response

Yes (Soft, Medium, Hard, Fixed)

Panel Language

English

Tone Generating Technology

AWM Stereo Sampling

Maximum Polyphony

64

Number of Voices

15

Reverb Types

6

Sound Boost

Yes

Dual / Layer Function

Yes

Preset Songs

15 Voice Demo Songs + 10 Piano Songs

Recording Songs

1

Recording Tracks

1

Data Capacity

Approx. 7,000 notes

Metronome

Yes

Tempo Range

32 – 280

Transpose

−6 – 0 – +6

Tuning

414.8 Hz – 440.0 Hz – 466.8 Hz (approx. 0.2 Hz increments)

DC Input

12V

Headphones / Output

Standard stereo phone jack (PHONES/OUTPUT)

Sustain Pedal

Yes (Half-Damper compatible with optional FC3A)

USB To Host

Yes (MIDI / Audio)

Amplifier Power

2.5 W × 2

Speakers

(12 cm × 8 cm) × 2

Power Supply

AC Adaptor (PA-130, PA-3C or equivalent) or 6 × AA batteries

Power Consumption

3.5 W (when using PA-130 adaptor)

Auto Power Off

Yes
