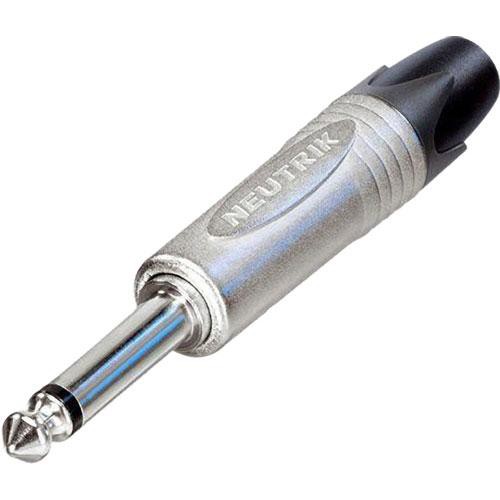

NP2X
NP2X
NEUTRIK
UNIT: PIECE/S
Product Code: SKU:NEUT-NP2X-CHN-2898
Key Features
NEUTRIK NP2X
NEUTRIK NP2X
|
Key Specifications |
|
|
Product Title |
NP2X |
|
Connection Type |
Plug |
|
Gender |
Male |
|
Electrical |
|
|
Contact Resistance |
Depends on mating connector |
|
Dielectric Strength |
1 kVdc |
|
Insulation Resistance |
> 2 GΩ (initial), ≥ 1 GΩ (after damp heat test) |
|
Rated Current per Contact |
Depends on mating connector |
|
Rated Voltage |
< 50 V |
|
Mechanical |
|
|
Cable O.D. |
4 - 7 mm |
|
Lifetime |
> 1000 mating cycles |
|
Wire Size |
1 mm² / 18 AWG |
|
Wiring |
Solder contacts |
|
Material |
|
|
Bushing |
Polyacetal (POM) + PU |
|
Contact Plating |
2 µm Ni (Su) |
|
Contacts |
Brass (CuZn39Pb3) |
|
Insert |
Polyamide (PA 6.6 30% GR) |
|
Shell |
Zinc Diecast (ZnAl4Cu1) |
|
Shell Plating |
Nickel |
|
Strain Relief |
Polyacetal (POM) |
|
Environmental |
|
|
Standard Compliance |
IEC 60603-11 / EIA RS-453 |
|
Solderability |
Complies with IEC 68-2-20 |
|
Temperature Range |
-20 °C to +65 °C |
