NTP3RC
NTP3RC
NEUTRIK
Regular price
₱250.00 VAT INC.
Regular price
Sale price
₱250.00
Unit price
per
UNIT: PIECE/S
Product Code: SKU:NEUT-NTP3RC-CHN-2879
Key Features
Authorized Dealer
Certified Quality Products
After-Sales Support
Secure Payments

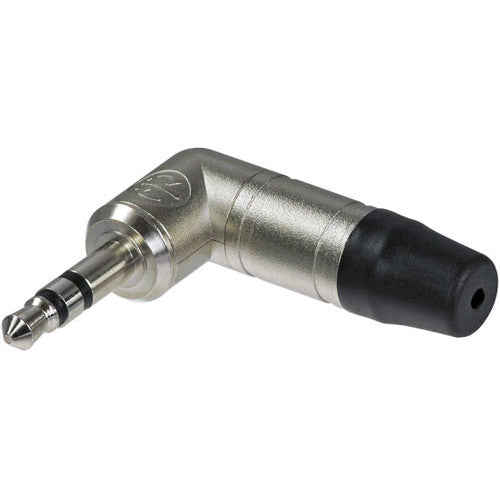

NEUTRIK NTP3RC
NEUTRIK NTP3RC
|
Key Specifications |
|
|
Product Title |
NTP3RC |
|
Connection Type |
Plug |
|
Gender |
Male |
|
Electrical |
|
|
Contact Resistance |
Depends on mating connector |
|
Dielectric Strength |
1 kVdc |
|
Insulation Resistance |
> 2 GΩ (initial) |
|
Rated Voltage |
< 50 V |
|
Mechanical |
|
|
Cable O.D. |
2 - 4.5 mm |
|
Wire Size |
0.22 mm² / 24 AWG |
|
Wiring |
Solder contacts |
|
Material |
|
|
Bushing |
Brass (CuZn39Pb3) + PU, Ni |
|
Contact Plating |
2 µm Ni (Su) |
|
Contacts |
Brass (CuZn39Pb3) |
|
Insert |
Polyamide (PA 6.6 15% GR) |
|
Shell |
Zinc Diecast (ZnAl4Cu1) |
|
Shell Plating |
Nickel |
|
Strain Relief |
Polyacetal (POM) |
|
Environmental |
|
|
Solderability |
Complies with IEC 68-2-20 |
|
Temperature Range |
-20 °C to +65 °C |
NEUTRIK NTP3RC Accessories
- No accessories available.
