The JBL VMA1120 is a Commercial Series Bluetooth-enabled mixer/amplifier designed to provide flexible multi-source mixing and amplification for installation in restaurants, educational institutions, fitness centers, and retail stores. It features a 5-in/1-out mixer and 120W of output power. It can be installed in a standard 19” equipment rack with the supplied rackmount kit or set on a surface such as a desk or ledge.

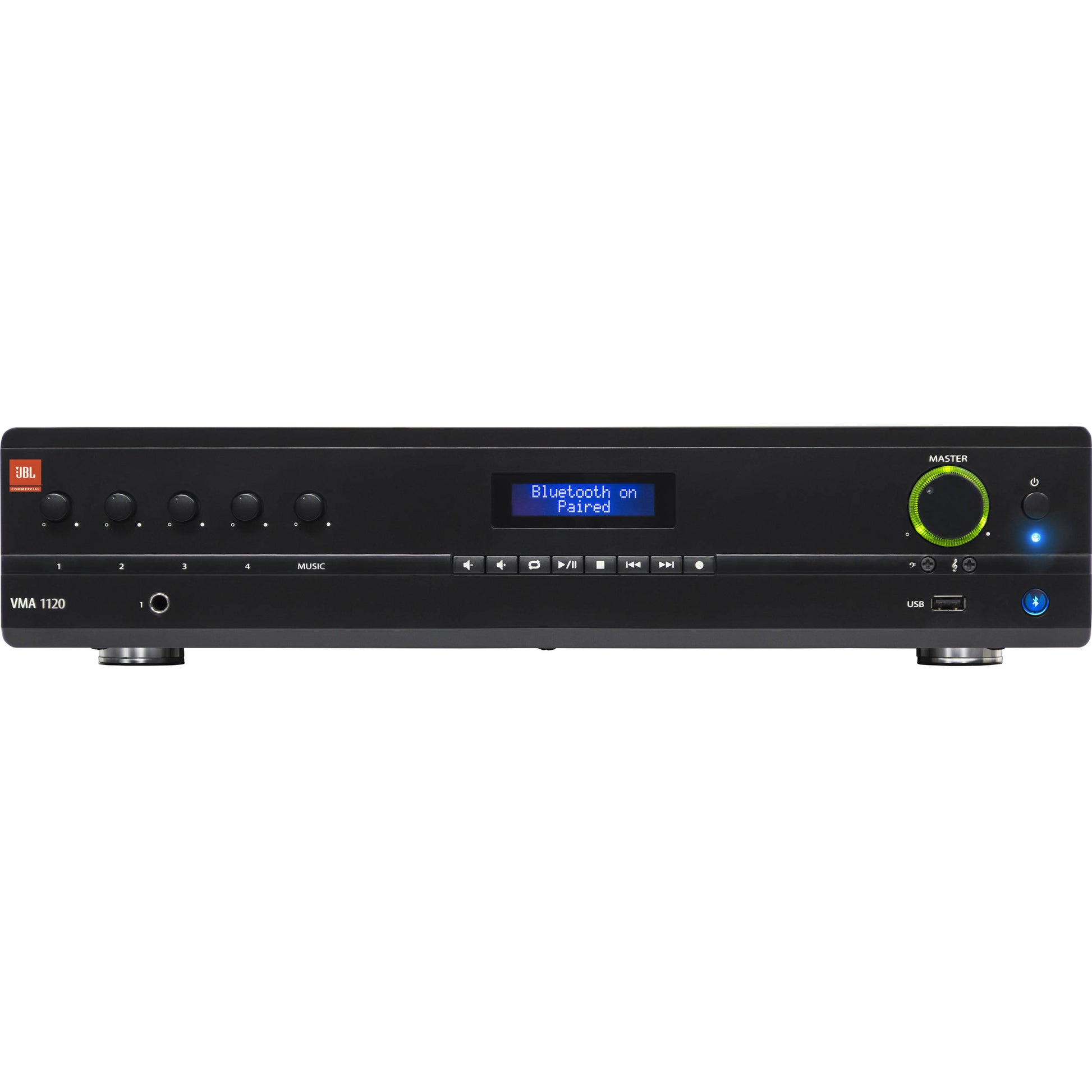

Stream music wirelessly via Bluetooth or connect a USB drive to the front-panel USB Type-A port. Route other sources via Euroblock, RCA, and 1/4" input jacks. The integrated mixer offers level controls as well as bass and treble for each channel. Routing to the Euroblock outputs is configurable. The VMA1120 supports voice-activated ducking and priority muting. The front-panel controls and display make operation easy, and remote volume control is possible via a JBL CSR-V module and a standard Ethernet cable (both available separately).

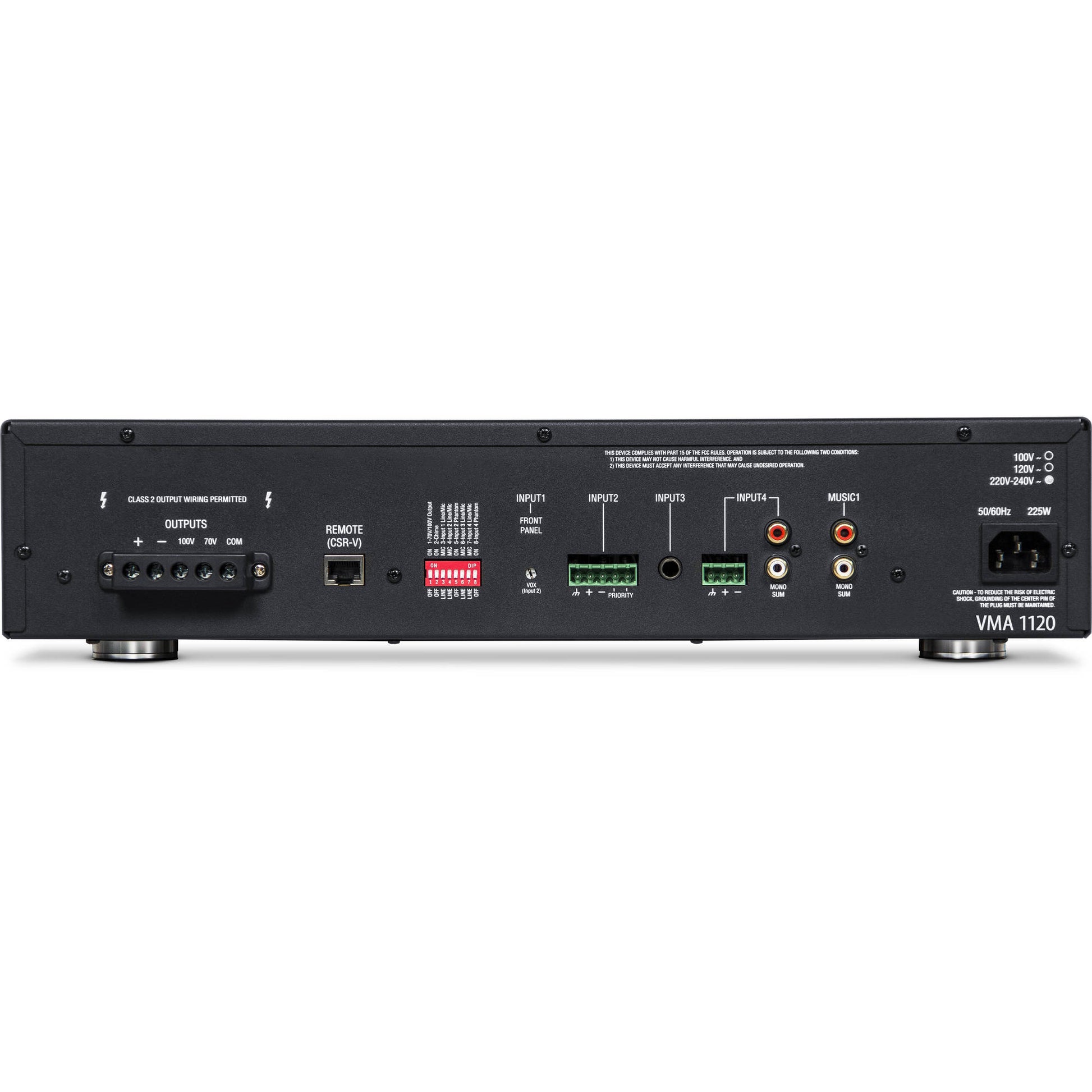

Suitable for commercial and industrial useEuroblock, RCA, and 1/4" TRS input connectorsIndependent bass and treble controls for each output channelVoice-activated ducking during announcementsRemote volume control capability using optional JBL CSR-V module and Cat5e cable with RJ45 connectorsPriority muting using PTT switch closureConfigurable output routingBarrier block output connections to drive 8 Ohms, 70V or 100V speaker systemsMedia player capable of playing MP3 files from a Bluetooth device or USB drive
JBL NVMA1120
Key Specifications
Amplifier
Form Factor/Type: Tabletop
Number of Channels: 5 Input / 1 Output
Amplifier Power Rating: 4 Ohms / 8 Ohms: 120 W per Channel (1 kHz, 0.5% THD)
Load Impedance / Voltage: 4 Ohms (Minimum), 70 V (40 Ohms Minimum), 100 V (80 Ohms Minimum)
Performance
Frequency Response: 20 Hz to 20 kHz ±2 dB (Low-Z), 80 Hz to 15 kHz ±3 dB (70/100 V)
