The JBL VMA2120 is a Commercial Series Bluetooth-enabled mixer/amplifier designed to provide flexible multi-source mixing and amplification for installation in restaurants, educational institutions, fitness centers, and retail stores. It features an 8-in/2-out mixer and 120W of output power. It can be installed in a standard 19” equipment rack with the supplied rackmount kit or set on a surface such as a desk or ledge.

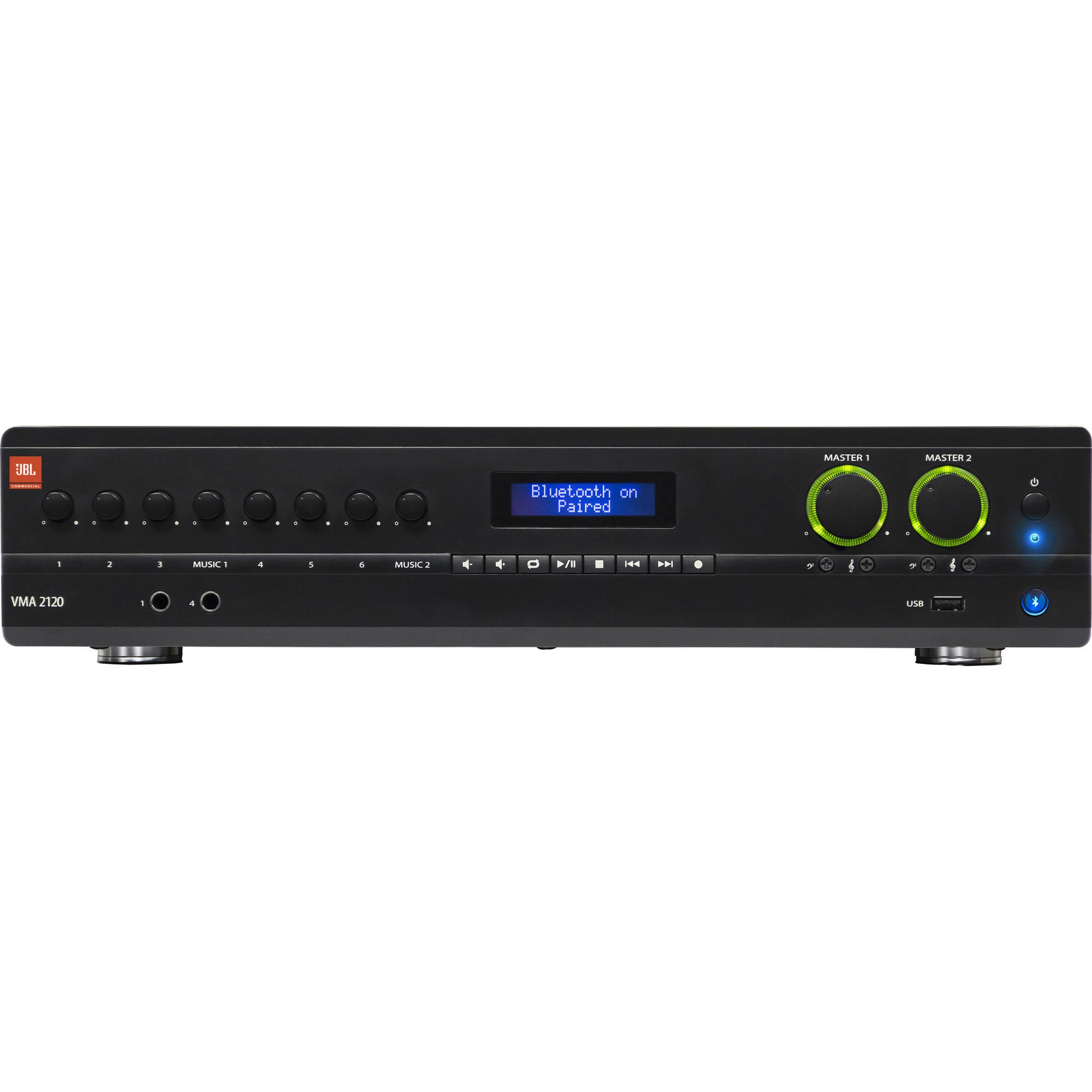

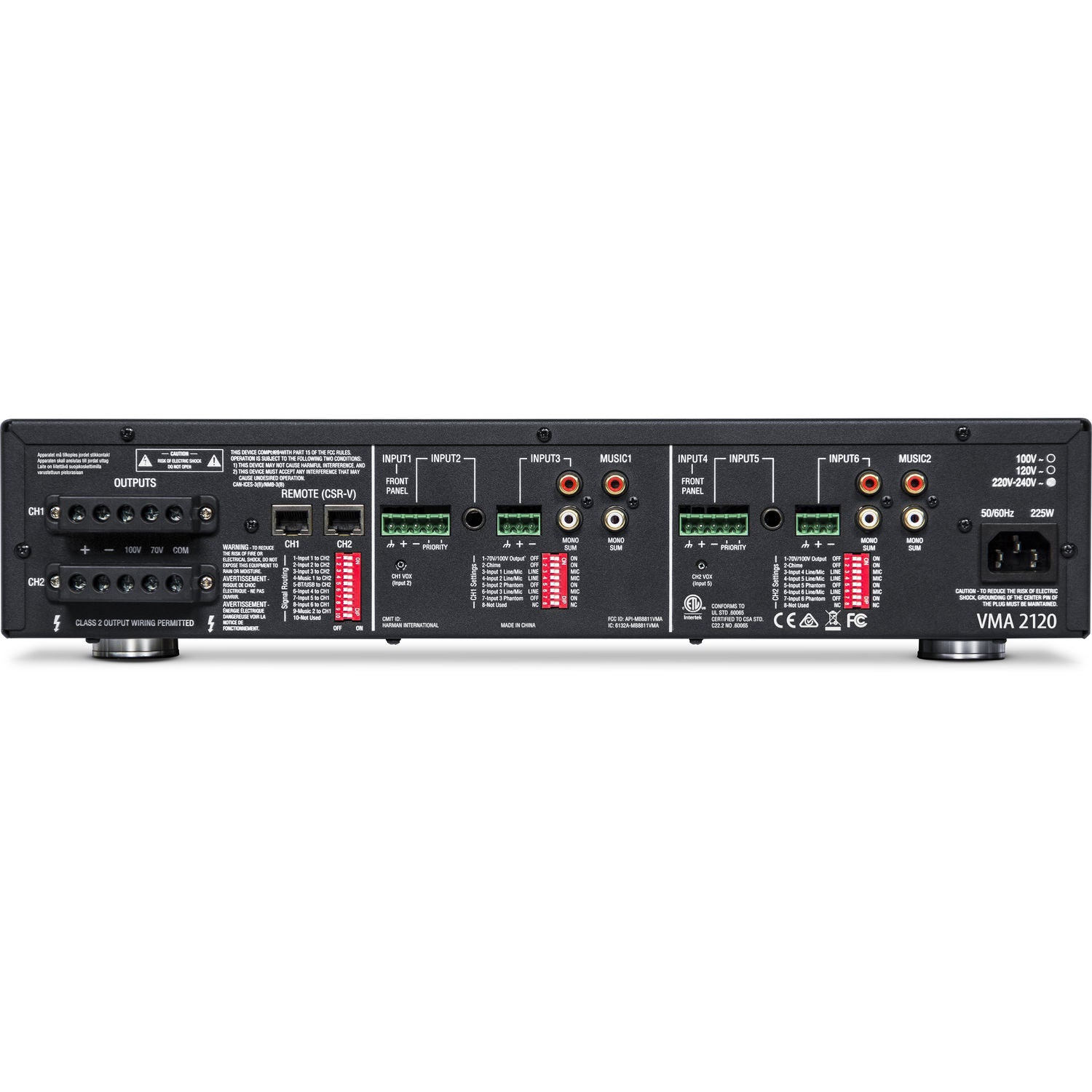

Stream music wirelessly via Bluetooth or connect a USB drive to the front-panel USB Type-A port. Route other sources via Euroblock, RCA, and 1/4" input jacks. The integrated mixer offers level controls as well as bass and treble for each channel. Routing to the Euroblock outputs is configurable. The VMA2120 supports voice-activated ducking and priority muting. The front-panel controls and display make operation easy, and remote volume control is possible via a JBL CSR-V module and a standard Ethernet cable (both available separately).
JBL VMA2120
Key Specifications
Amplifier
Form Factor/Type: Tabletop
Number of Channels: 8 Input / 2 Output
Amplifier Power Rating: 4 Ohms / 8 Ohms: 120 W per Channel (1 kHz, 0.5% THD)
Load Impedance / Voltage: 4 Ohms (Minimum), 70 V (40 Ohms Minimum), 100 V (80 Ohms Minimum)
Performance
Frequency Response: 20 Hz to 20 kHz ±2 dB (Low-Z), 80 Hz to 15 kHz ±3 dB (70/100 V)
