Key Specifications

Performance

• Frequency Response: 50 Hz - 20000 Hz
• Max SPL @ 1m: 129 dB
• Coverage Angle: 60° (H) x 60° (V) Coaxial

Transducers

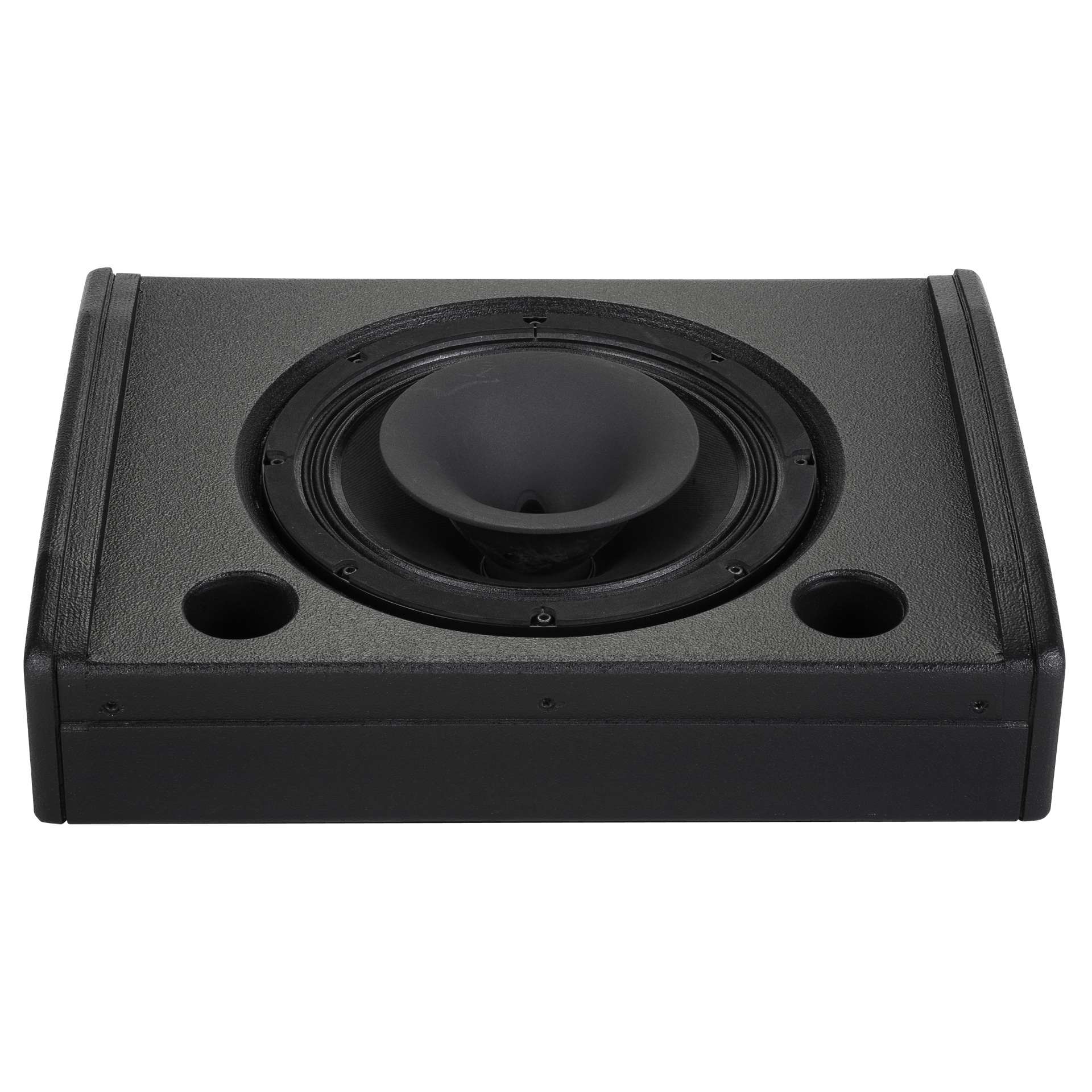

• Woofer: 1 x 12'' neo, 2.5'' v.c.
• Compression Driver: Coaxial 1.0'' neo, 1.75'' v.c.

Processor & Power Section

Amplification

• Total Power: 1400 W Peak / 700 W RMS
• LF / HF (RMS): 500 W / 200 W
• Cooling: Convection

Processing & Controls

• Protections: RMS, HF
• Limiter: Soft Limiter
• Controls: Freefield, Floor EQ

Input / Output Section

• Inputs: XLR, Jack (bal/unbal)
• Output: XLR Loop Out
• Power: Powercon IN/OUT

Physical Specifications

• Cabinet: Baltic Birch Plywood

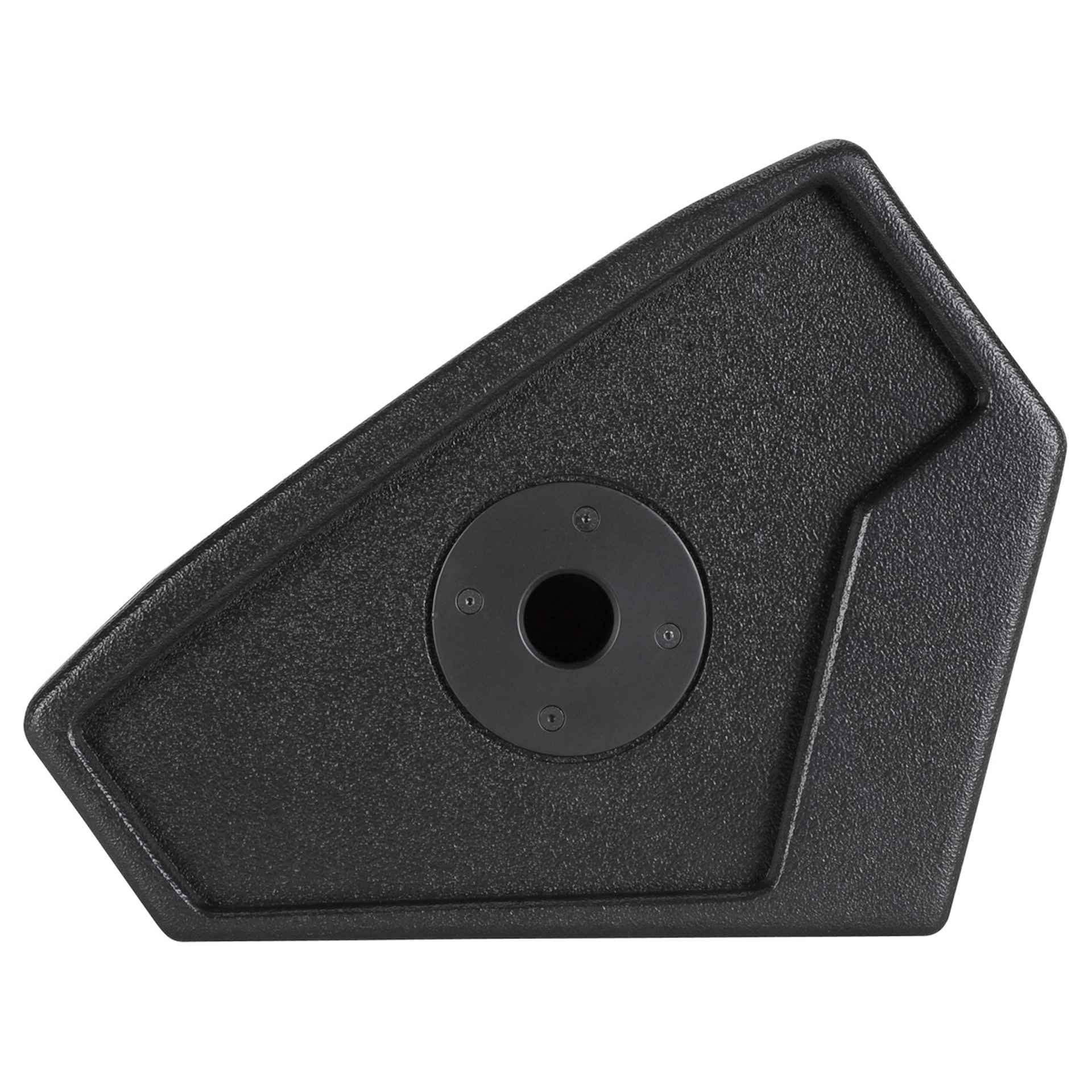

• Hardware: 35 mm pole mount insert, 1 Side Handle
• Dimensions: 21.65 x 12.76 x 16.42" / 550 x 324 x 417 mm
• Weight: 36.6 lbs / 16.6 kg

Packaging Info

• Package Weight: 44.53 lb / 20.2 kg
• Box Dimensions: 23.78 x 19.84 x 15.91"

Compliance

• Safety Agency: CE compliant
