Key Specifications

Performance

• Frequency Response (-3 dB): 50 Hz - 20000 Hz
• Max SPL: 130 dB
• Coverage Angle: 60° (H) x 60° (V)

Transducers

• Woofer: 1 x 15'', 2.5'' v.c. (Neodymium)
• Tweeter: 1 x 1'' Polyimide Dome, 1.7'' v.c. (Neodymium)

Processor & Power Section

Amplification

• Total Output Power: 700 W (RMS)
• LF / HF Power: 500 W / 200 W
• Crossover Frequency: 1700 Hz

Processing & Protections

• Protections: RMS, Thermal
• Dynamic Processing: Soft Limiter

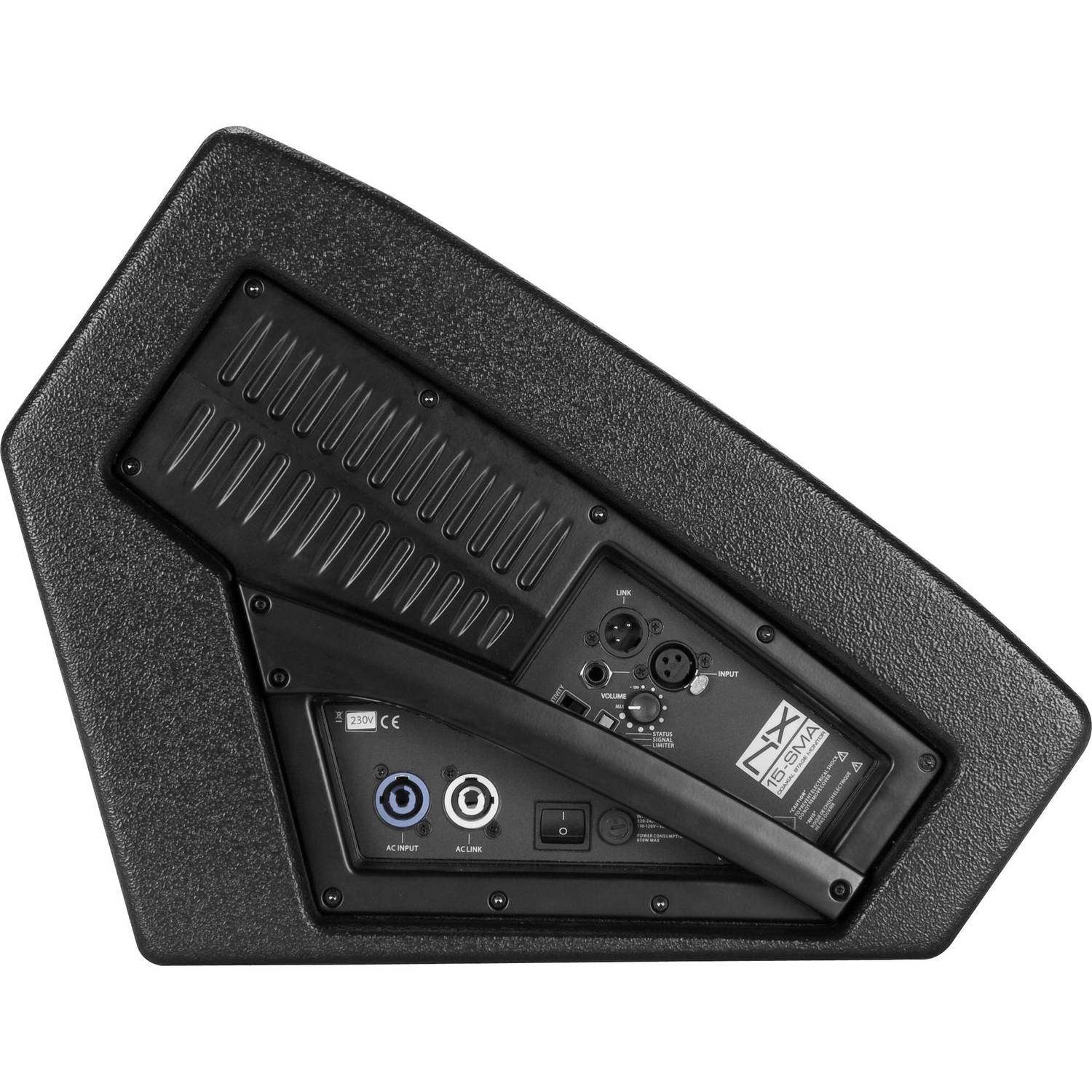

Input / Output Section

• Audio Inputs: 1 x XLR 3-Pin, 1 x 1/4" TRS
• Audio Output: 1 x XLR 3-Pin Loop
• Power: powerCON Input / Output

Physical Specifications

• Cabinet: Wood with Metal Grille
• Mounting: 1 x 1.38" / 35 mm Pole Socket
• Dimensions: 25.6 x 14.2 x 18.4" / 650 x 362 x 468 mm
• Weight: 43.6 lb / 19.8 kg
