Key Specifications

Speaker Type

Active Loudspeaker / Stage Monitor

Configuration

2-Way

Total Output Power

1050 W RMS / 2100 W Peak

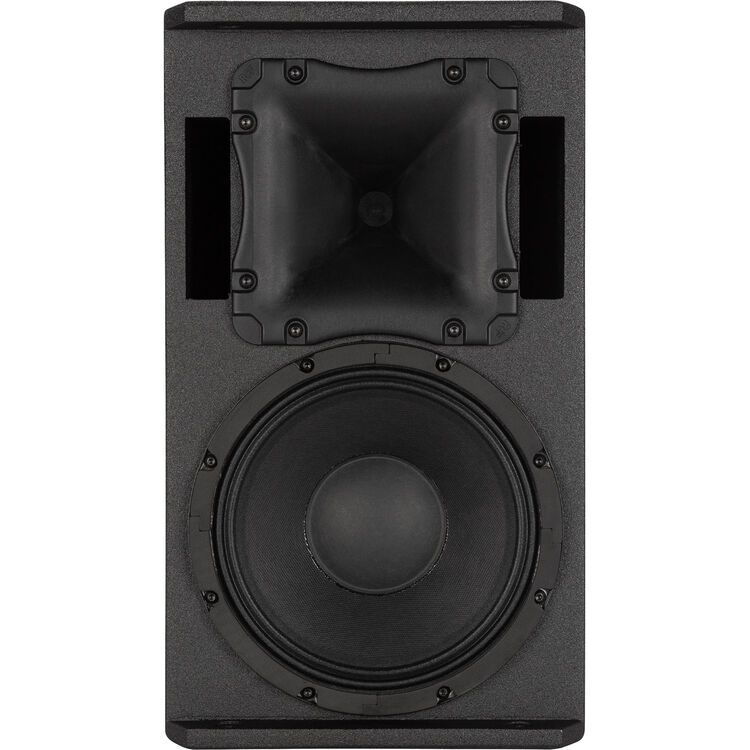

Drivers

Low Frequency (LF)

1 × 10" / 25.4 cm Woofer
Voice Coil: 2.5" / 63.5 mm
Magnet: Neodymium

High Frequency (HF)

1 × 1" / 25.4 mm Polyimide Compression Driver
Voice Coil: 1.75" / 44.45 mm
Magnet: Neodymium

Amplifier & Power

Amplifier Class

Class-D

LF Power

1400 W Peak

HF Power

700 W Peak

Performance

Frequency Range / Response

50 Hz to 20 kHz

Maximum SPL

130 dB (Peak)

Coverage Angle

100° H × 60° V

Protections

RMS, Signal Limiter, Thermal

Signal Processing

Crossover Frequency

1600 Hz

Dynamic Processing

Soft Limiter

Digital Signal Processing

FIR Filter, Venue Settings

Alignment Delay

No

Connectivity

Audio I/O

1 × Combo XLR-1/4" TRS Input
1 × XLR 3-Pin Thru / Output

Network / USB / Wireless

No

Power

AC Input Power

100 to 120 VAC, 60 Hz

AC Power I/O

1 × IEC Input

Power Consumption

300 W

Physical

Color

Black

Mounting

Stand Mount
1 × Pole Socket (Bottom)
2 × M10 Fly Points (Top)
1 × M10 Fly Point (Each Side)
1 × M10 Fly Point (Bottom)
1 × M10 Fly Point (Rear)

Handles

1 × Top

Construction Material

Plywood, Stainless Steel Grille

Dimensions (H × W × D)

20 × 11.6 × 13.1" / 508 × 294.6 × 332.7 mm

Weight

36.2 lb / 16.4 kg

Packaging Information

Package Weight

40.76 lb

Box Dimensions (L × W × H)

22.2 × 15.1 × 14.7"
