Key Specifications

Performance

• Frequency Response: 50 Hz - 20000 Hz
• Max SPL @ 1m: 130 dB
• Coverage Angle: 100° (H) x 70° (V)

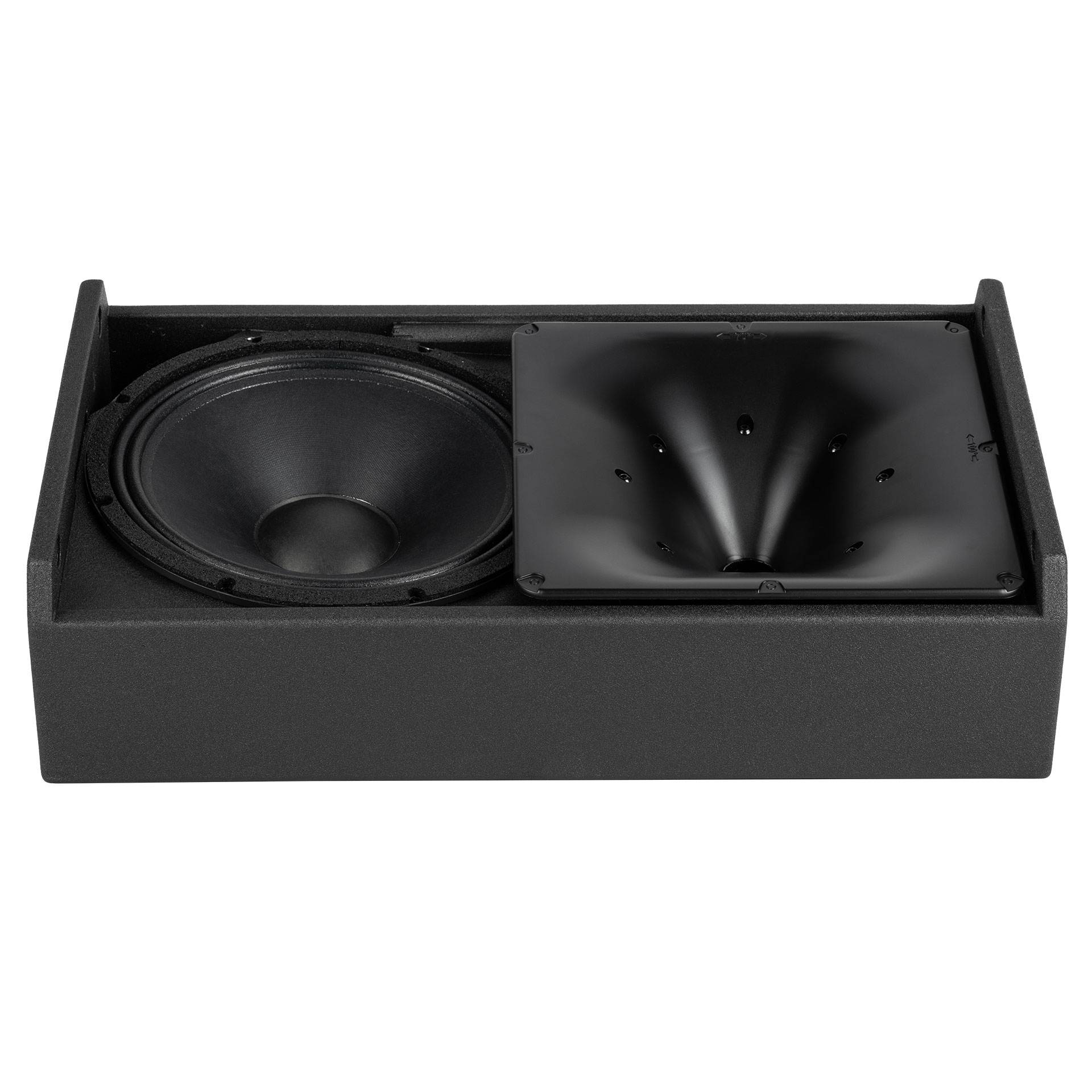

Transducers

• Woofer: 1 x 12'', 2.5'' v.c.
• Compression Driver: 1 x 1.0'', 1.75'' v.c.

Processor & Power Section

Amplification

• Total Power: 2100 W Peak
• LF / HF: 1400 W / 700 W Peak
• Cooling: Convection

Processing & Protections

• Crossover Frequency: 1600 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter

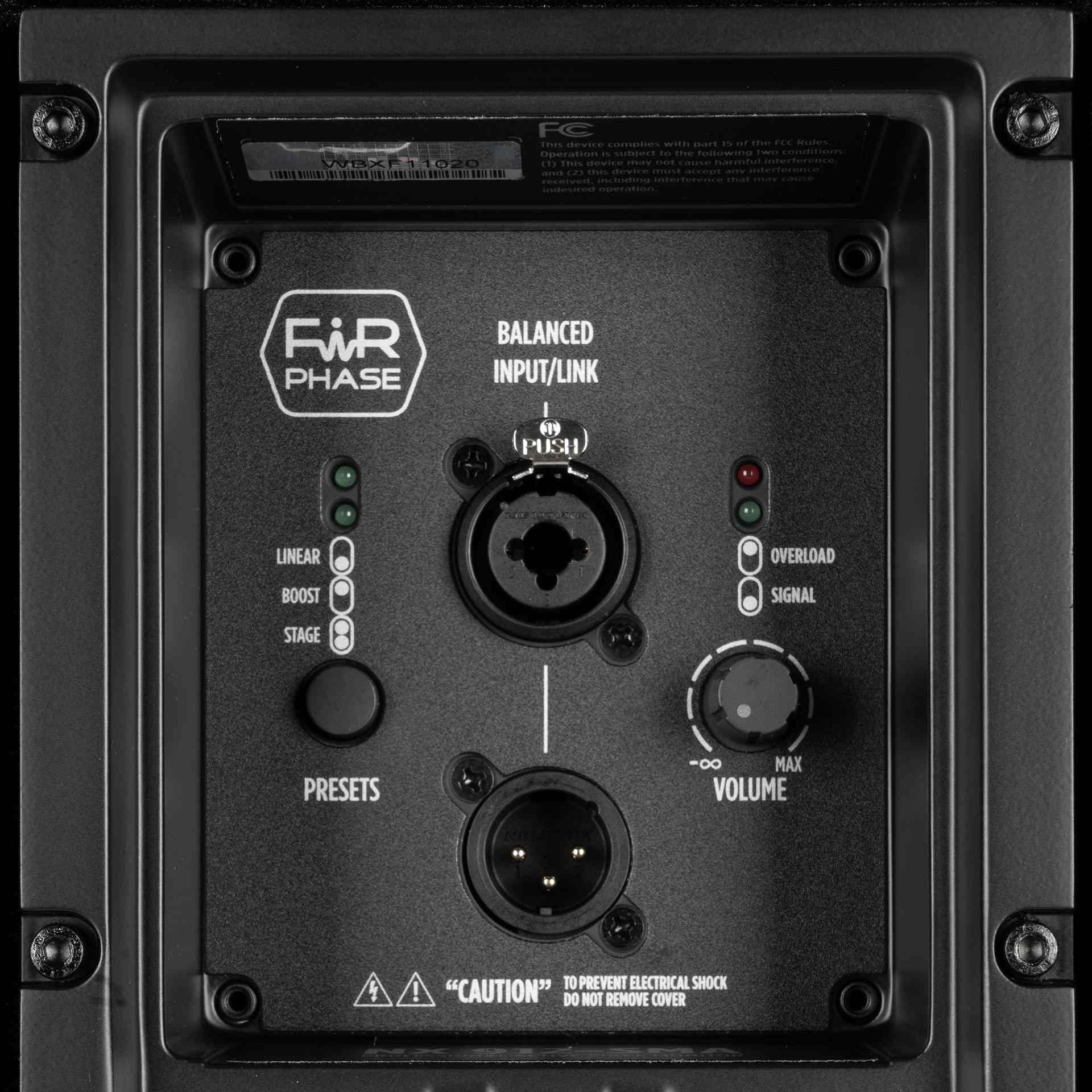

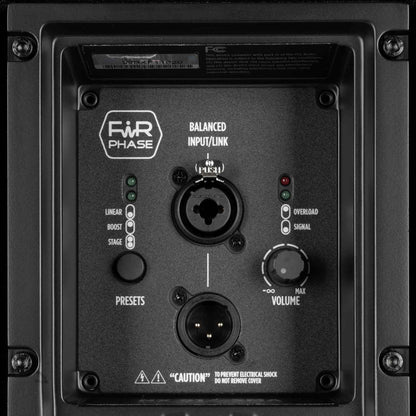

Input / Output Section

• Inputs: Combo XLR/Jack (bal/unbal)
• Output: XLR Loop Out

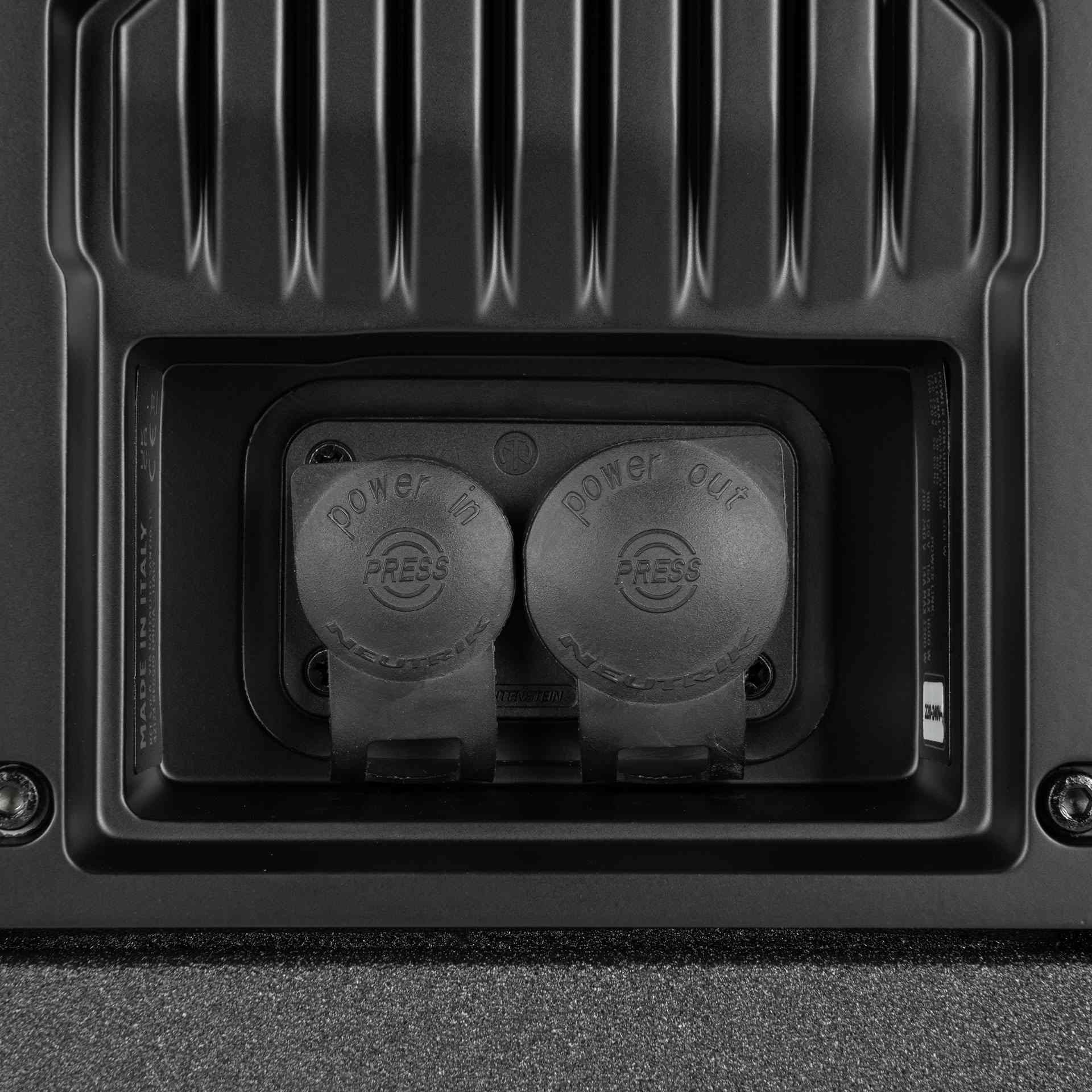

• Power: Powercon TRUE1 TOP IN/OUT

Physical Specifications

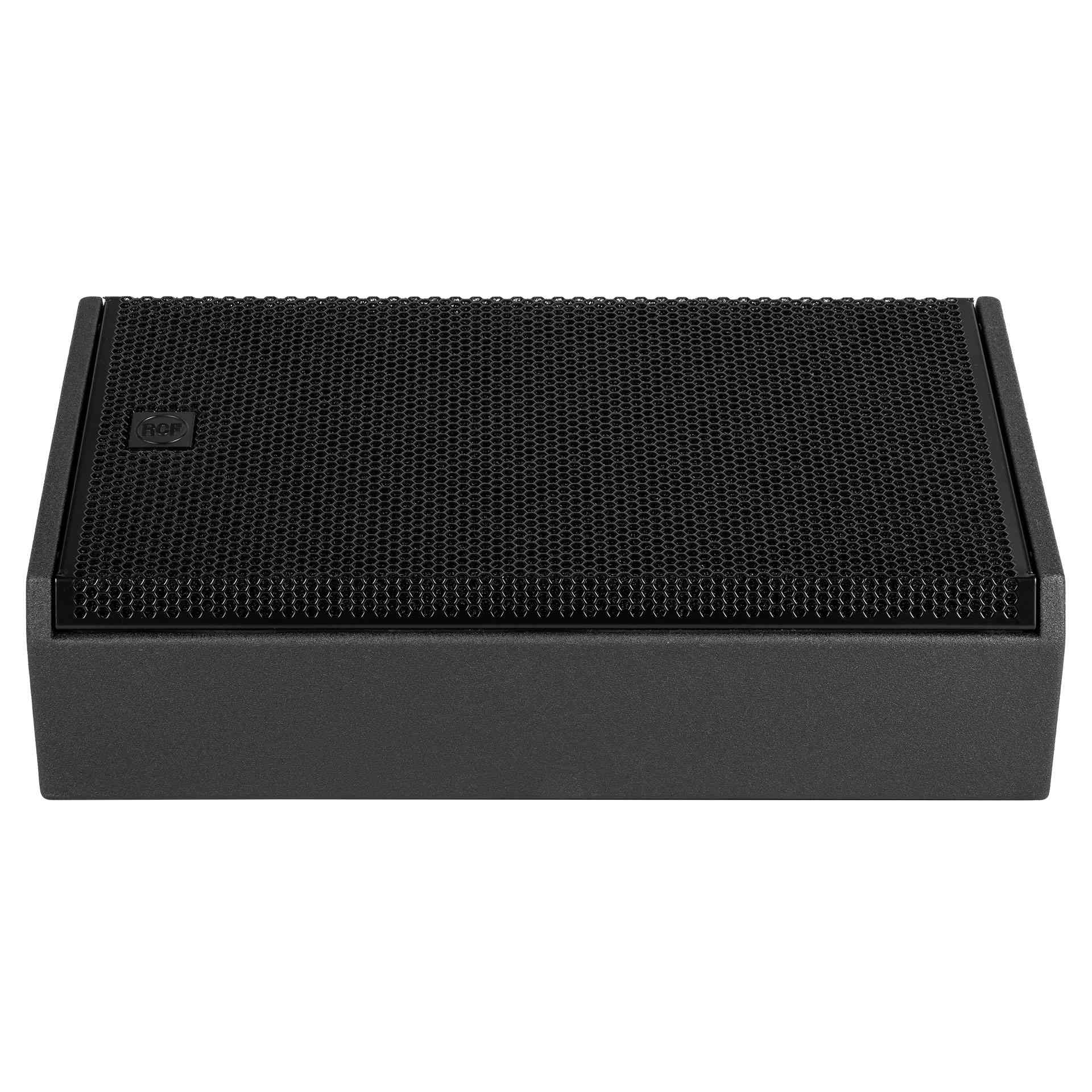

• Cabinet: Plywood with Steel Grille

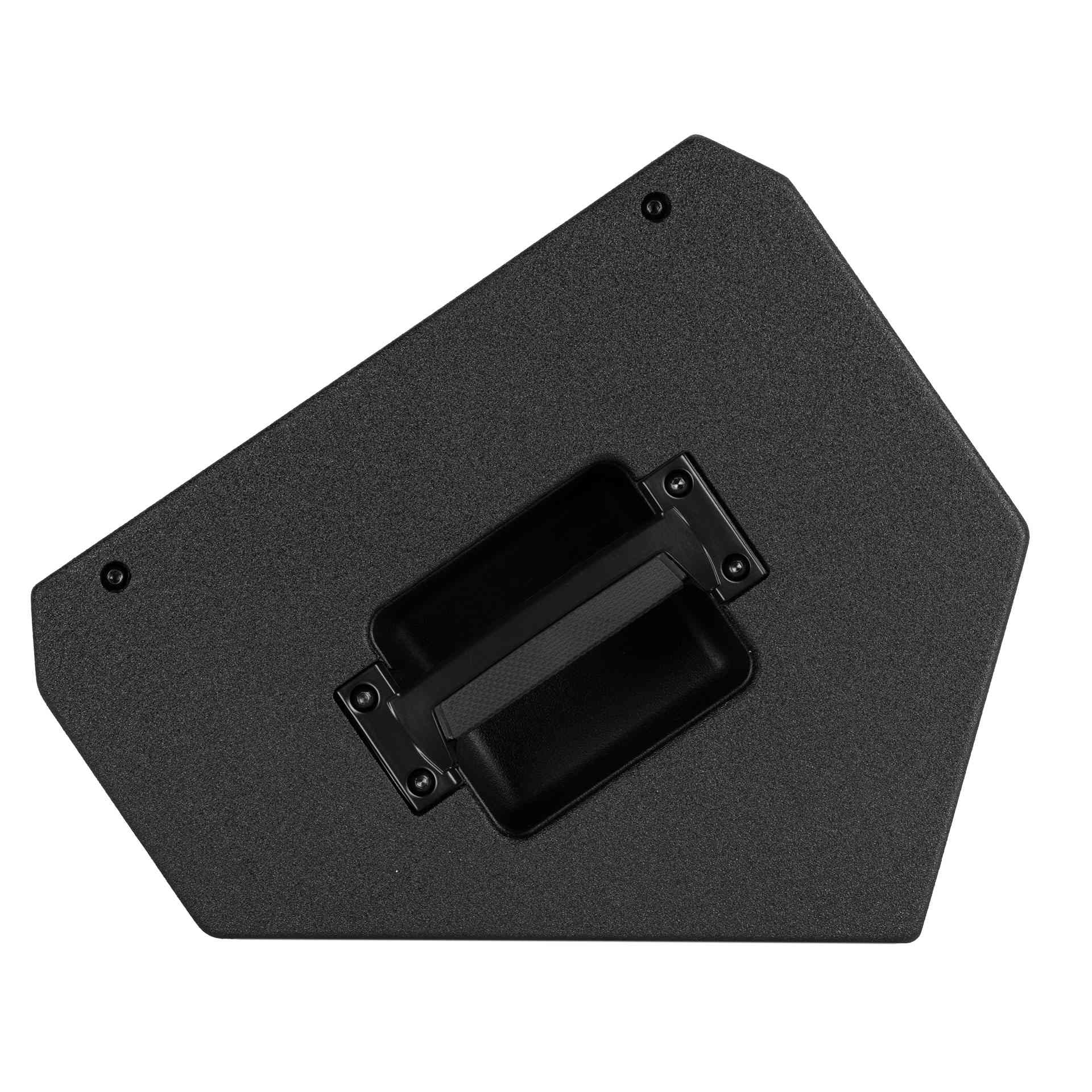

• Handles: 1 Side, 1 Top

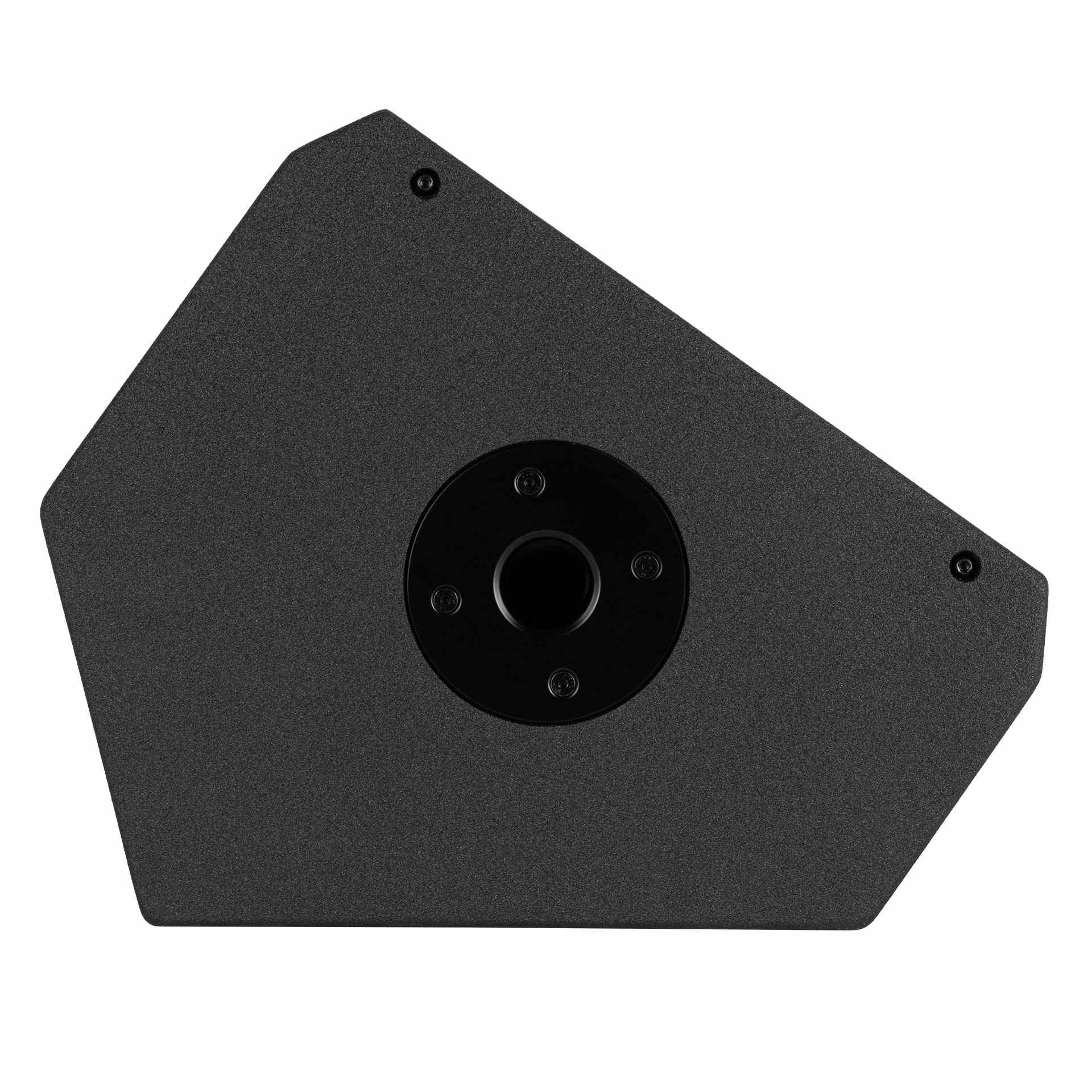

• Pole Mount: 35 mm insert
• Dimensions: 24.41 x 12.6 x 15.51" / 620 x 320 x 394 mm
• Weight: 44.09 lbs / 20 kg

Packaging Info

• Package Weight: 50.71 lb / 23 kg
• Box Dimensions: 26.57 x 16.73 x 14.57"
