Key Specifications

Performance

• Frequency Response: 45 Hz - 20000 Hz
• Max SPL @ 1m: 131 dB
• Coverage Angle: 100° (H) x 70° (V)

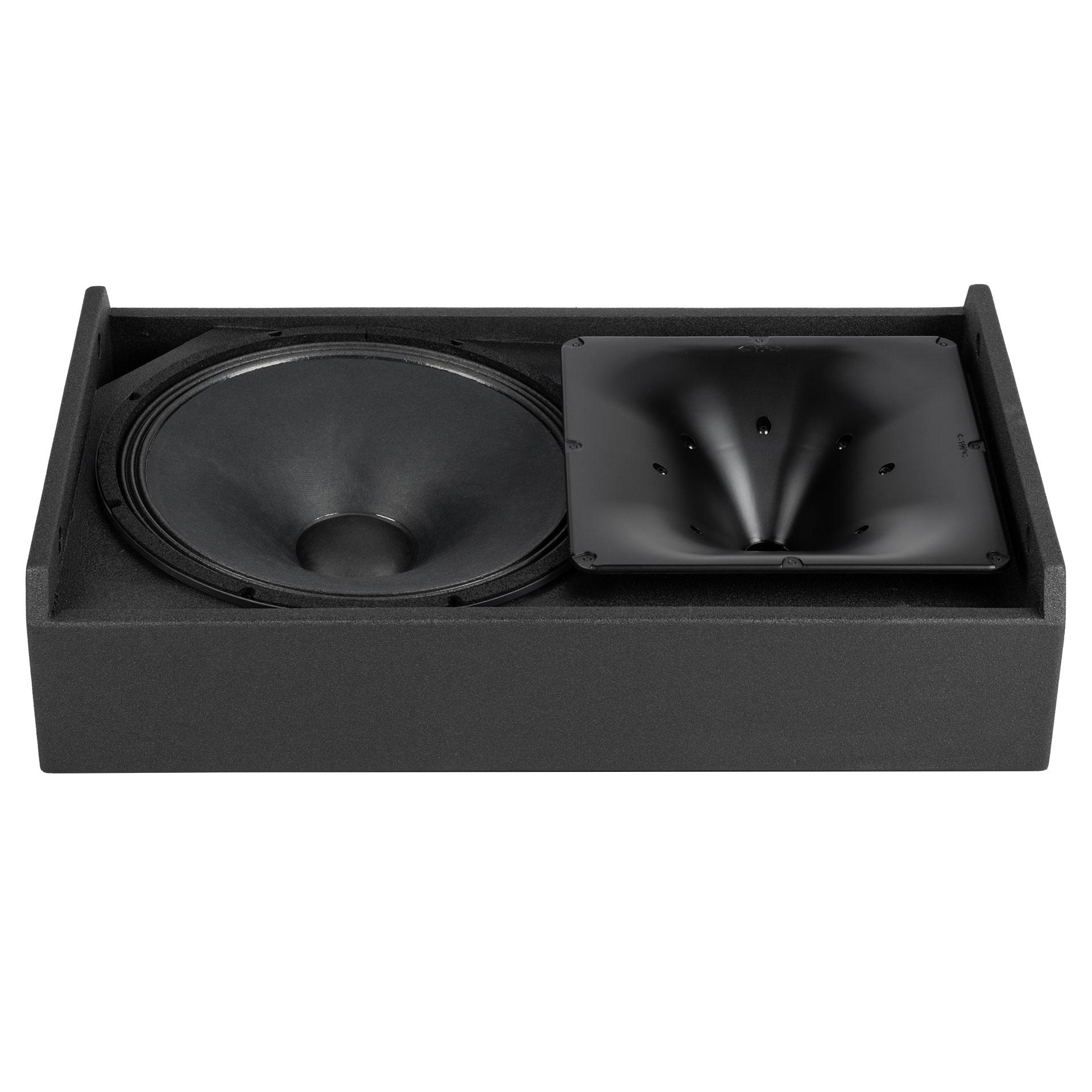

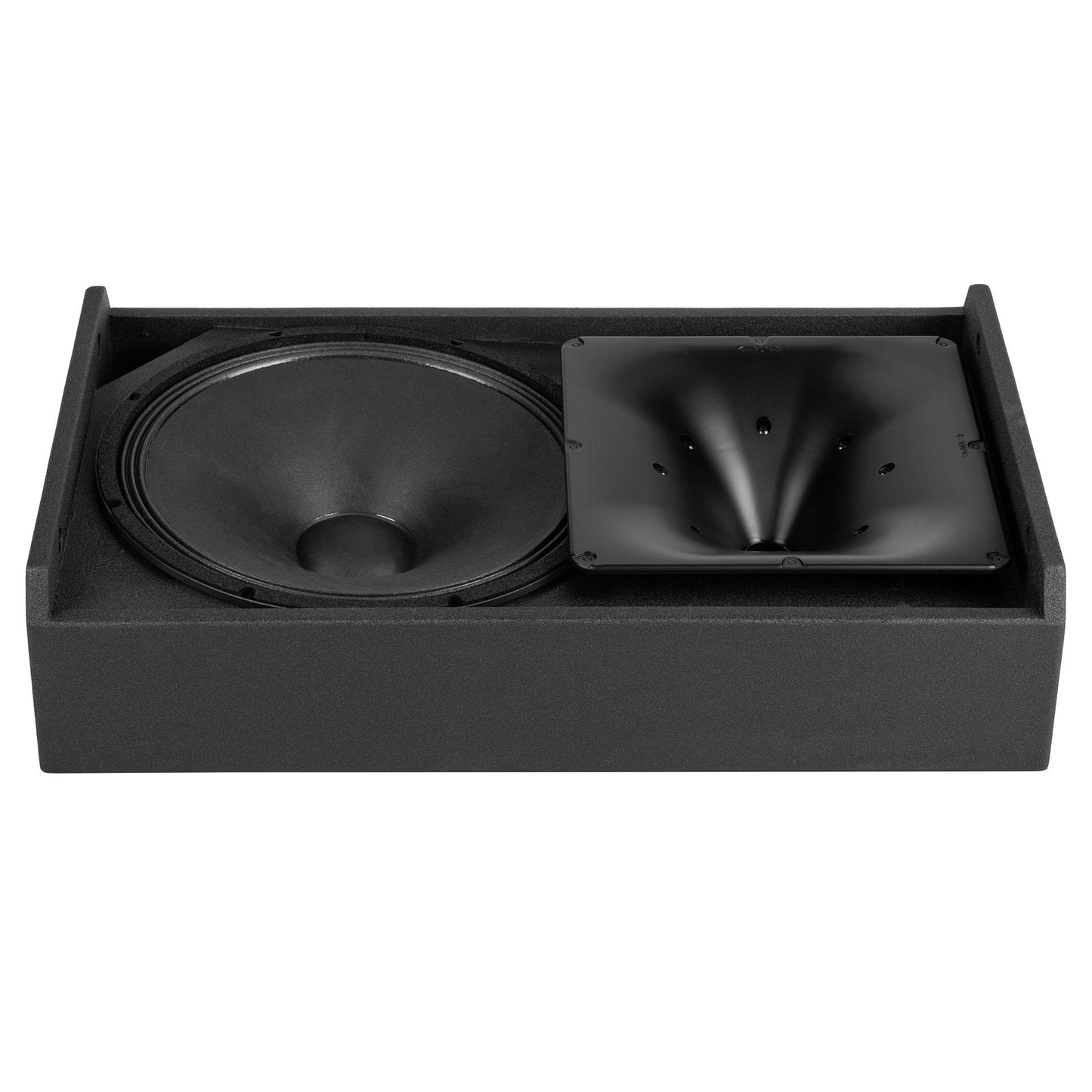

Transducers

• Woofer: 1 x 15'', 2.5'' v.c.
• Compression Driver: 1 x 1.0'', 1.75'' v.c.

Processor & Power Section

Amplification

• Total Power: 2100 W Peak
• LF / HF: 1400 W / 700 W Peak
• Cooling: Convection

Processing & Protections

• Crossover Frequency: 1600 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter

Input / Output Section

• Inputs: Combo XLR/Jack (bal/unbal)
• Output: XLR Loop Out
• Power: Powercon TRUE1 TOP IN/OUT

Physical Specifications

• Cabinet: Plywood with Steel Grille
• Handles: 1 Side, 1 Top
• Pole Mount: 35 mm insert
• Dimensions: 27.76 x 14.07 x 17.98" / 705 x 357.3 x 456.6 mm
• Weight: 52.47 lbs / 23.8 kg

Packaging Info

• Package Weight: 60.63 lb / 27.5 kg
• Box Dimensions: 29.33 x 19.88 x 16.73"

Compliance

• Safety Agency: CE compliant
