Key Specifications

Speaker Type

Active Loudspeaker/Stage Monitor

Configuration

2-Way

Total Output Power

2100 W Peak

LF Driver

1x 12" / 30.5 cm Woofer
Voice Coil: 2.5" / 63.5 mm
Magnet: Neodymium

HF Driver

1x 1.4" / 35.6 mm Polyimide Compression Driver
Voice Coil: 3" / 76.2 mm
Magnet: Neodymium

Frequency Range/Response

45 Hz to 20 kHz

Speaker

Speaker Type

Active Loudspeaker/Stage Monitor

Configuration

2-Way

Enclosure Type

Bass-Reflex

Total Output Power

2100 W Peak

Amplifier Power Rating

Low Frequency (LF)
1400 W Peak
Mid Frequency (MF)
700 W Peak

Amplifier Class

Class-D

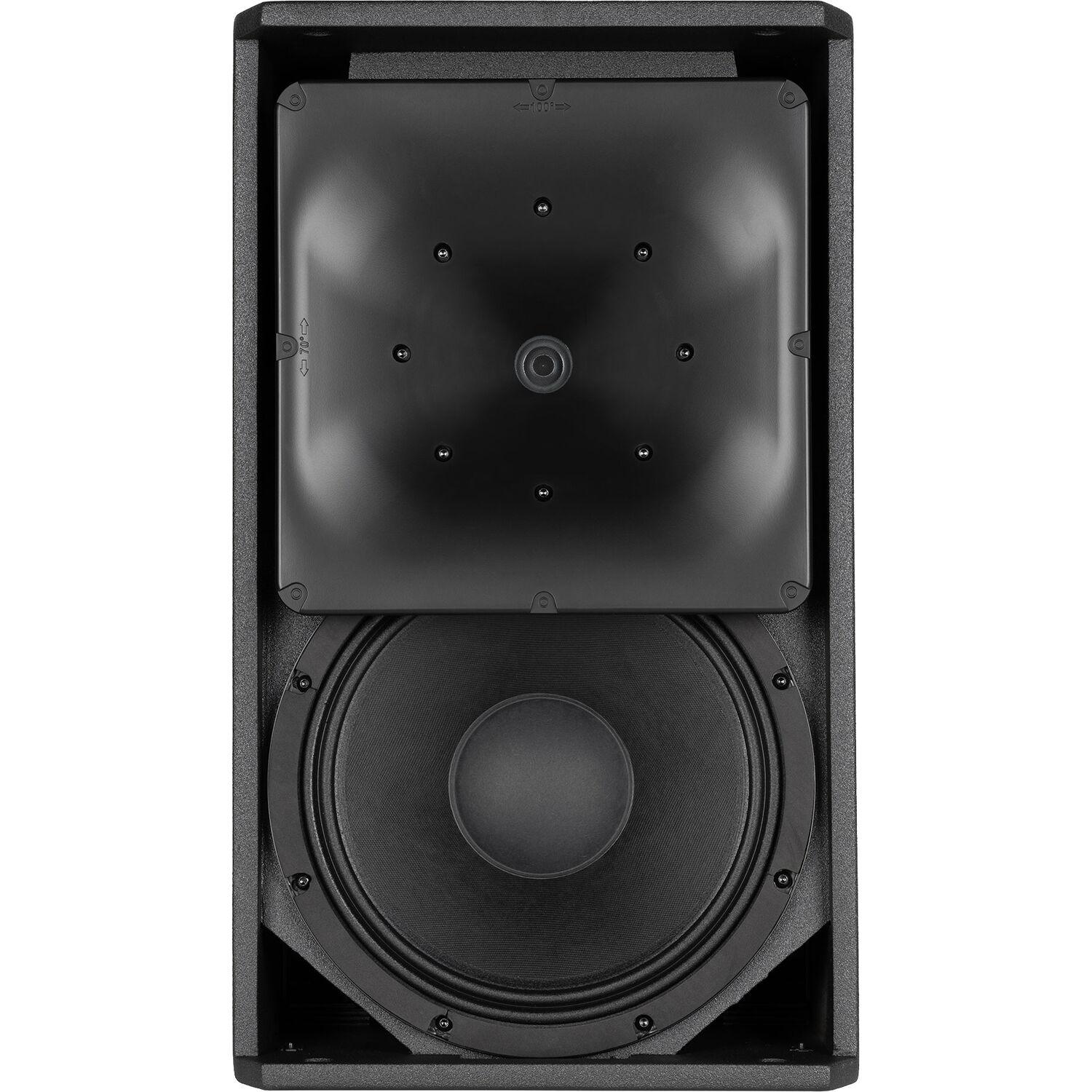

Drivers

LF Driver

1x 12" / 30.5 cm Woofer
Voice Coil: 2.5" / 63.5 mm
Magnet: Neodymium

HF Driver

1x 1.4" / 35.6 mm Polyimide Compression Driver
Voice Coil: 3" / 76.2 mm
Magnet: Neodymium

Performance

Frequency Range/Response

45 Hz to 20 kHz

Maximum SPL

132 dB (Peak)

Coverage Angle

100° H x 70° V

Protections

RMS, Signal Limiter, Thermal

Signal Processing

Crossover Frequency

700 Hz

EQ & Filters

No

Dynamic Processing

Soft Limiter

Alignment Delay

No

Digital Signal Processing

FIR Filter, Venue Settings

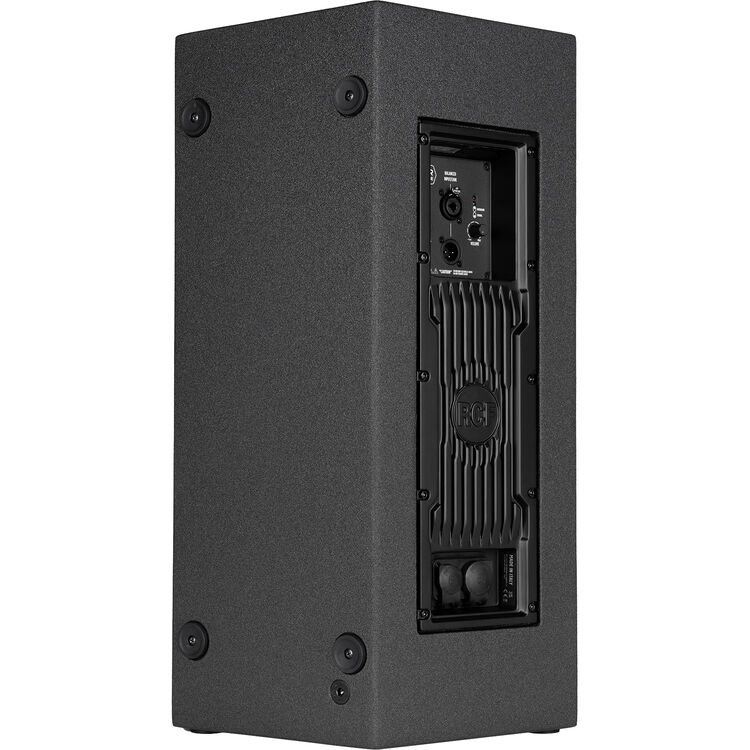

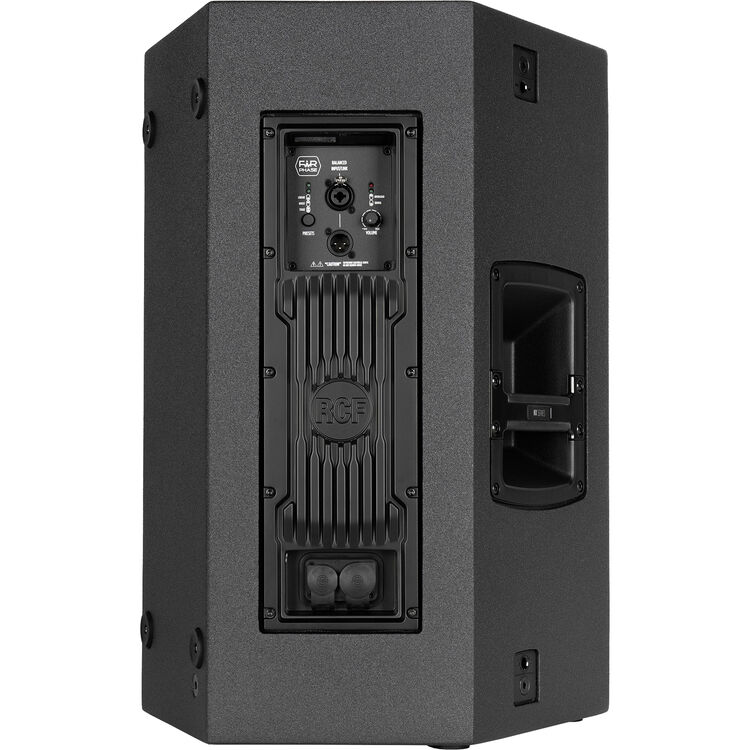

Connectivity

Audio I/O

1x Combo XLR-1/4" TRS Input
1x XLR 3-Pin Thru/Output

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100 to 120 VAC, 60 Hz

AC Power I/O

1x powerCON TRUE1 Input
1x powerCON TRUE1 Output

Power Consumption

300 W

Physical

Color

Black

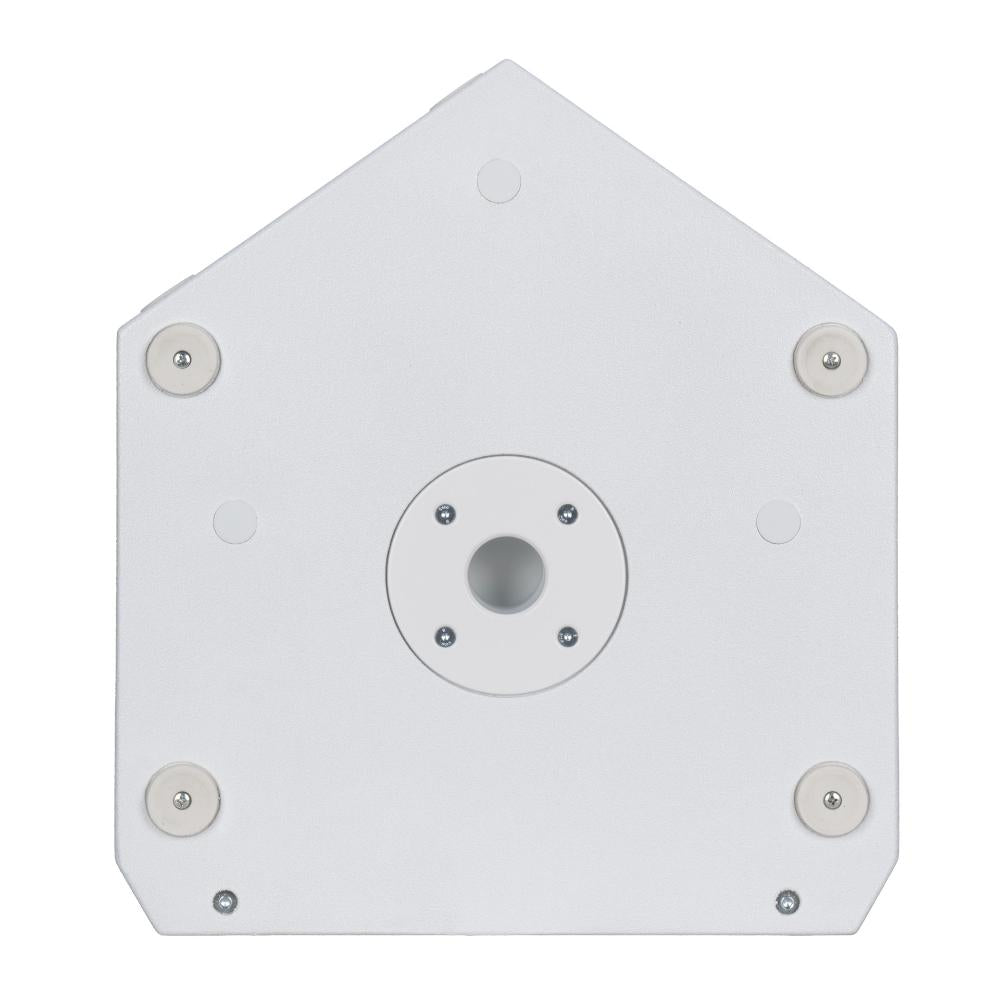

Mounting

Stand Mount
1 x Pole Socket - Unspecified Size (Bottom)

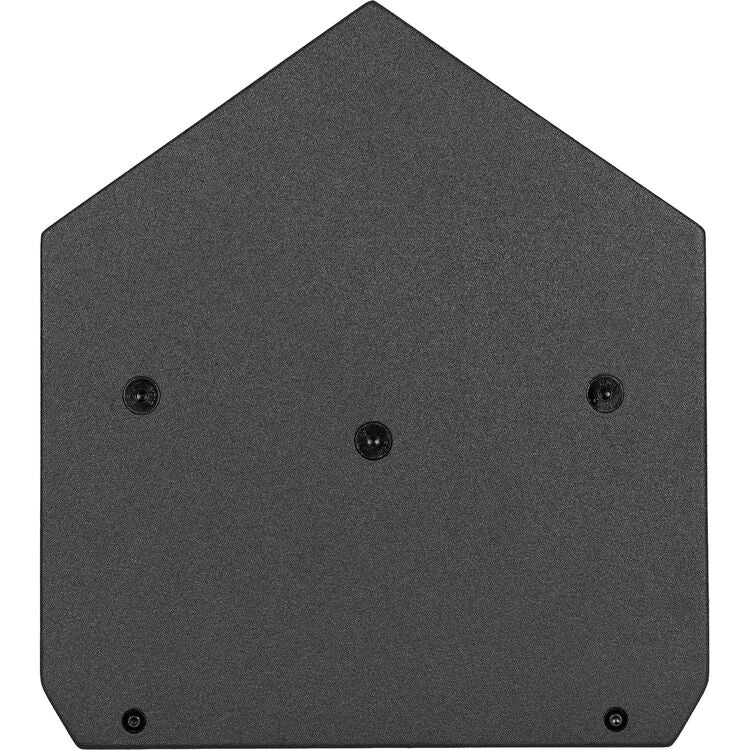

Suspension Points
2 x M10 Fly Point (Top)
1 x M10 Fly Point (Each Side)
1 x M10 Fly Point (Rear)

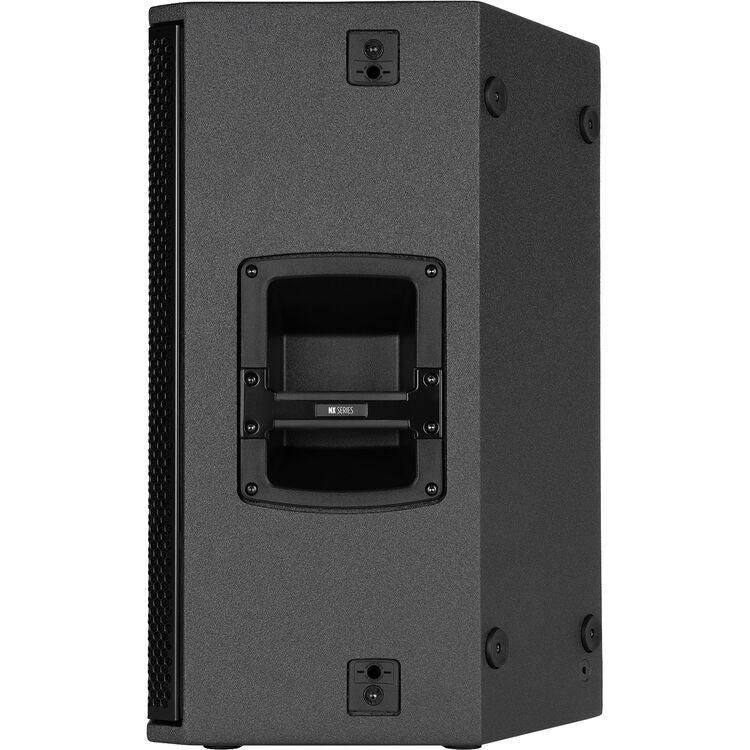

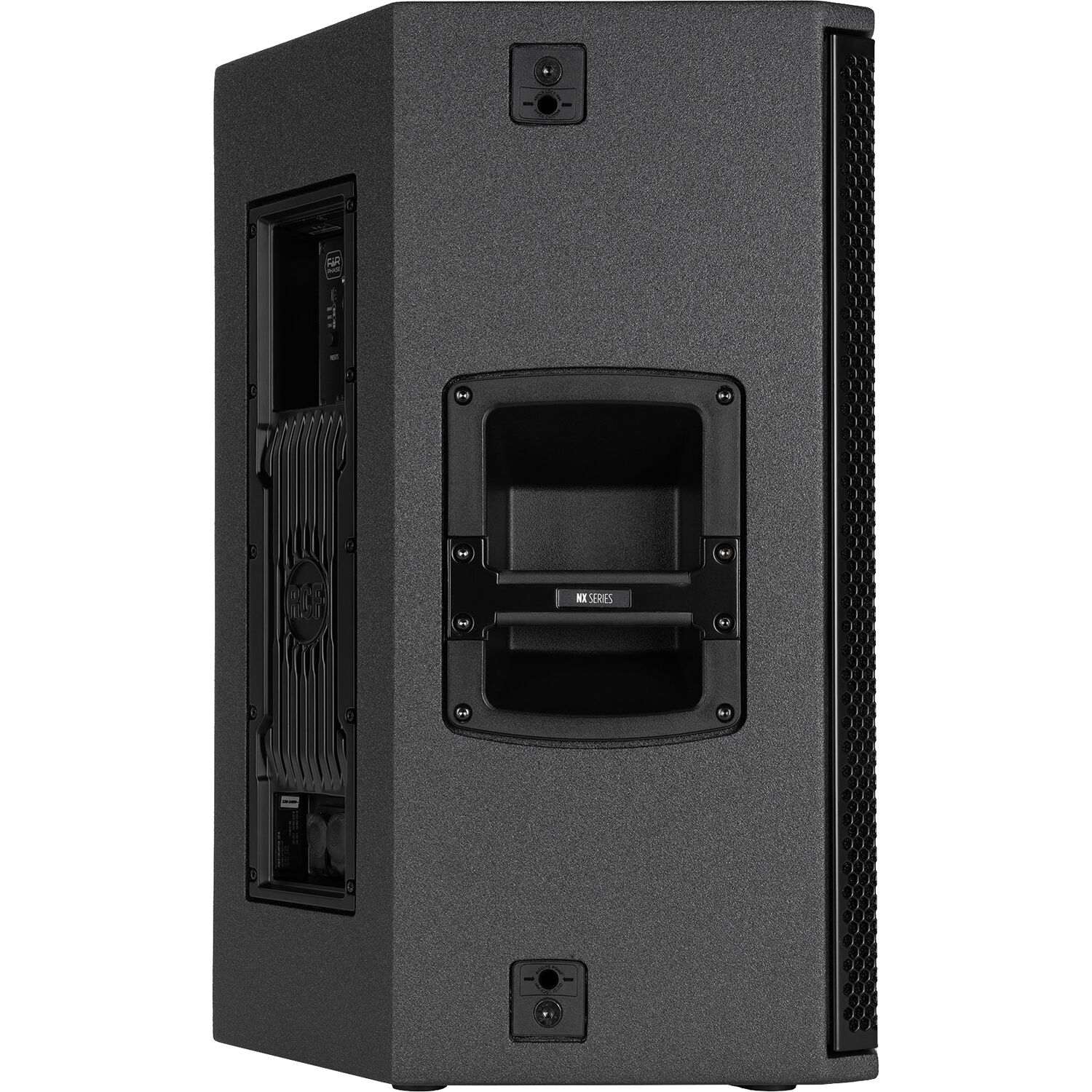

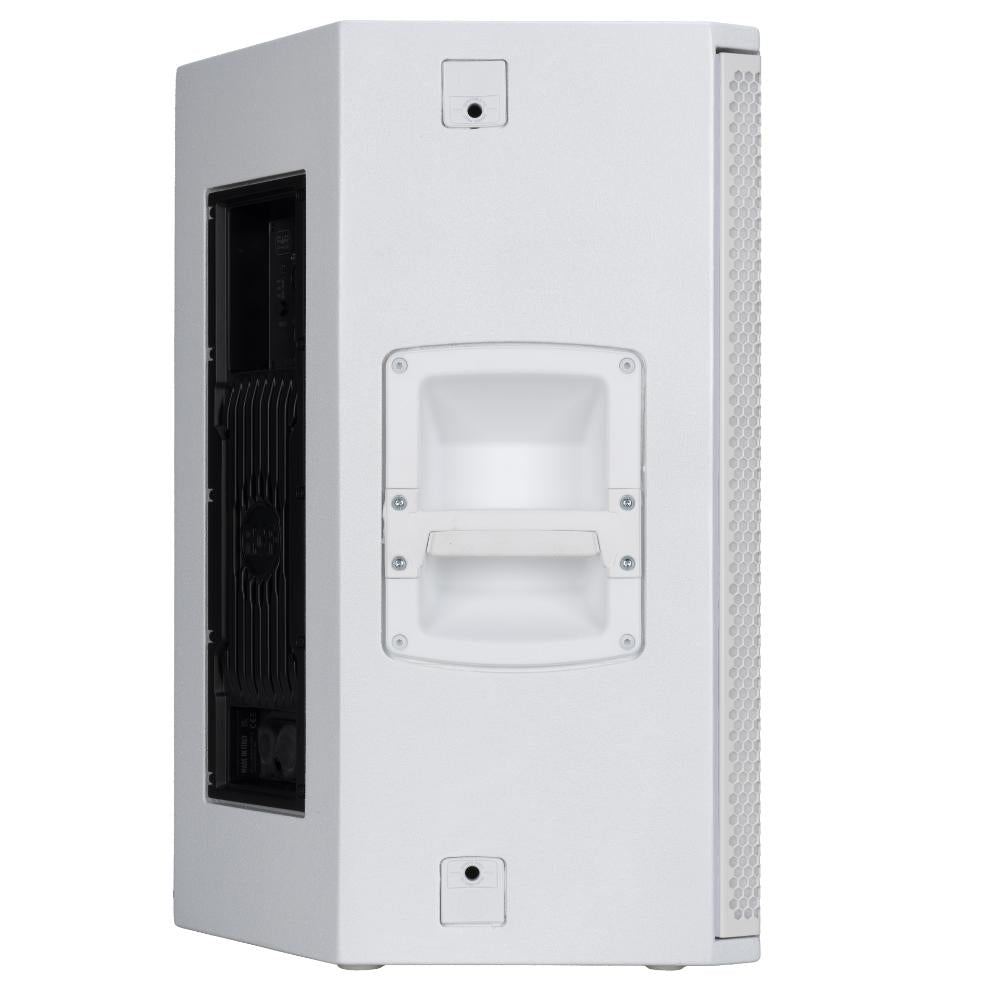

Handles

1x Each Side

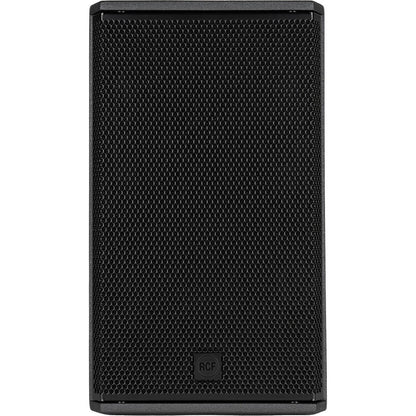

Construction Material

Plywood, Stainless Steel Grille

Environmental Resistance

No

Dimensions

24.4 x 15.9 x 14.3" / 619.8 x 403.9 x 363.2 mm

Weight

50.5 lb / 22.9 kg

Packaging Info

Package Weight

57 lb

Box Dimensions (LxWxH)

27 x 18 x 16"
