Key Specifications

Speaker Type

Active Loudspeaker / Stage Monitor

Configuration

3-Way

Total Output Power

2100 W Peak

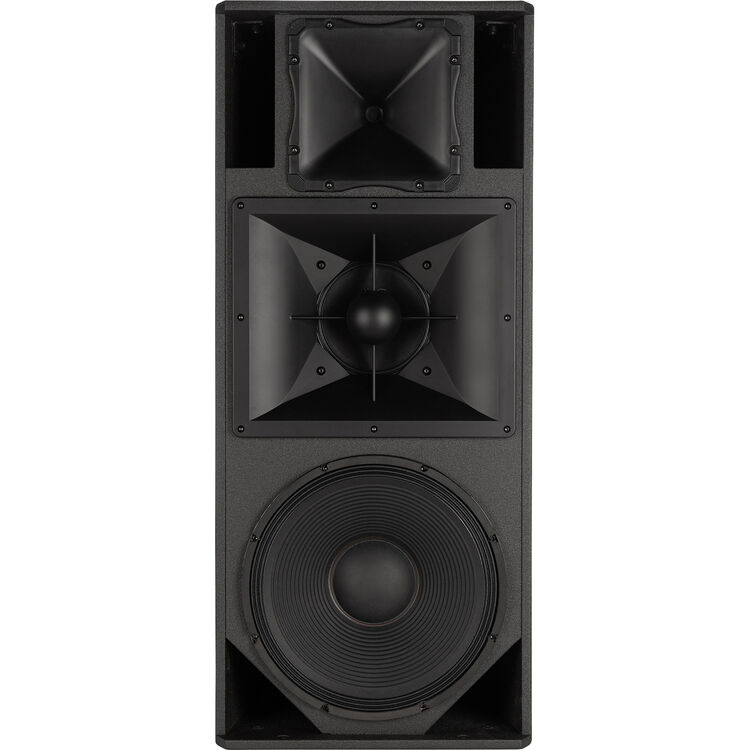

Drivers

Low Frequency (LF)

1 × 15" / 38 cm Woofer
Voice Coil: 3" / 76.2 mm
Magnet: Neodymium

Mid Frequency (MF)

1 × 8" / 20.32 cm Woofer
Voice Coil: 2.5" / 63.5 mm
Magnet: Neodymium

High Frequency (HF)

1 × 1" / 25.4 mm Polyimide Compression Driver
Voice Coil: 1.75" / 44.45 mm
Magnet: Neodymium

Amplifier & Power

Amplifier Class

Class-D

LF Power

1400 W Peak

MF Power

500 W Peak

HF Power

200 W Peak

Performance

Frequency Range / Response

40 Hz to 20 kHz

Maximum SPL

138 dB (Peak)

Coverage Angle

100° H × 60° V

Protections

RMS, Signal Limiter, Thermal

Signal Processing

Crossover Frequency

1200 Hz

Dynamic Processing

Soft Limiter

Digital Signal Processing

FIR Filter, Venue Settings

Alignment Delay

No

Connectivity

Audio I/O

1 × Combo XLR-1/4" TRS Input
1 × XLR 3-Pin Thru / Output

Network I/O

No

USB / Wireless

No

Power

AC Input Power

100 to 120 VAC, 60 Hz

AC Power I/O

1 × powerCON TRUE1 Input
1 × powerCON TRUE1 Output

Physical

Color

Black

Mounting

3 × M10 Fly Points (Top)
1 × M10 Fly Point (Each Side)
1 × M10 Fly Point (Bottom)
2 × M10 Fly Points (Rear)

Handles

1 × Each Side

Construction Material

Plywood, Stainless Steel Grille

Dimensions (H × W × D)

42.3 × 18.7 × 18.2" / 1074.4 × 475 × 462.3 mm

Weight

99.2 lb / 45 kg

Packaging Information

Package Weight

103.5 lb

Box Dimensions (L × W × H)

44 × 21 × 19.5"
