NX SYNC

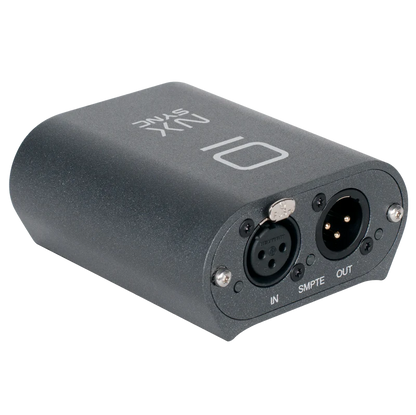

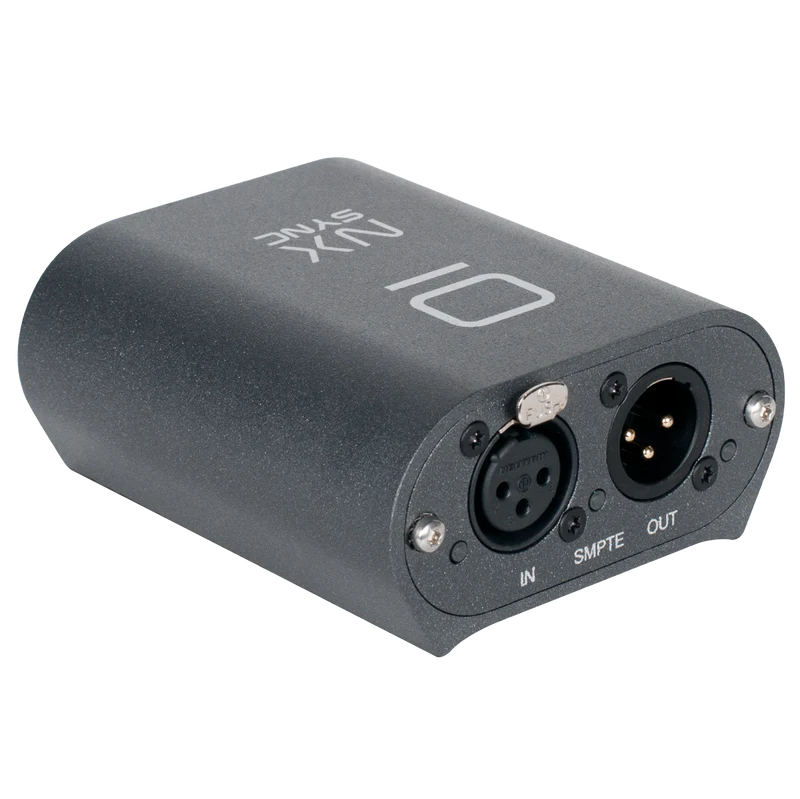

Two 3-pin XLR connectors for LTC Timecode In/Out
SMPTE Timecode @ 24, 25, 29.97 and 30 frames per second
Native Plug-and-Play USB Connection for ONYX, PC and MAC (no custom drivers required)
USB Powered
Convenient, space-saving, stackable design
Rugged impact-resistant housing

OBSIDIAN

₱32,000.00 VAT INC.

₱32,000.00

UNIT: PIECE/S

Product Code: SKU:OBSI-NXSYNC-CHN-5070

Two 3-pin XLR connectors for LTC Timecode In/Out
SMPTE Timecode @ 24, 25, 29.97 and 30 frames per second
Native Plug-and-Play USB Connection for ONYX, PC and MAC (no custom drivers required)
USB Powered
Convenient, space-saving, stackable design
Rugged impact-resistant housing

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

OBSIDIAN NX SYNC

Key Specifications
Connections
Timecode Input	3-pin Locking XLR Female
Timecode Output	3-pin Locking XLR Male
USB Input	USB 2.0 Type-B
Requirements
Supported Timecode Formats	SMPTE (LTC) 24, 25, 29.97, and 30 fps
Windows Compatibility	Windows 10 / Windows 11 64-bit (Home, Pro, Enterprise)
macOS Compatibility	macOS 10.13 or Higher
Physical
Length	92 mm (3.7 in.)
Width	82 mm (3.3 in.)
Height	41 mm (1.7 in.)
Weight	245 g (0.6 lb)
Electrical
Power Requirement	5 V via USB
