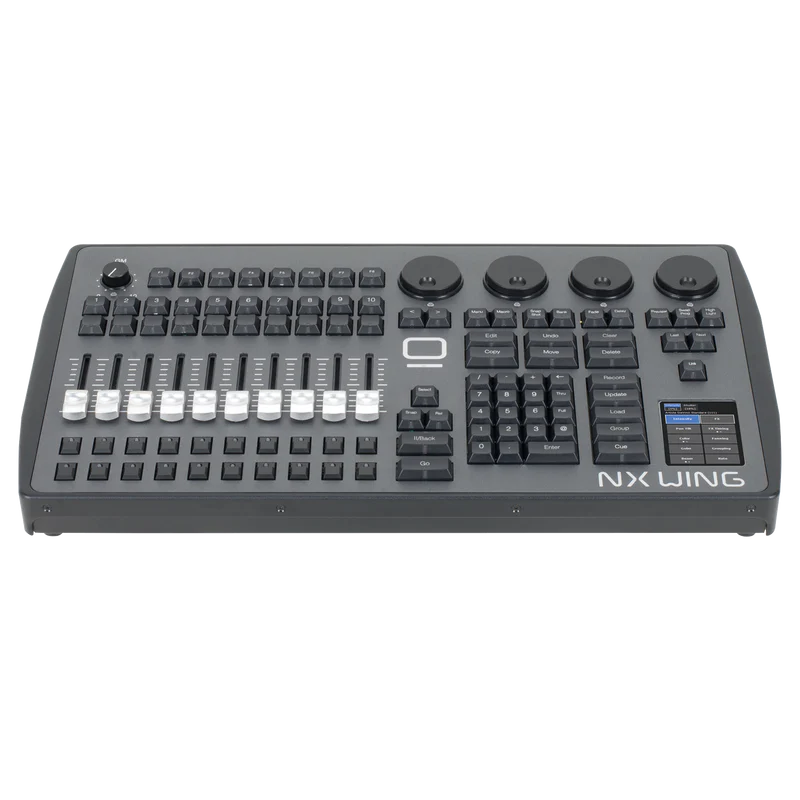

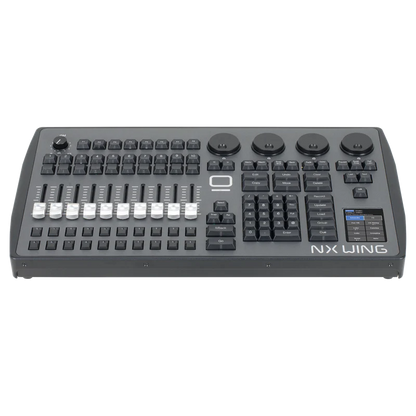

OBSIDIAN NX Wing
OBSIDIAN NX Wing
|
Key Specifications |
|
|
Control Surface |
|
|
Playback Faders |
10 x 60 mm Playback Faders, Each with 4 Function-Assignable Buttons |
|
Multi-Function Keys |
8 Customizable Keys |
|
Playback Controls |
Playback Select Button |
|
Master Go Section |
Go, Pause, Snap, and Release Buttons |
|
Rotary Encoders |
4 Digital Rotary Encoders with Push Function and Status LED |
|
Touchscreen |
3.5" / 8.9 cm RGB Touchscreen |
|
Grand Master Control |
Grand Master Rotary Fader and Button |
|
Navigation Buttons |
Blind, Highlight, Last, and Next |
|
Keypad |
Full Numerical Keypad and Command Keys |
|
Connections |
|
|

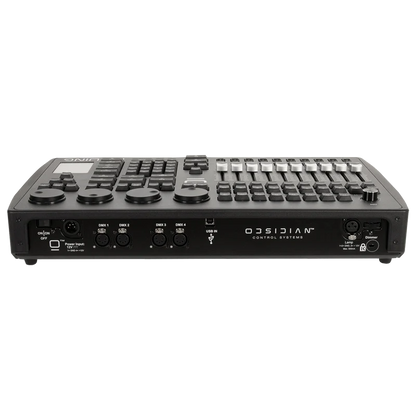

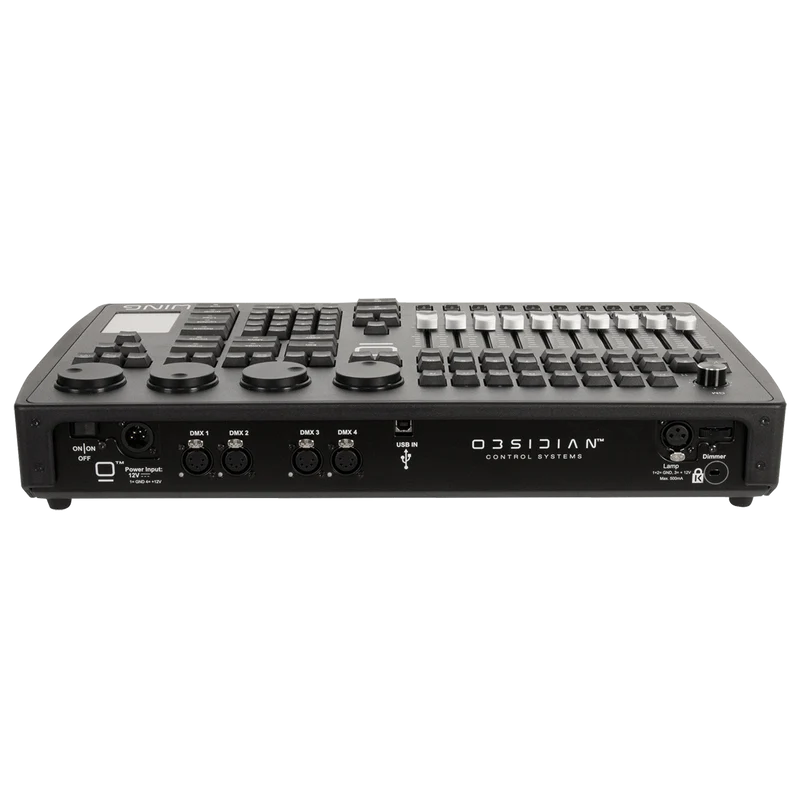

DMX / RDM Ports |
4 x 5-Pin XLR Locking Universe Input / Output |
|

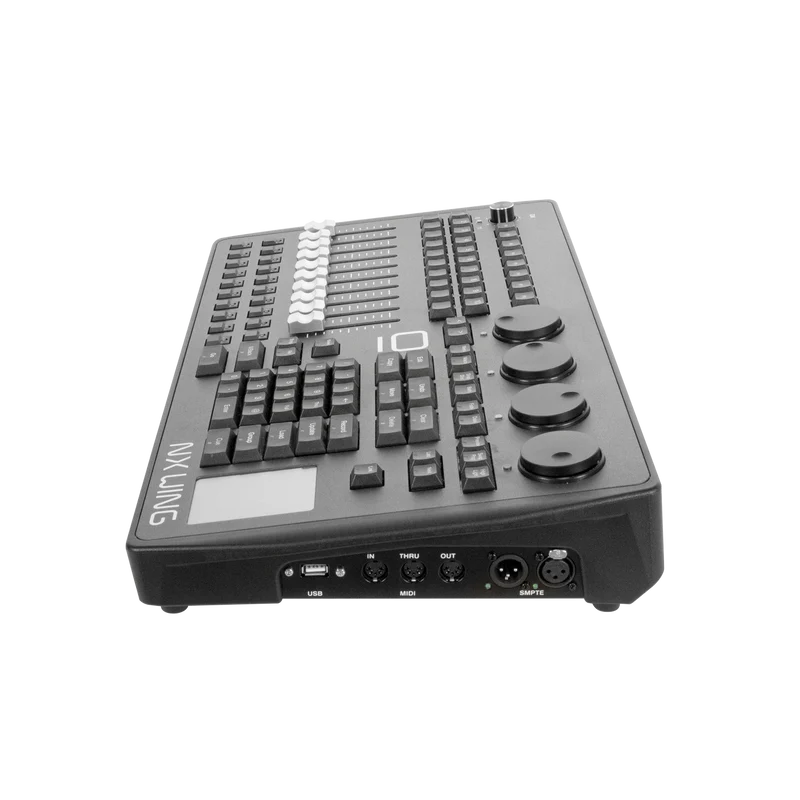

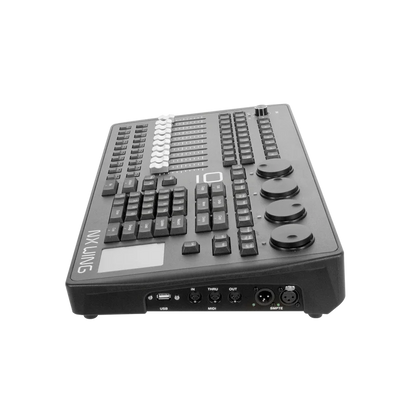

MIDI Input |
1 x 5-Pin DIN |
|
MIDI Output |
1 x 5-Pin DIN |
|
MIDI Thru |
1 x 5-Pin DIN |
|
SMPTE Timecode Input |
1 x 3-Pin XLR |
|
SMPTE Timecode Output |
1 x 3-Pin XLR |
|
Power Input |
1 x 4-Pin XLR (12 VDC) |
|

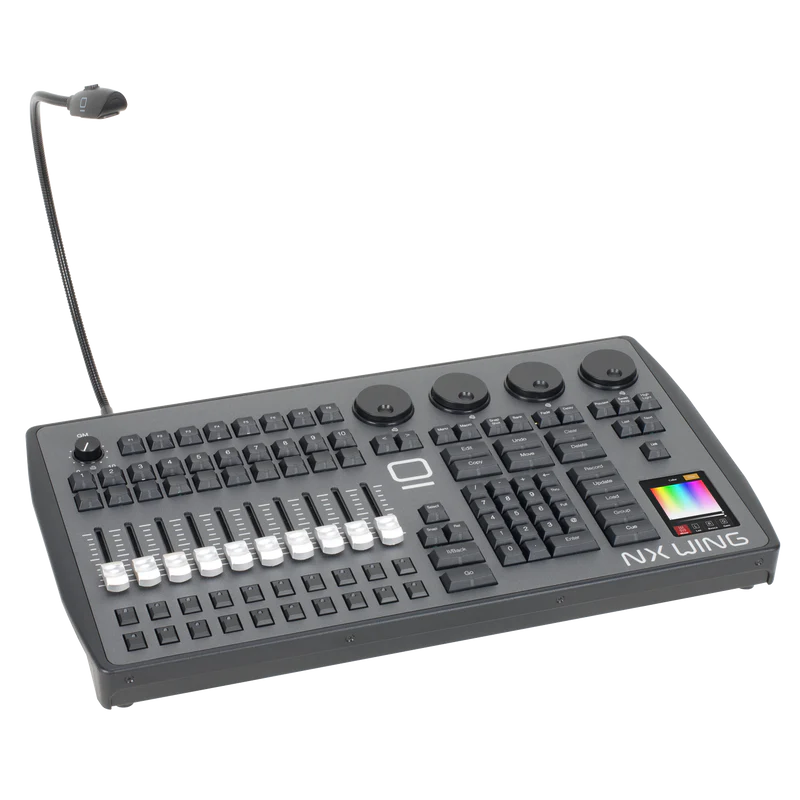

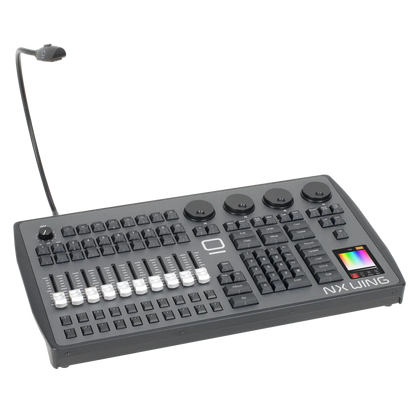

Desk Lamp Output |
1 x 4-Pin XLR (12 VDC) |
|
USB Boot Port |
1 x USB Type-B 2.0 |
|
USB Drive Port |
1 x USB Type-A |
|
System Requirements |
|
|
Operating System |
Windows 10 |
|
Processor |
Intel Core i3 6th Generation or Higher |
|
Memory |
4 GB RAM |
|
Storage |
2 GB Available Disk Space (SSD Recommended) |
|
Display Requirement |
Widescreen Monitor, Minimum 1280 × 768 Resolution (Capacitive Multi-Touch Recommended) |
|
USB Port |
USB 2.0 |
|
Art-Net Network Port |
10/100 Ethernet Port |
|
X-Net / Remote / sACN Network Port |
100/1000 Ethernet Port |
|
Power |
|
|
Power Supply |
AC Mains Power to 12 VDC |
|
Input Voltage |
100-240 VAC, 50/60 Hz |
|
Maximum Current |
3 A |
|
Power Output |
1 x 12 VDC, 11 A |
|
Maximum Power Consumption |
132 W |
|
Physical |
|
|
Dimensions (W × D × H) |
11.9 x 21.3 x 3.9" / 300 x 540 x 99 mm |
|
Weight |
10.2 lb / 4.6 kg |
