Key Specifications

Speaker Type

Active Loudspeaker / Stage Monitor

Configuration

2-Way Bass-Reflex

Total Output Power

2100 W Peak

Amplifier Power Rating

LF: 1400 W Peak / MF-HF: 700 W Peak

Amplifier Class

Class-D

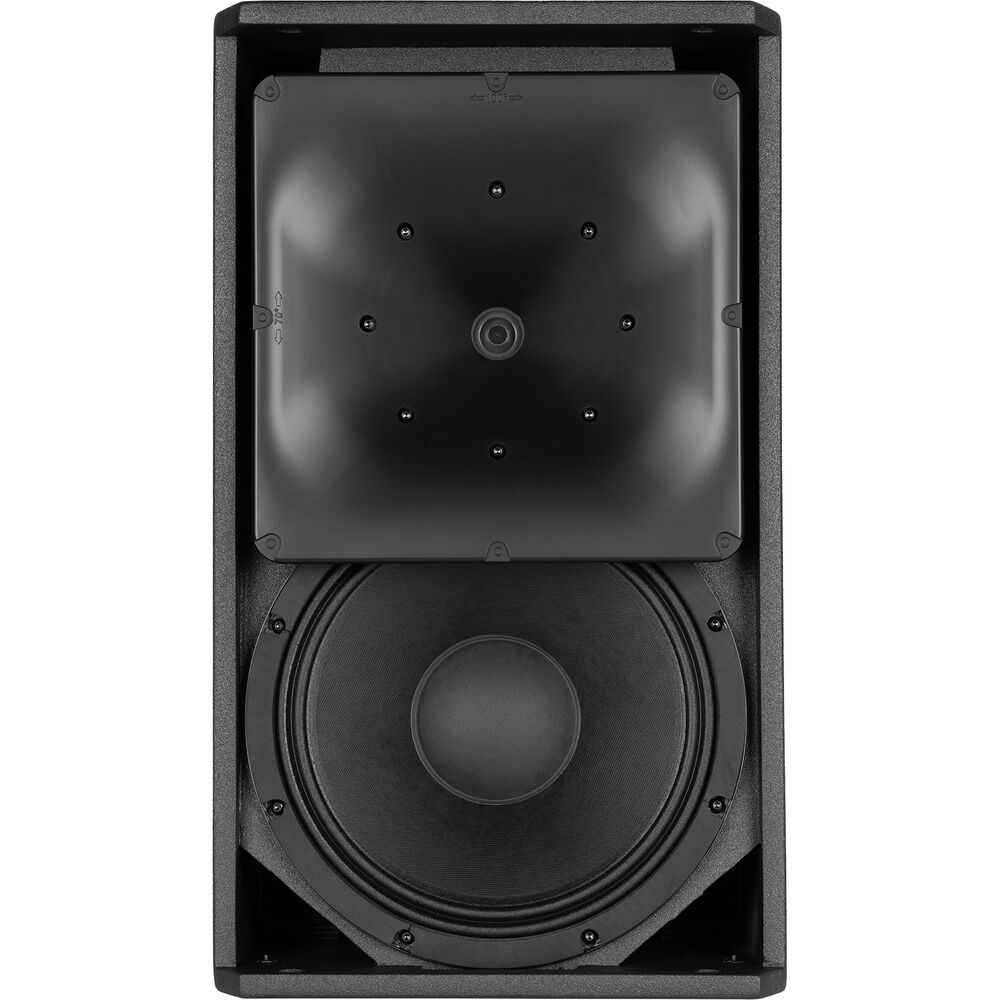

Transducers / Drivers

LF Driver

12" Woofer, 2.5" Voice Coil (Neodymium)

HF Driver

1.4" Compression Driver, 3" Voice Coil (Neodymium)

Diaphragm Material

Polyimide

Performance Data

Frequency Range/Response

45 Hz to 20 kHz

Maximum SPL

132 dB (Peak)

Coverage Angle

100° H x 70° V

Crossover Frequency

700 Hz

Digital Signal Processing

FIR Filter (FiRPHASE), Venue Settings

Protections

RMS, Signal Limiter, Thermal, Soft Limiter

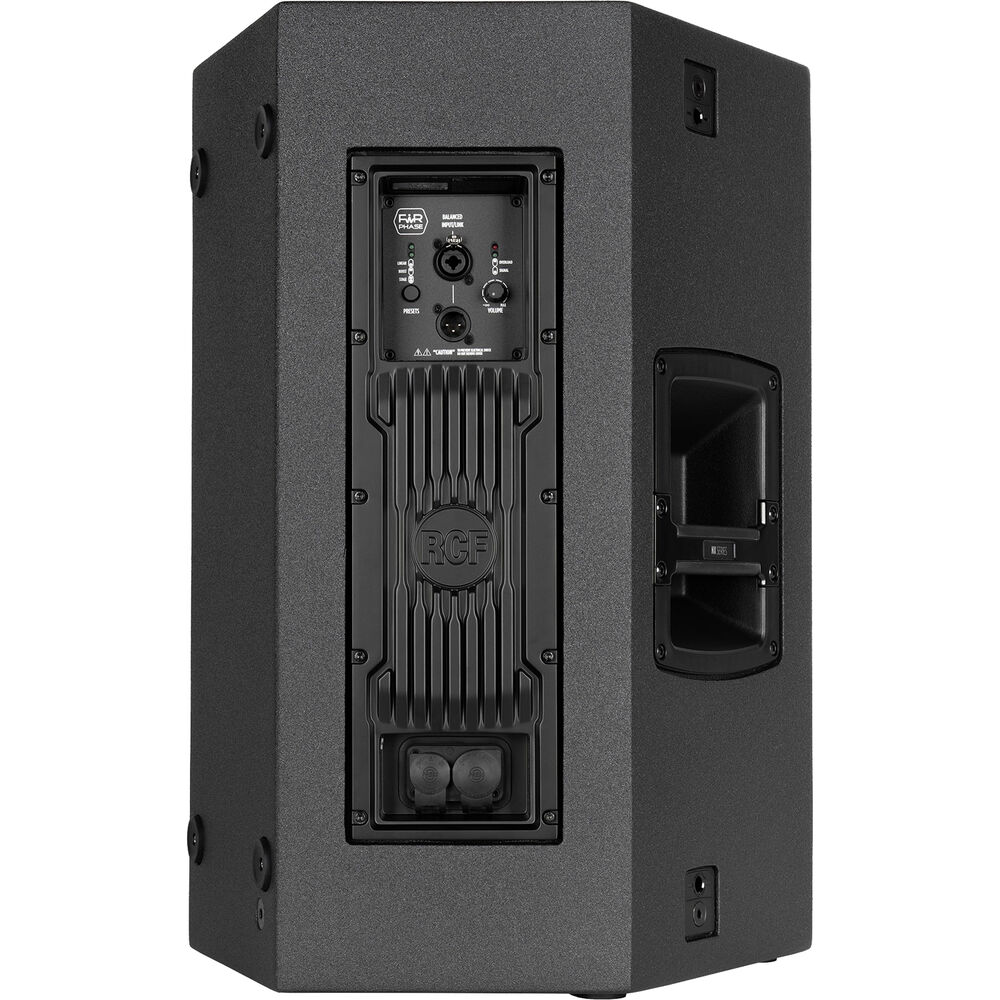

Connectivity & Power

Audio Inputs

1x Combo XLR-1/4" TRS Input

Audio Outputs

1x XLR 3-Pin Thru/Output

AC Input Power

100 to 120 VAC, 60 Hz

AC Power I/O

1x powerCON TRUE1 In / 1x powerCON TRUE1 Out

Power Consumption

300 W

Physical Specifications

Construction Material

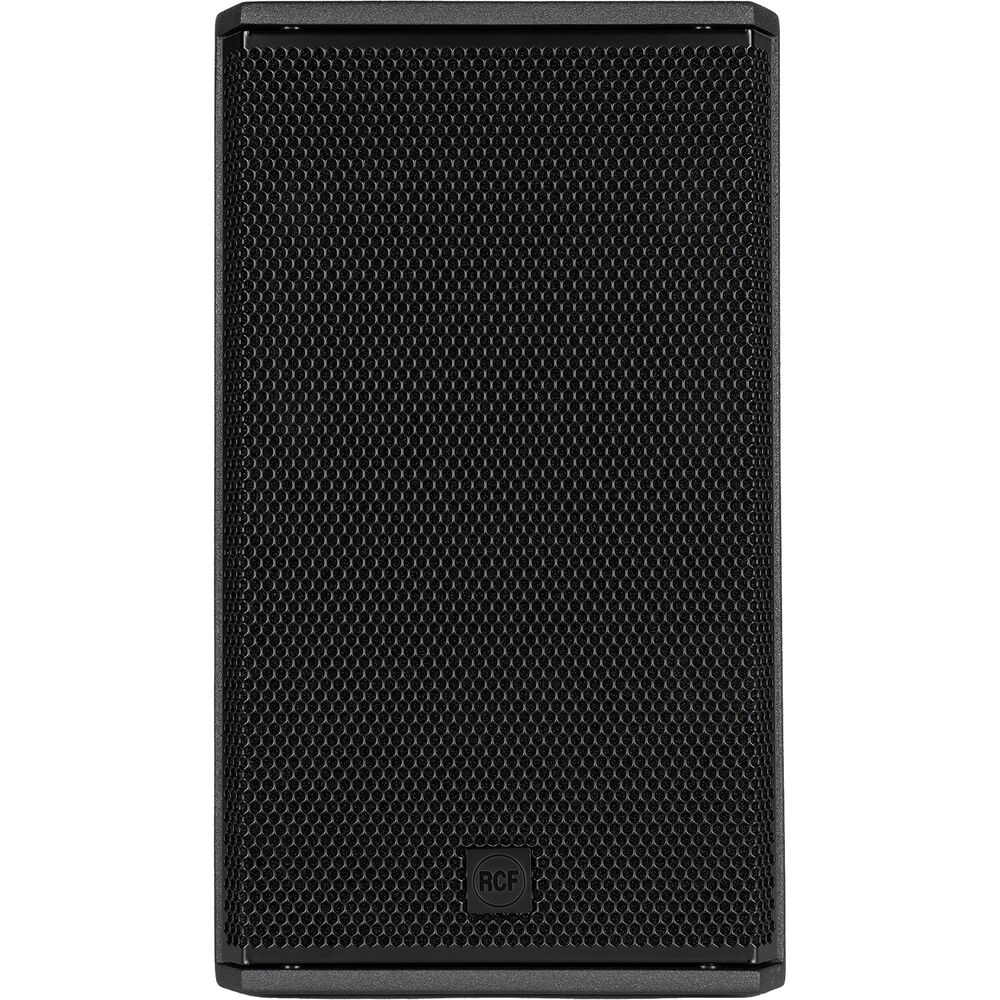

Plywood with Stainless Steel Grille

Mounting / Suspension

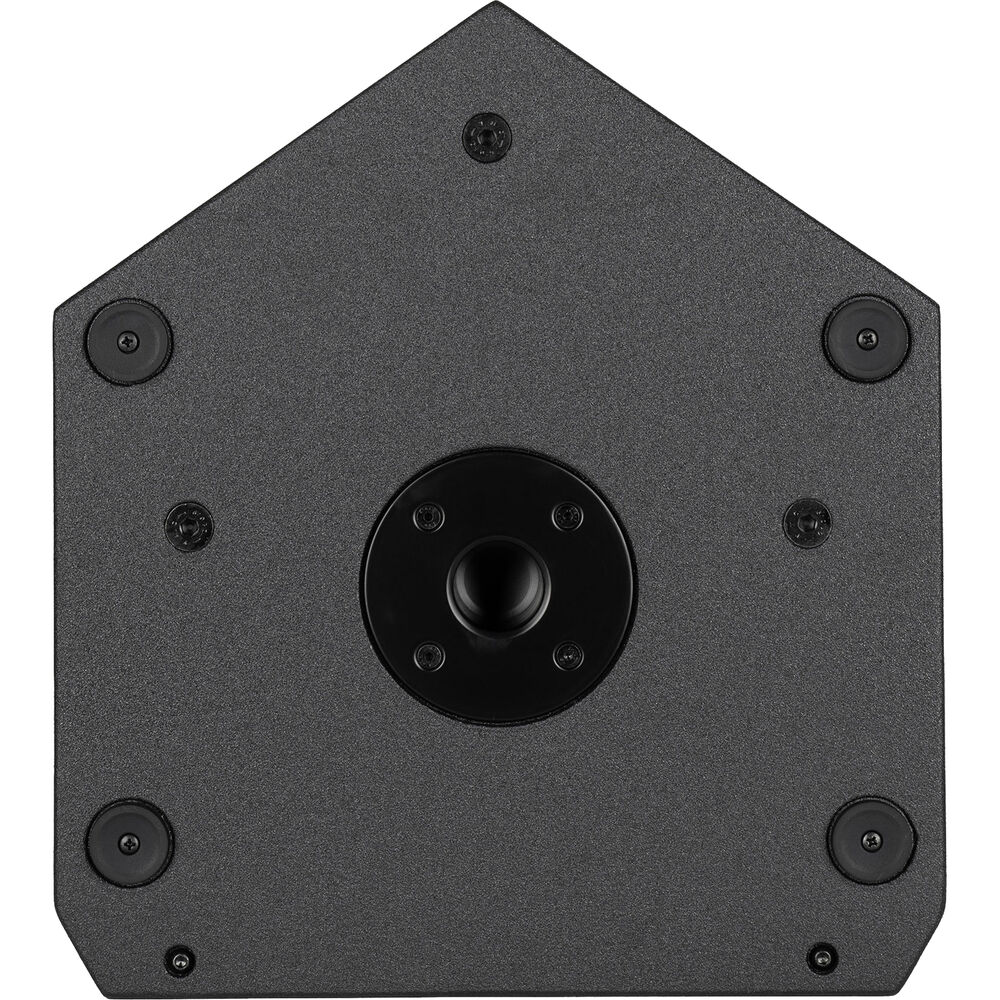

Pole Socket, 2x Top M10, 2x Side M10, 1x Rear M10

Dimensions (H x W x D)

24.4 x 15.9 x 14.3" / 619.8 x 403.9 x 363.2 mm

Net Weight

50.5 lb / 22.9 kg

Package Weight / Box Size

57 lb / 27 x 18 x 16"
